OVERVIEW
- bimetallic thermomanometer for simultaneous measurement of pressure and temperature
- pressure measurement ranges up to 0…16 bar, temperature up to 0...150°C
- housing diameter: 63 or 80 mm
-
Application: heating systems, dual-function boilers with hot water and heating
DESCRIPTION
The bimetal thermomanometer is mounted directly at the measuring point via a sensor. The valve allows the measuring device to be unscrewed without having to drain the heating system first. Due to the combination of a manometer and a bimetal thermometer, the device can be used flexibly in a wide range of applications.
General Specifications
| Design |
EN837-1
|
| Measurement range |
0...1 bar to 0...16 bar
0...120°C to 0...150°C
|
| Process connection |
R 1/2 ISO 7
|
| Housing dimensions |
Ø63mm
Ø80mm
|
| Measuring element |
Bourdon tube type "C", copper alloy
temperature: bimetal coil, copper alloy
|
| Accuracy |
±2.5%
|
| Filling |
lack
|
| Housing material |
plastic
steel
|
| Installation |

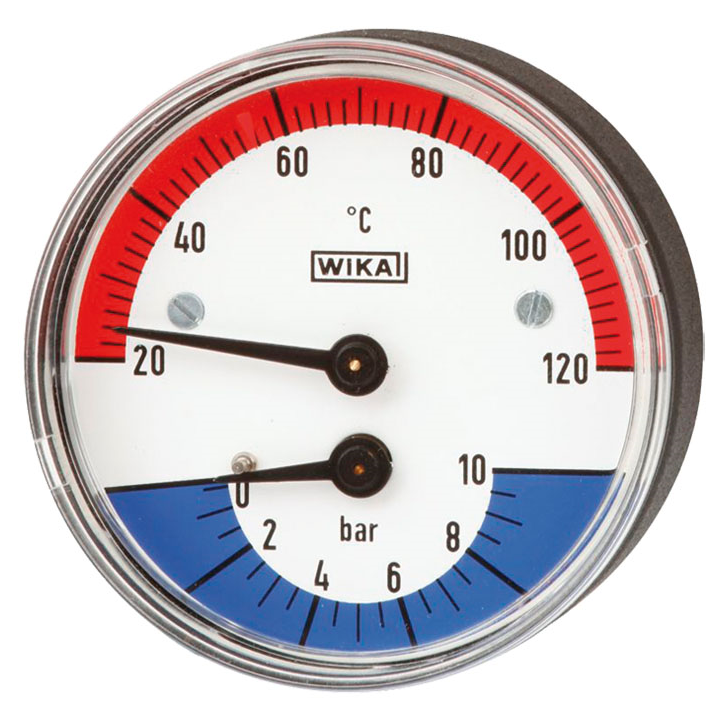

rear central connection

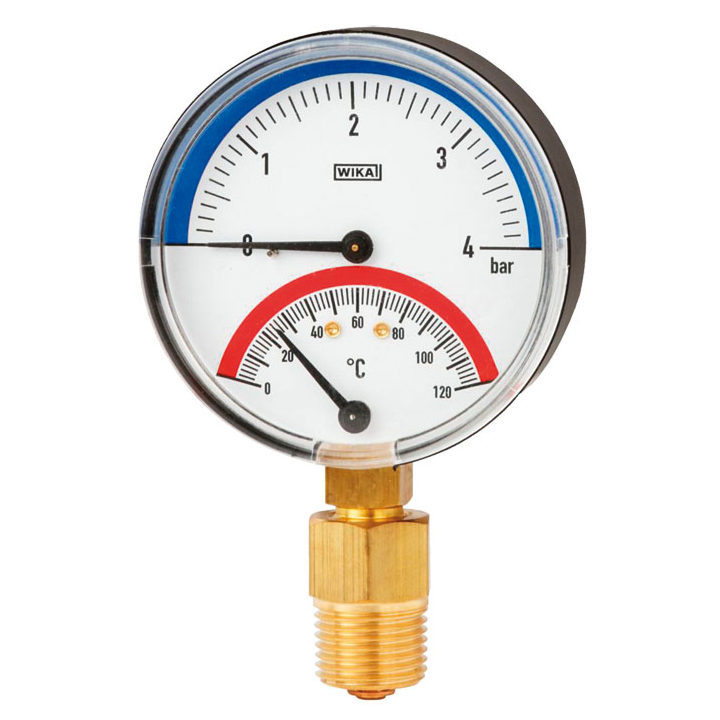

bottom connection
|
