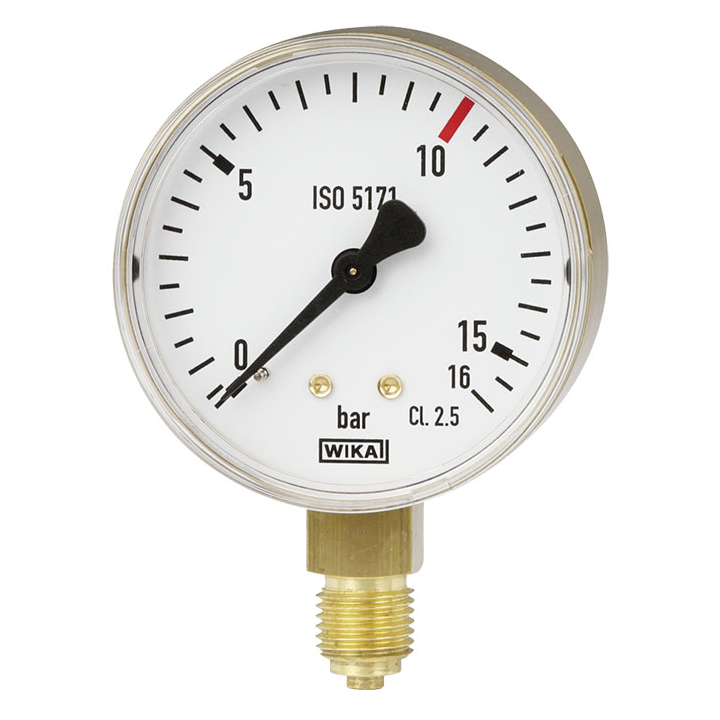

OVERVIEW
- pressure gauges for use in welding machines and welding-related processes
- construction according to ISO 5171
- housing diameter: 50 or 63 mm
- safe execution
- pressure vent on the back of the housing
-
solid and economical
General Specifications
| Design |
ISO5171
|
| Measurement range |
0...1 bar to 0...400 bar
|
| Process connection |
G1/4B
|
| Housing dimensions |
Ø63mm
Ø50mm
|
| Measuring element |
Bourdon tube type "C", copper alloy
helical type bourdon tube, copper alloy
|
| Accuracy |
±2.5%
|
| Filling |
lack
|
| Operating temperature |
-20...+60°C
|
| Medium temperature |
max. 60°C
|
| Housing material |
powder coated steel
|
| Installation |
bottom connection
|
