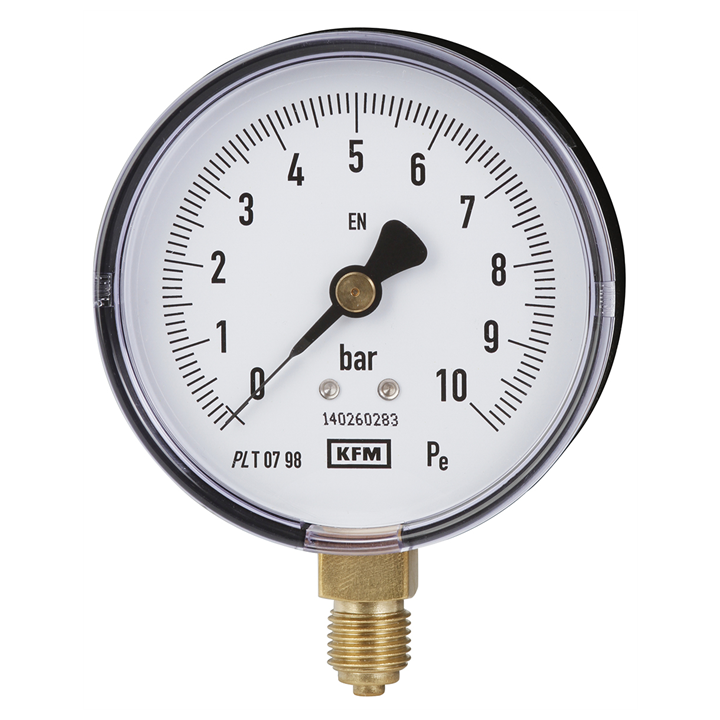

OVERVIEW
- construction according to EN 12645
- housing diameter: 63 or 80 mm
- measuring ranges 0...4 bar, 0...10 bar, 0...12 bar
- certificate of legalization
- for use in pumping systems to monitor tire pressure when inflating motor vehicle tires
-
petrol stations, car workshops, service stations
General Specifications
| Design |
EN 12645
|
| Measurement range |
0...4bar
0...10bar
0...12bar
|
| Process connection |
G1/4B
|
| Housing dimensions |
Ø63mm
Ø80mm
|
| Measuring element |
Bourdon tube type "C", copper alloy
|
| Accuracy |
±1.6%
±2.5%
±2.0%
|
| Filling |
lack
|
| Operating temperature |
-20...+60°C
|
| Medium temperature |
max. 40°C
|
| Degree of protection |
IP44
|
| Housing material |
plastic
steel
|
| Installation |
rear central connection
bottom connection
|
