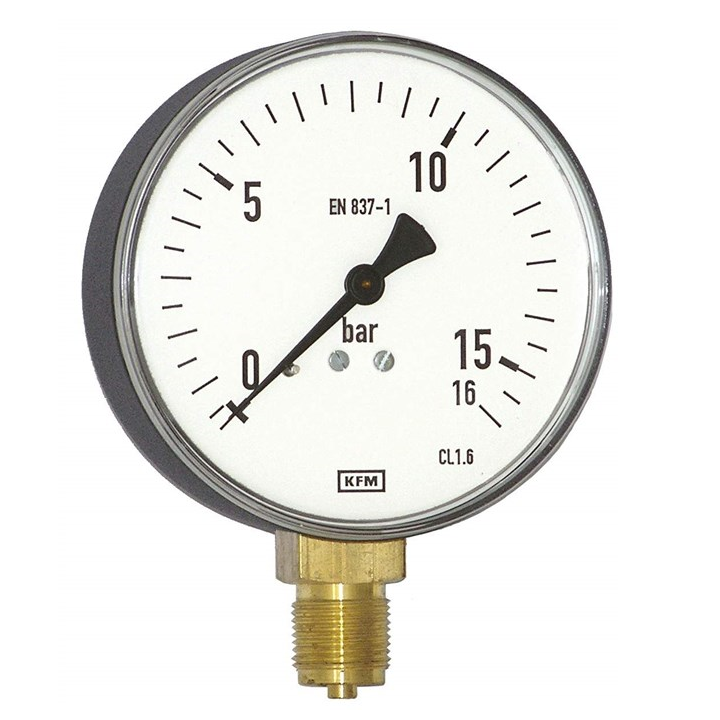

OVERVIEW
- construction according to EN 837-1
- housing diameter: 100 or 160 mm
- pressure gauges for measuring the pressure of liquids and gases that are neutral to copper alloys and do not cause blockages in pressure systems.
- for industrial applications in heating, gas, refrigeration and air conditioning
- increased durability
-
economical and reliable
General Specifications
| Design |
EN837-1
|
| Measurement range |
0...0.6 bar to 0...600 bar
|
| Process connection |
G1/2
G3/8
1/2 NPT
M20x1.5
|
| Housing dimensions |
Ø100mm
Ø160mm
|
| Measuring element |
Bourdon tube type "C", copper alloy
helical type bourdon tube, stainless steel
|
| Accuracy |
±1.6%
|
| Operating temperature |
-40...+60°C
|
| Medium temperature |
max. 60°C
|
| Degree of protection |
IP54
|
| Housing material |
powder coated steel
|
| Installation |
bottom connection
rear acentric connection
|
