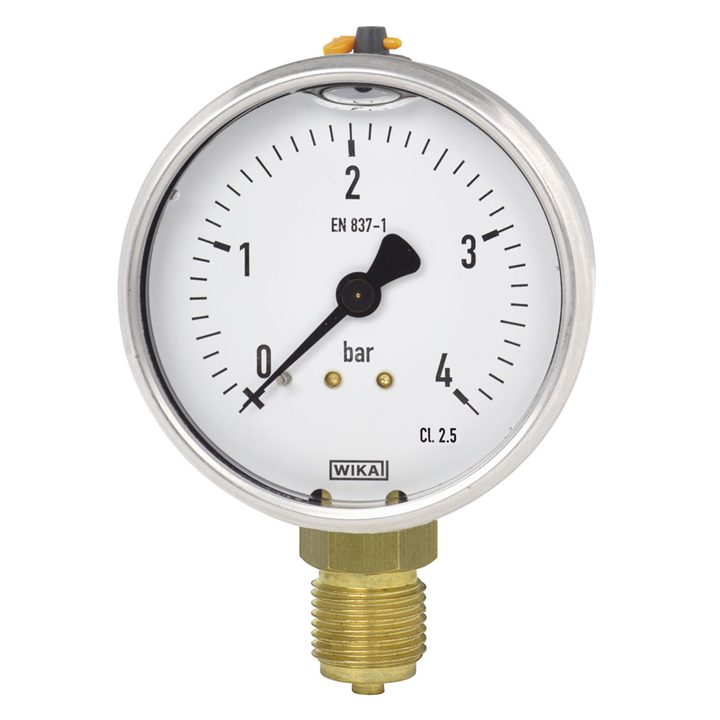

OVERVIEW
- construction according to EN 837-1
- housing diameter: 40, 80 or 100 mm
- measuring ranges up to 0...600 bar
- shock and vibration resistance
- stainless steel housing with liquid filling
- for measuring points with high dynamic loads or vibrations, capacitors, hydraulics
-
for gaseous and liquid media that are not very viscous and crystallising and do not react with the copper alloy
General Specifications
| Design |
EN837-1
|
| Measurement range |
0...1 bar to 0...600 bar
|
| Process connection |
G1/2B
G1/8B
|
| Housing dimensions |
Ø40mm
Ø80mm
Ø100mm
|
| Measuring element |
Bourdon tube type "C", copper alloy
helical type bourdon tube, copper alloy
|
| Accuracy |
±2.5%
|
| Filling |
glycerine
silicone oil
|
| Operating temperature |
-20...+60°C
|
| Medium temperature |
max. 60°C
|
| Degree of protection |
IP65
|
| Housing material |
stainless steel
|
| Installation |
rear central connection
bottom connection
|
