Airflow cones
For vane anemometers
Ref:
Si-K25 - Si-K85

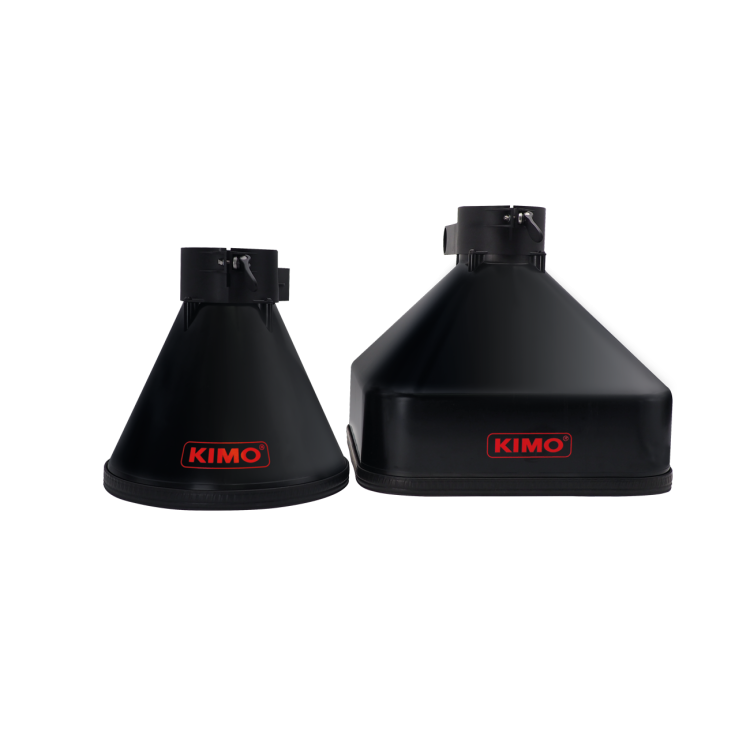

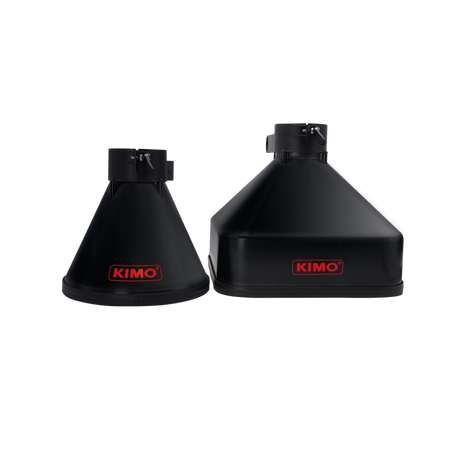

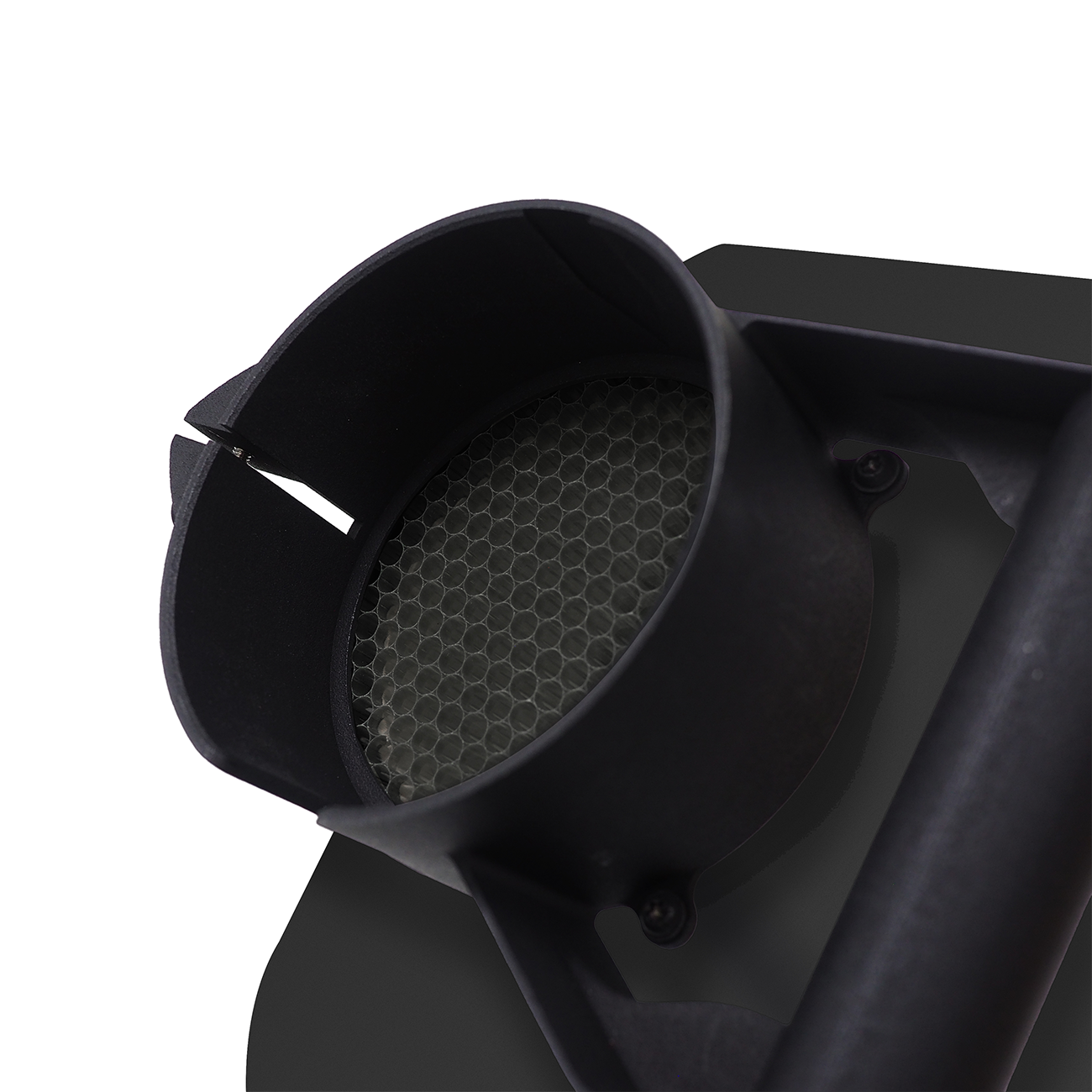

The Si-K25 and Si-K85 are airflow measurement cones designed for 100 mm diameter vane anemometers. These models feature a honeycomb-structured airflow straightener that reduces turbulence for more reliable flow measurement.
The Si-K25 and Si-K85 are perfectly suited to Kimo LV 110 and LV 130, VT 210, MP 210 and AMI 310 anemometers.

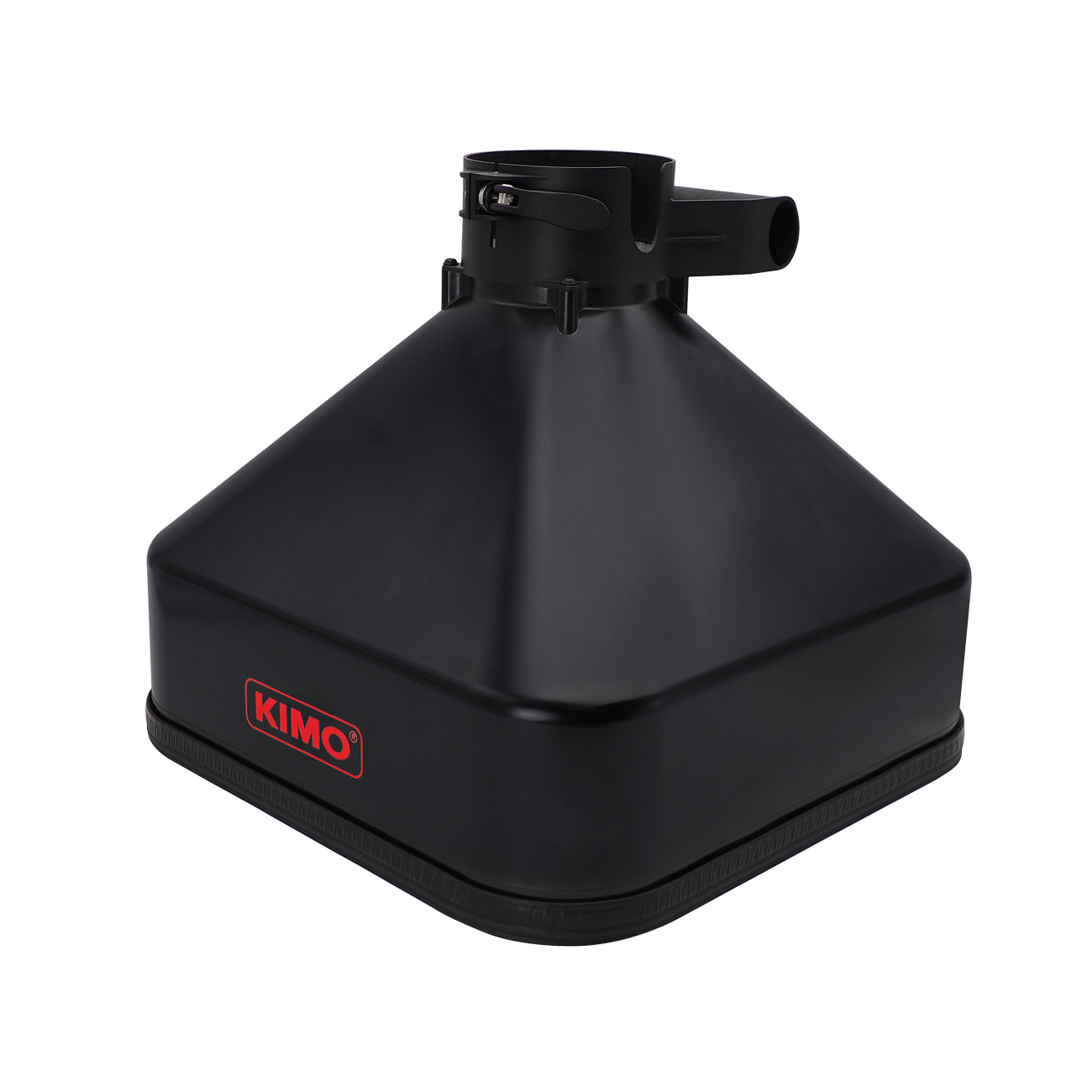

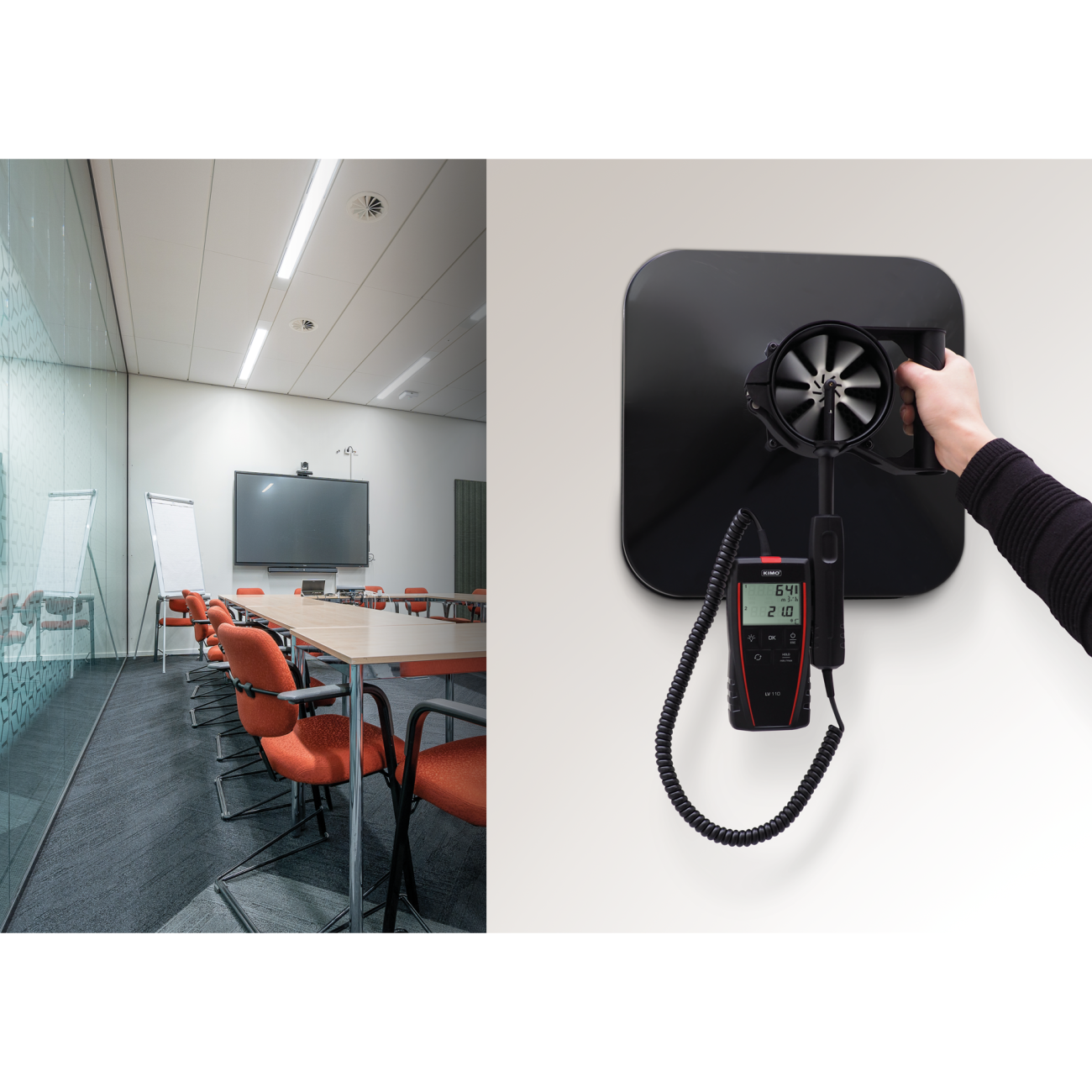

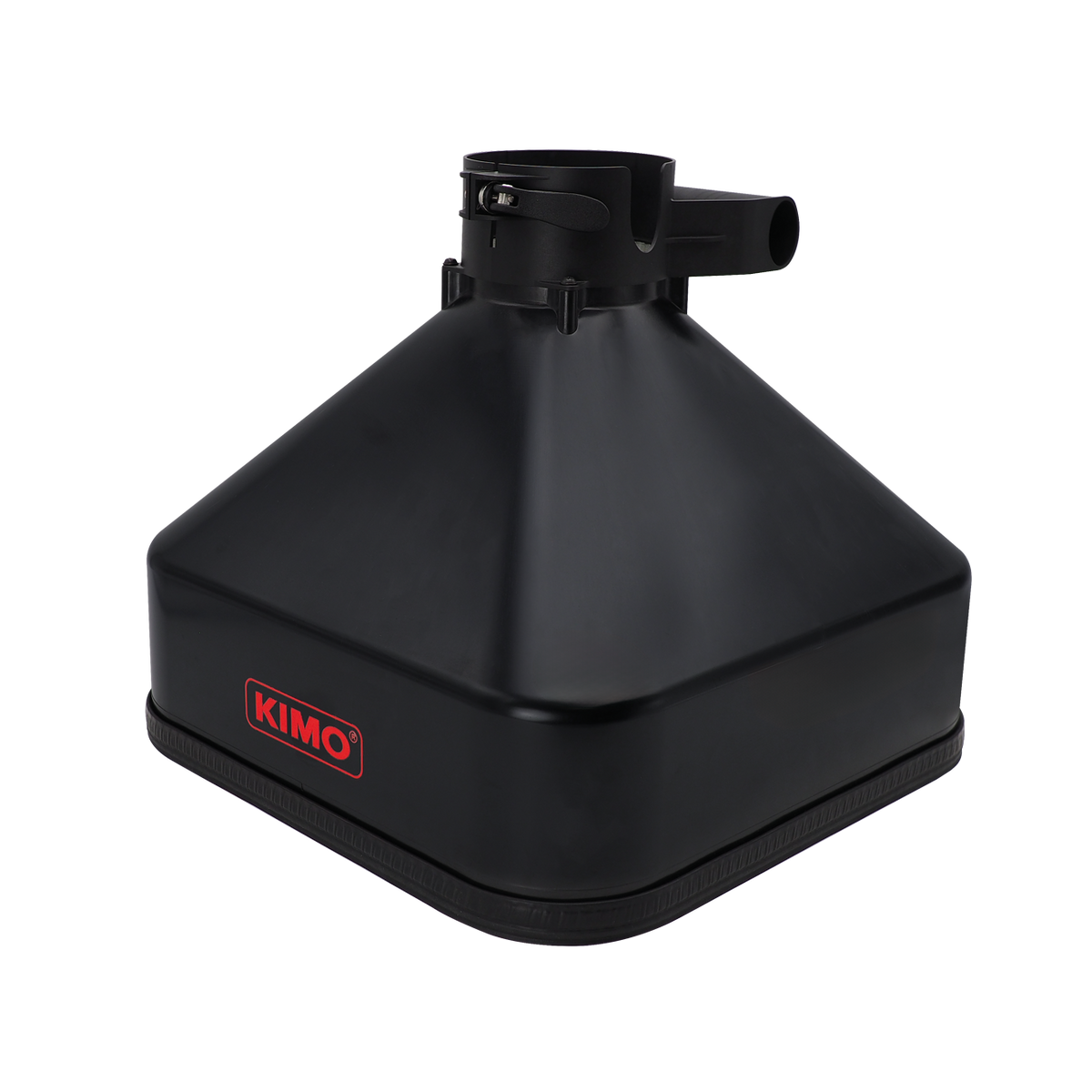

The Si-K85 square cone can be used with medium-sized air vents.

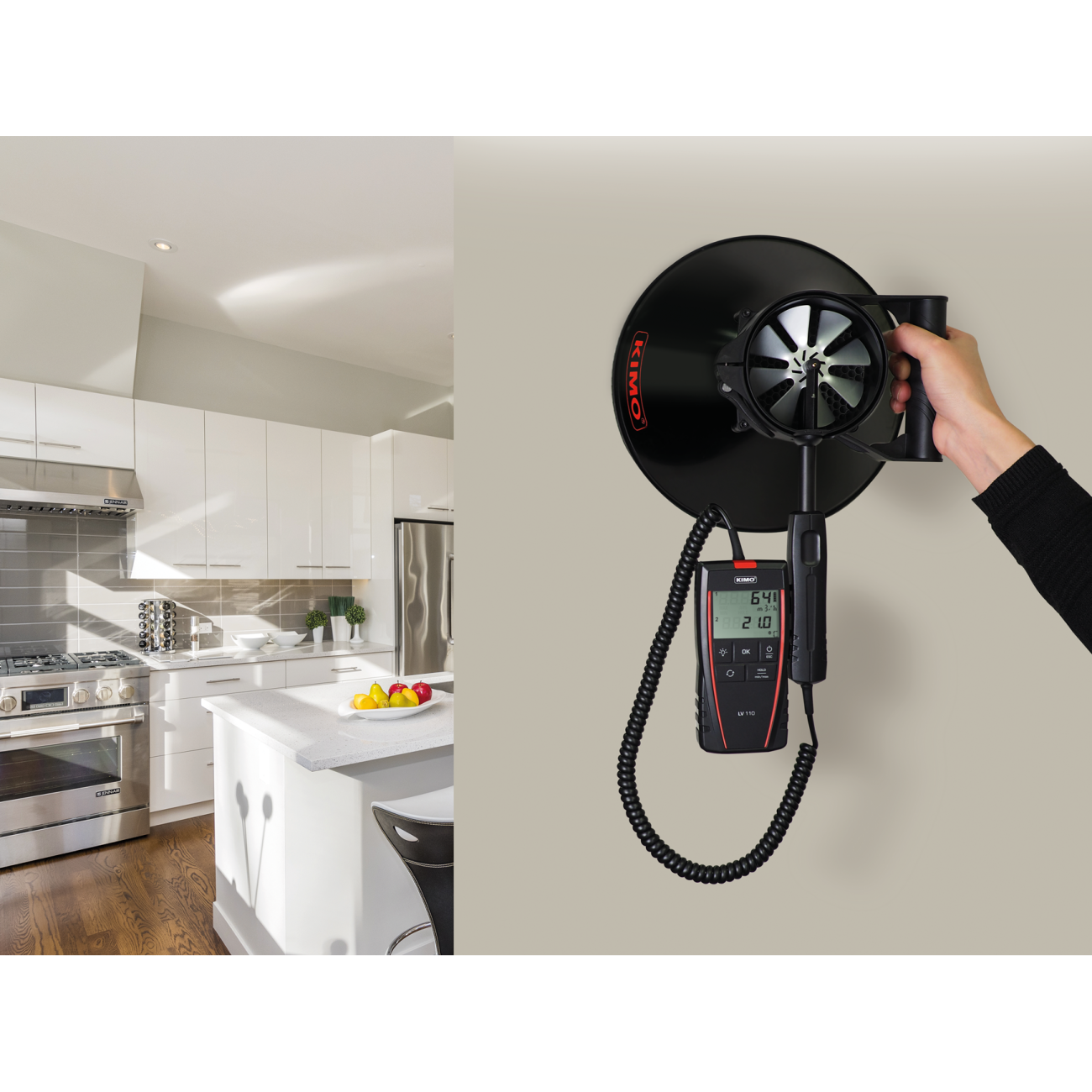

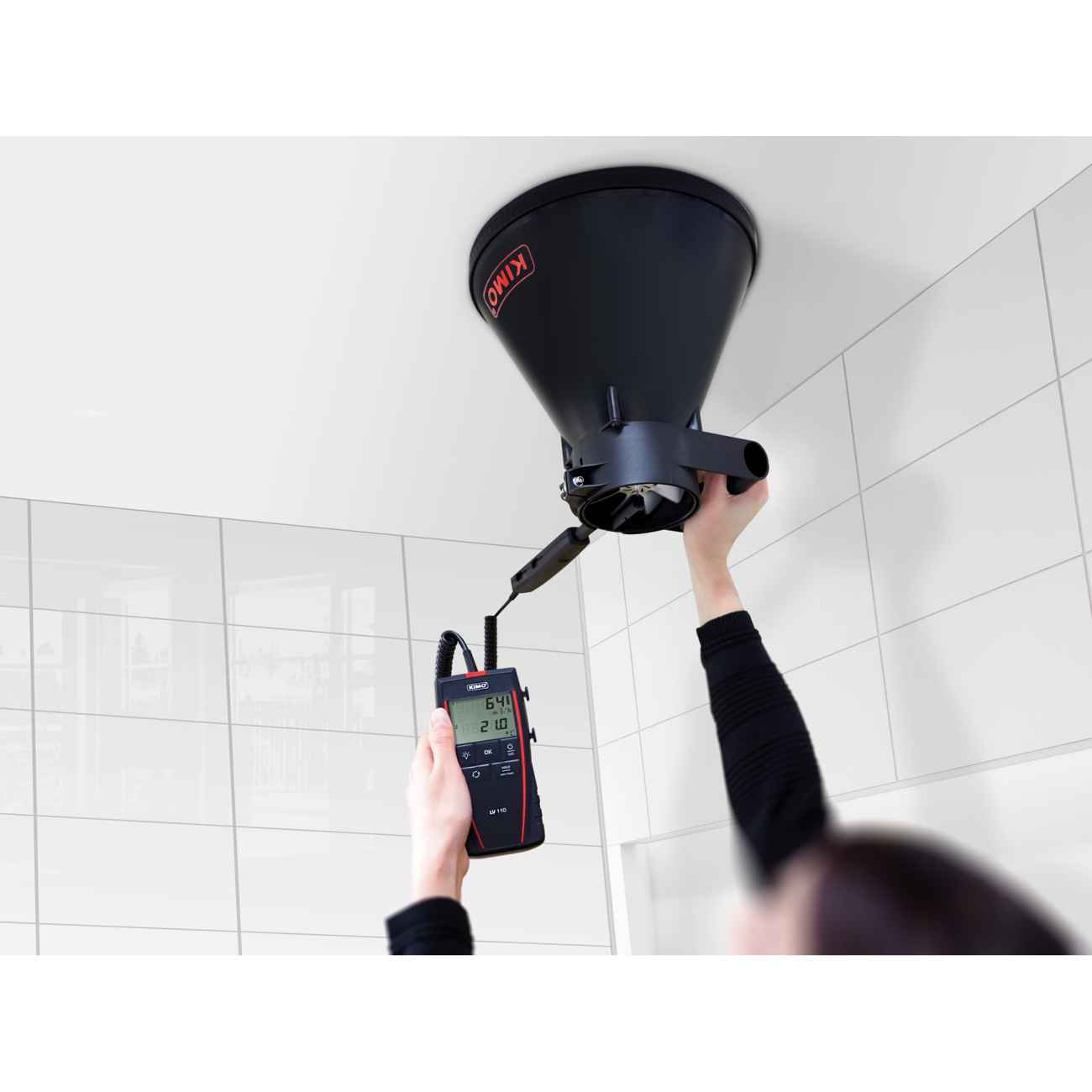

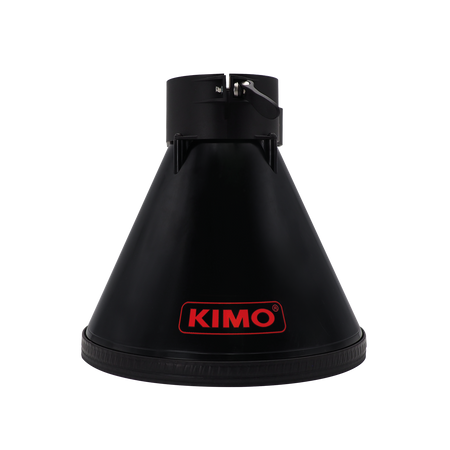

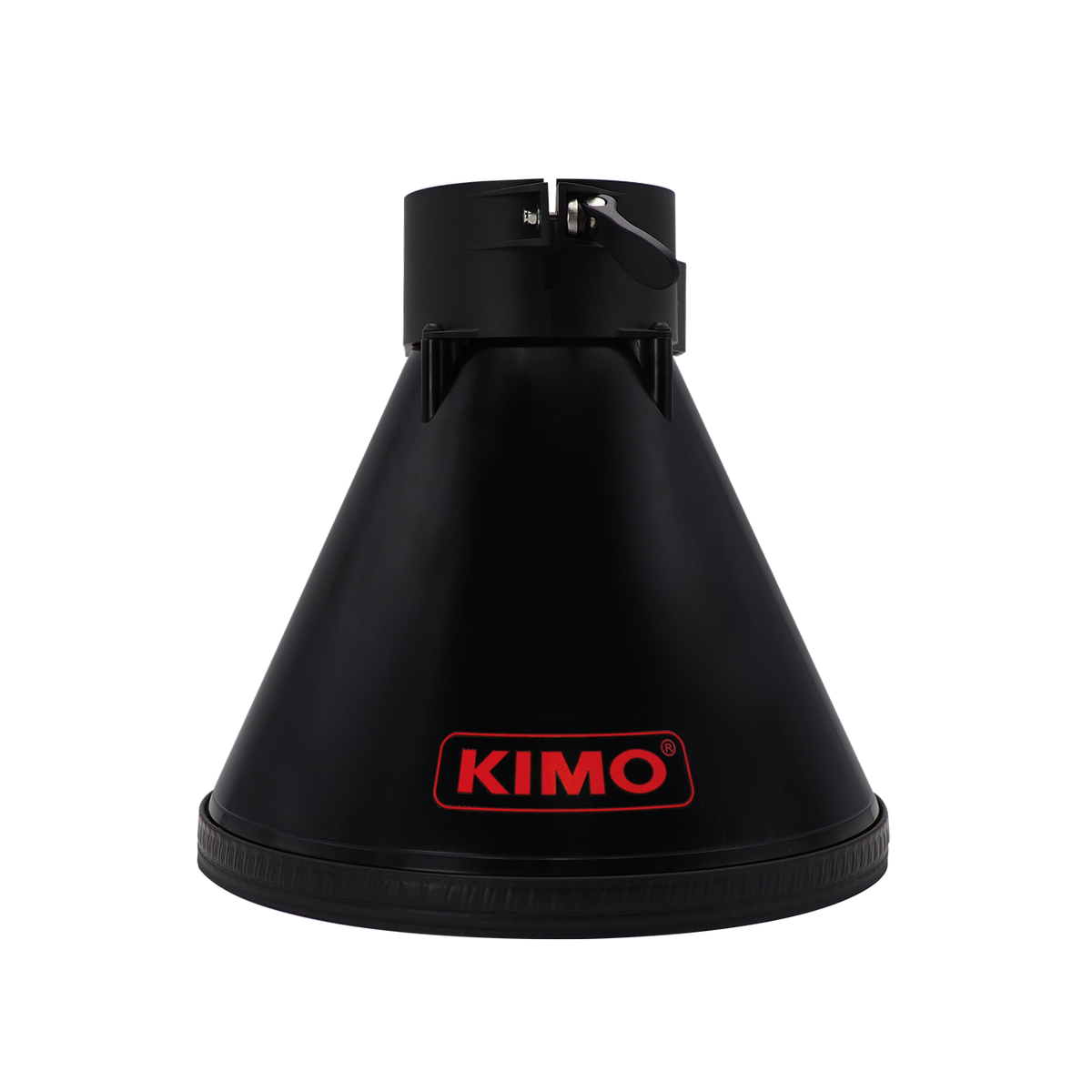

The Si-K25 round cone is designed for small and medium-sized round vents.
|
|
|
|
Designation |
Si-K25 (28111) |
Si-K85 (28112) |
Flow |
10 to 400 m3/h |
10 to 400 m3/h |
Internal dimensions |
Ø 260 mm |
350 x 350 mm |
External dimensions |
L 282 x W 282 x H 268 mm |
L 372 x W 372 x H 327 mm |
