Overview
- battery powered digital pressure gauge
- nominal pressure from 0...100 mbar up to 0...600 bar
- stainless steel sensor
- rotatable housing
- 2-line LC display 4.5-digit main display + 6-digit additional display
- hygienic process connections
- min / max function with reset function
- offset and end point calibration
- setting the pressure unit
- configuration of switch-off automatic
- preferred areas of use: food Industry, pharmacy
Description

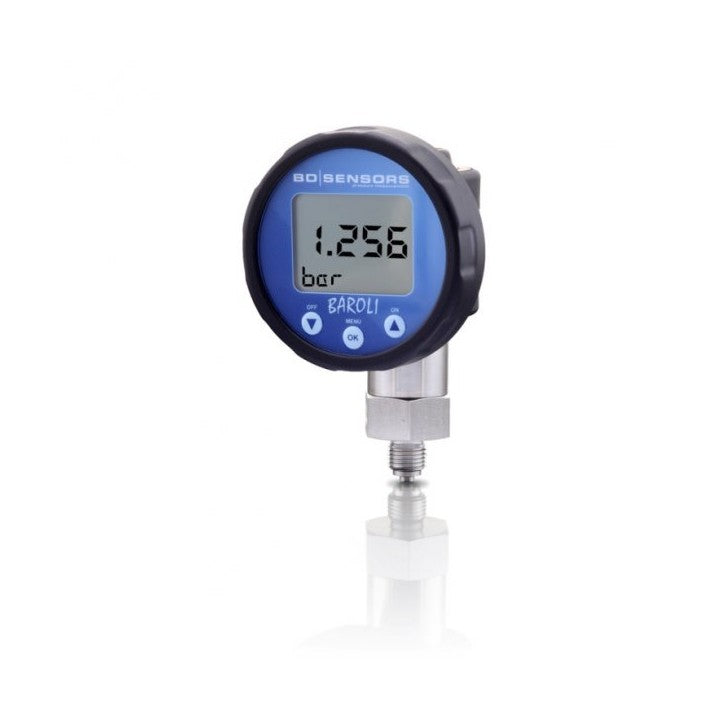

The battery-powered digital pressure gauge BAROLI 02 enables a local displaying of values, satisfying the highest demands for accuracy and long-term stability. The pressure gauge may be applied in all media compatible with the stainless steel used; it shows an excellent robustness and a high overpressure protection.
The BAROLI 02 display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions: changing the unit, displaying min / max values, calibrating of offset and the span, configuring the automatic switching-off
Specification
| Measurement range |
0...100 mbar up to 0...600 bar
|
| Process connection |
G 1/2 G 1/4 1/2 NPT 1/4 NPT M20x1,5 |
| Case dimensions |
Ø76,5 mm
|
| Diaphragm |
stainless steel 316L
|
| Power supply |
2 x 3.6V 1/2AA lithium battery
|
| Display |
LCD, 4,5 x 11 mm
LCD, 6 x 7,5 mm
|
| Accuracy |
±0,25%
±0,5%
|
| Filling fluids |
no filling
|
| Operating temperature |
-20...+70°C
|
| Medium temperature |
-20...+85°C
|
| Protection class |
IP 65
|
| Case material |
stainless steel
|
