Overview
- battery powered digital pressure gauge
- nominal pressure from 0...60 bar up to 0...400 bar
- stainless steel diaphragm flush welded
- rotatable housing
- 2-line LC display 4.5-digit main display + 6-digit additional display
- for viscous and pasty media
- min / max function with reset function
- offset and end point calibration
- setting the pressure unit
- configuration of switch-off automatic
- preferred areas of use: plant and machine engineering, food industry
Description

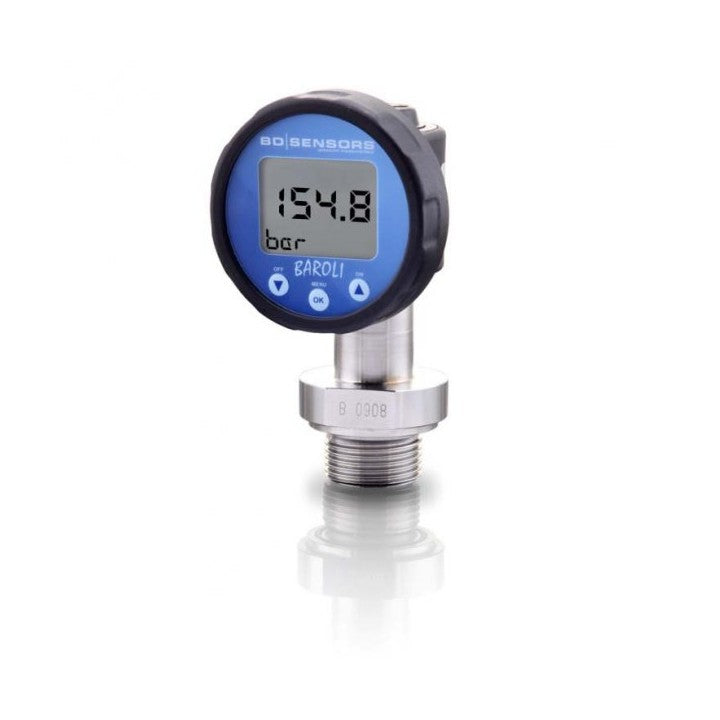

The battery-powered digital pressure gauge BAROLI 05P with flush welded stainless steel diaphragm enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or sterilisability are requested. The filling medium is food compatible oil with FDA approval.
The BAROLI 05P display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying min / max values, calibrating of offset and span, as well as configuring the automatic switching-off complete the profile.
Specification
| Measurement range |
0...60 bar up to 0...400 bar
|
| Process connection |
G 1/2
G 1
|
| Case dimensions |
Ø76,5 mm
|
| Diaphragm |
stainless steel 316L
|
| Power supply |
2 x 3.6V 1/2AA lithium battery
|
| Display |
LCD, 4,5 x 11 mm
LCD, 6 x 7,5 mm
|
| Accuracy |
±0,5%
|
| Filling fluids |
silicon oil
food compatible oil
|
| Operating temperature |
-20...+70°C
|
| Medium temperature |
-40...+125°C
-10...+125°C
|
| Protection class |
IP 65
|
| Case material |
stainless steel
|
