Overview
- battery powered digital pressure gauge
- nominal pressure from 0...100 mbar up to 0...40 bar
- stainless steel sensor
- rotatable housing
- 2-line LC display 4.5-digit main display + 6-digit additional display
- hygienic process connections
- min / max function with reset function
- offset and end point calibration
- setting the pressure unit
- configuration of switch-off automatic
- preferred areas of use: food industry, pharmacy
Description

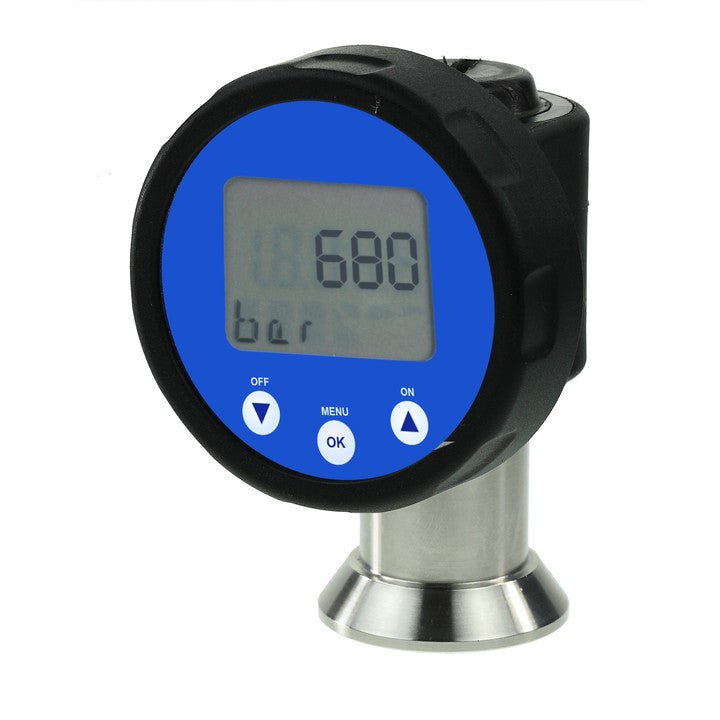

The battery-powered digital pressure gauge CCM-P-02P with flush welded stainless steel sensor enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or sterilisability are requested. The filling medium is food compatible oil with FDA approval.
The CCM-P-02P display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions: switching the unit, displaying min / max values, calibrating the offset and the end point, configuring the automatic switching-off.
Specification
| Measurement range |
0...100 mbar up to 0...40 bar
-1...0 bar
|
| Process connection |
G 1/2
G 1
clamp
dairy pipe
|
| Case dimensions |
Ø76,5 mm
|
| Diaphragm |
stainless steel 316L
|
| Power supply |
2 x 3.6V 1/2AA lithium battery
|
| Display |
LCD, 4,5 x 11 mm
LCD, 6 x 7,5 mm
|
| Accuracy |
±0,25%
±0,5%
|
| Filling fluids |
silicon oil
food compatible oil
|
| Operating temperature |
-20...+70°C
|
| Medium temperature |
-40...+125°C
-10...+125°C
|
| Protection class |
IP 65
|
| Case material |
stainless steel
|
