GENERAL FEATURES
Intelligent junction boxes with backlit LCD display, 38x16 mm, two-line by eight-digit (5 mm height). Four-key keypad for the system calibration. Lightning and electrical shock protection device.
The CLM8 series offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.- Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- OIML R76:2006 approved, class III, 3x5000 divis. 0.4μV/VSI
Available versions:

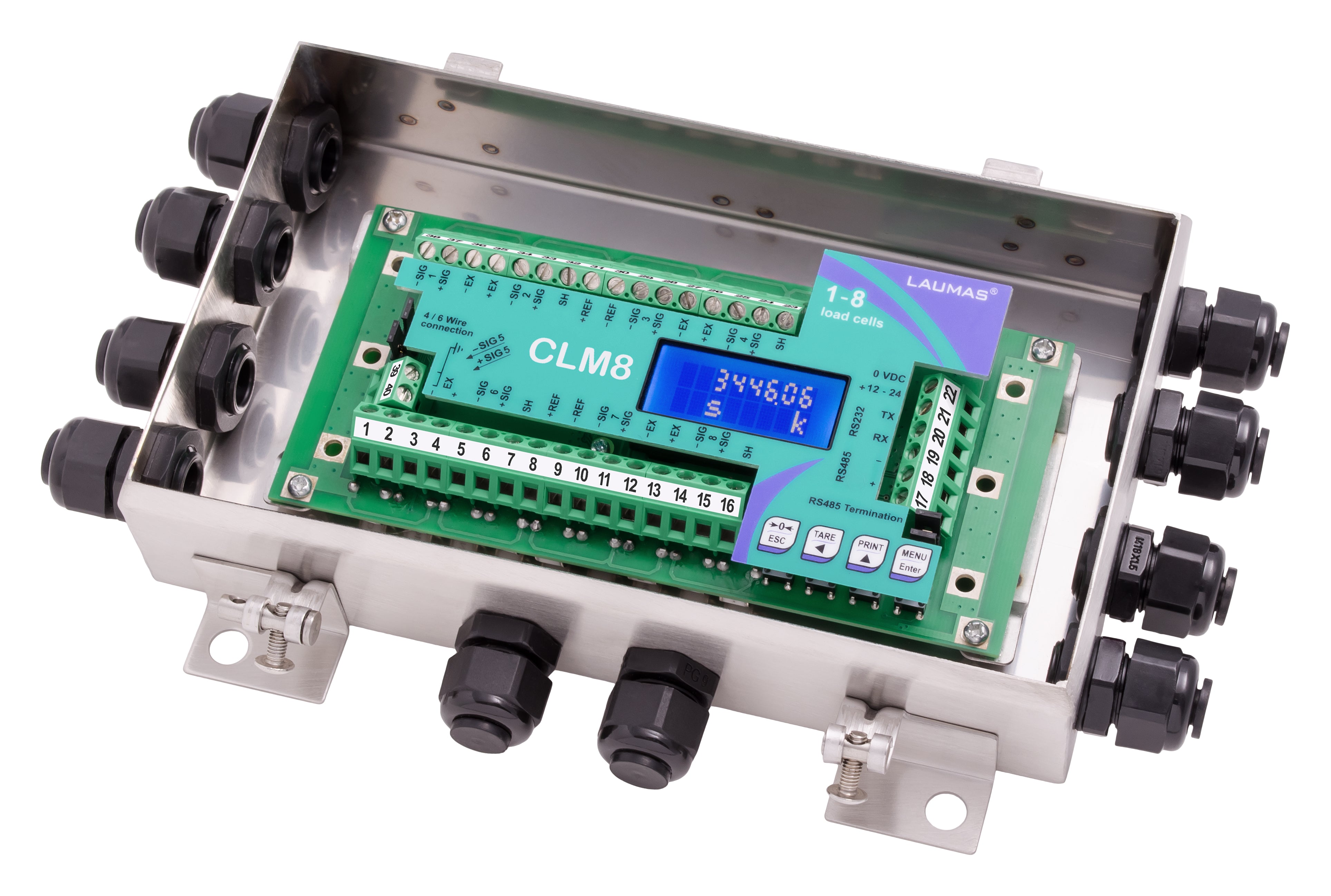

- IP67 stainless steel box: 200x148x45 mm; 8+2 cable glands - plugs.

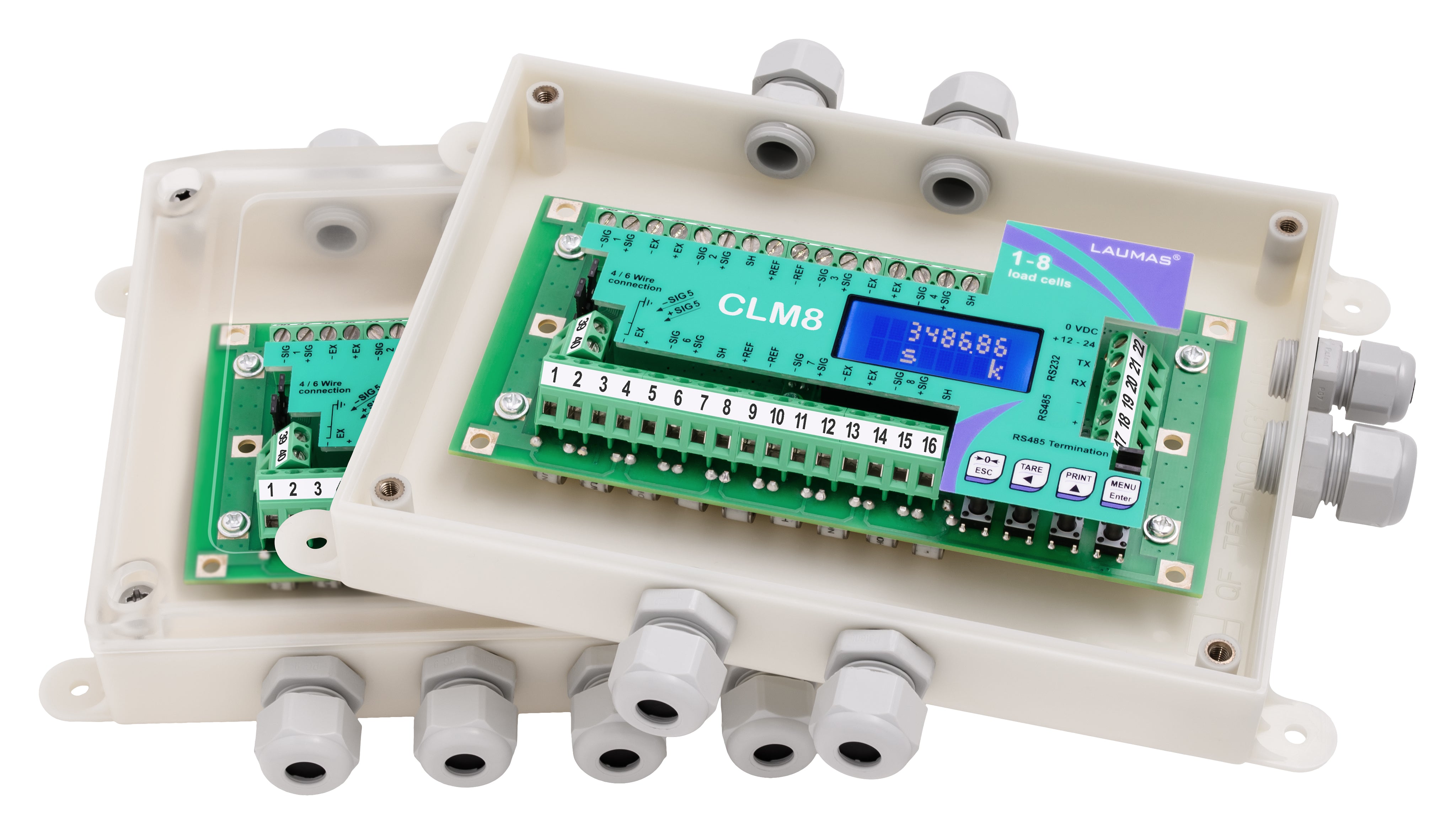

- IP67 ABS box: 210x130x40 mm; 4/8+3 cable glands - plugs, 4/8+2 PVC end fittings.

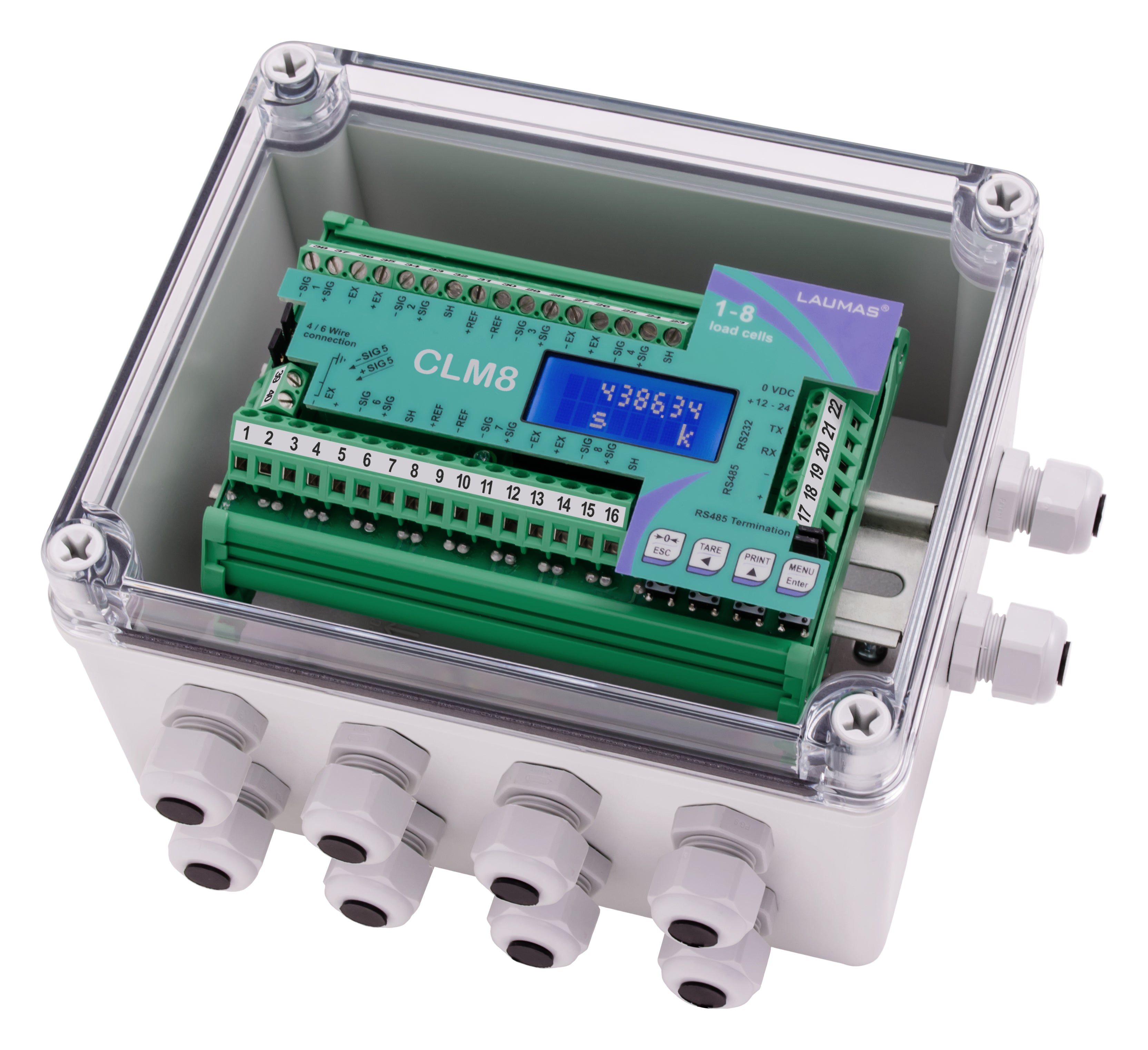

- IP67 polycarbonate box: 170x140x95 mm; 4/8+2 cable glands – plugs, 4+2 PVC end fittings.

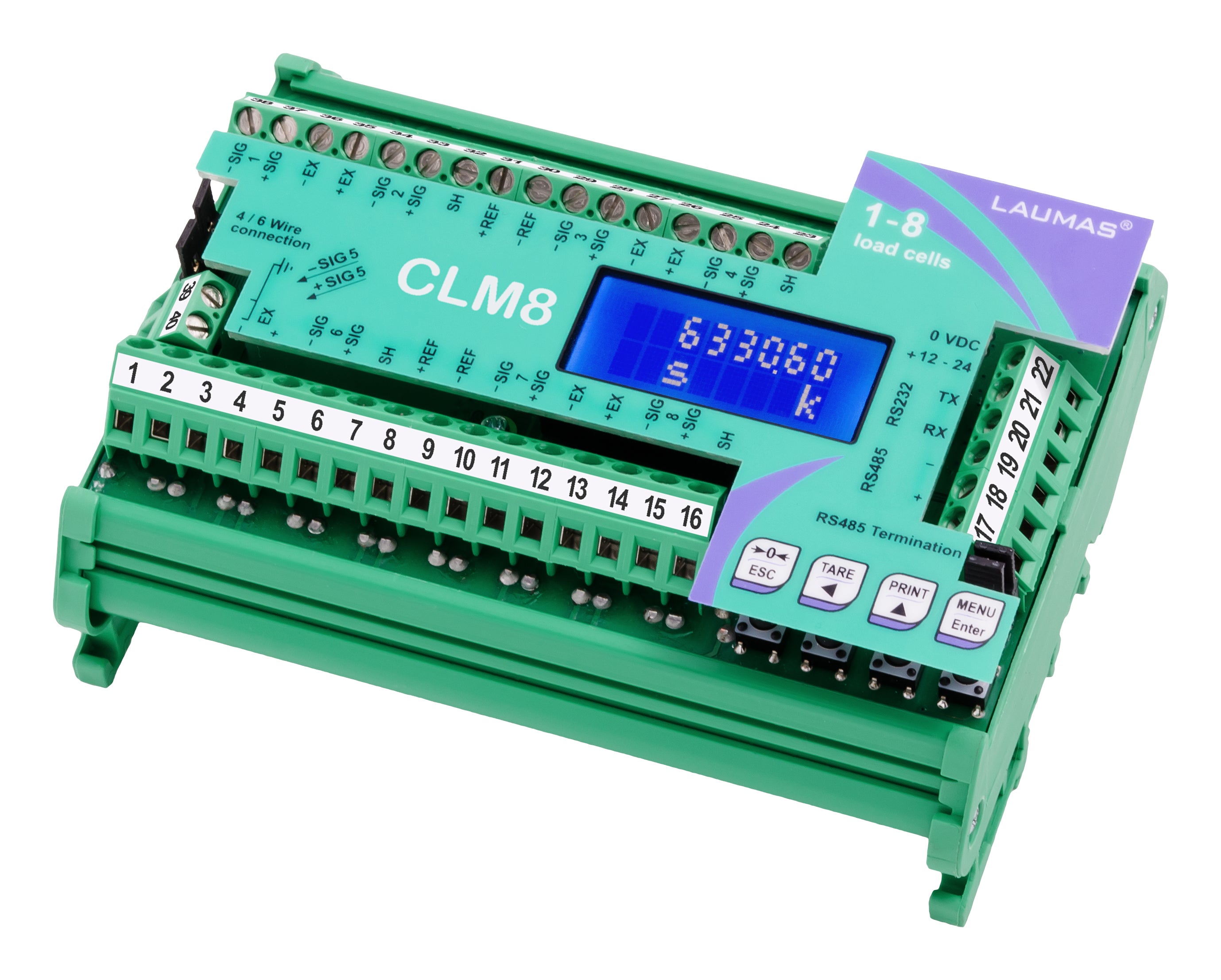

- Omega/DIN rail mounting version: 125x92x52 mm.

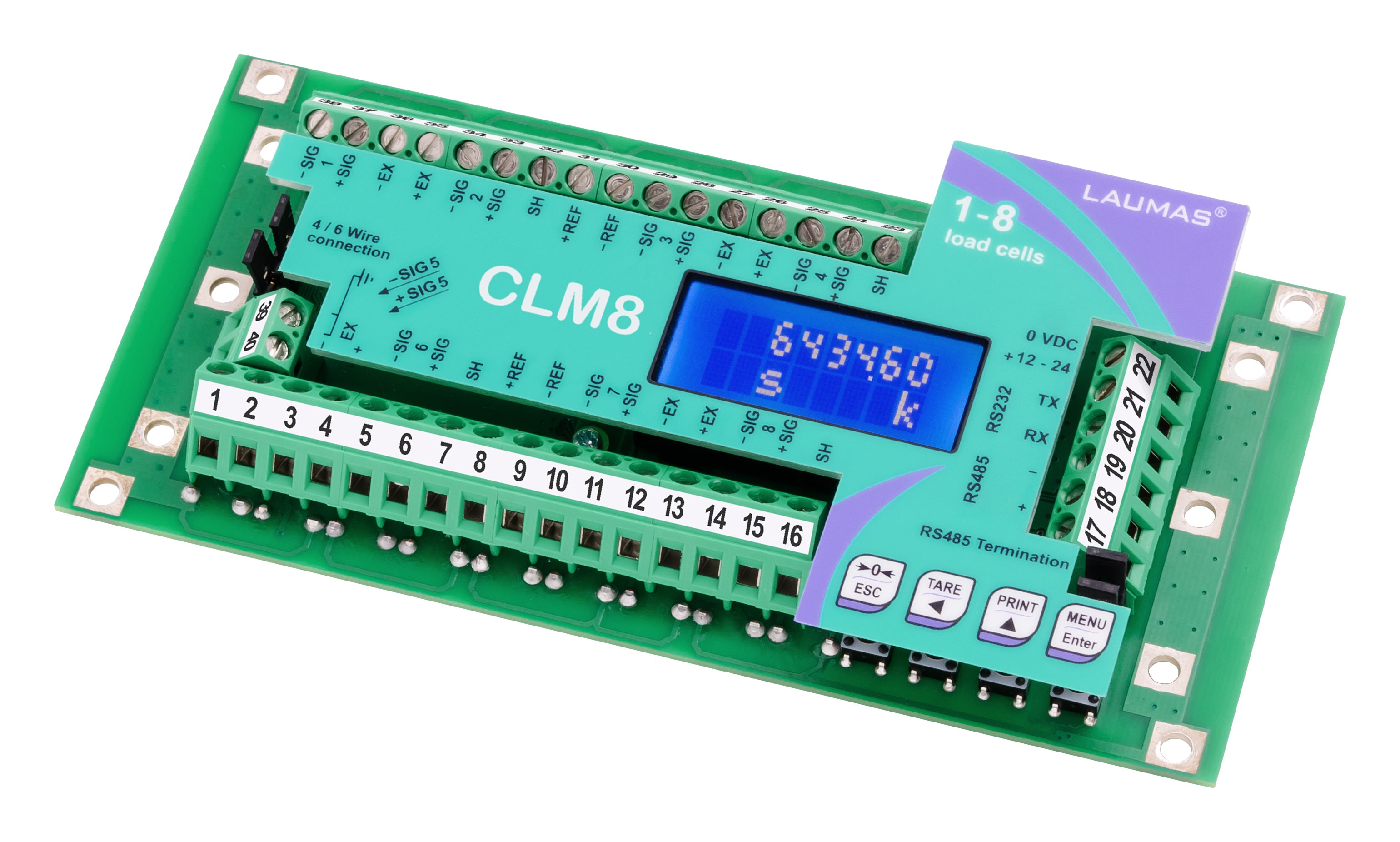

- Board only: 151x72x30 mm.
Display range 999999
Files
Manuals available on request
CLM8 manual CLM8 CE-M approved legal for trade - installer manual CLM8 CE-M approved legal for trade - user manual
