Description

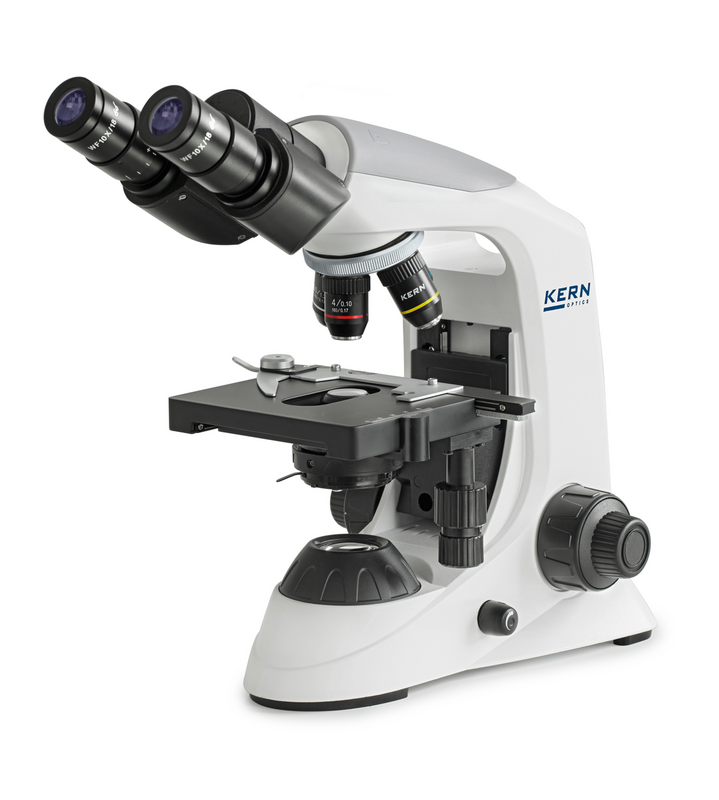

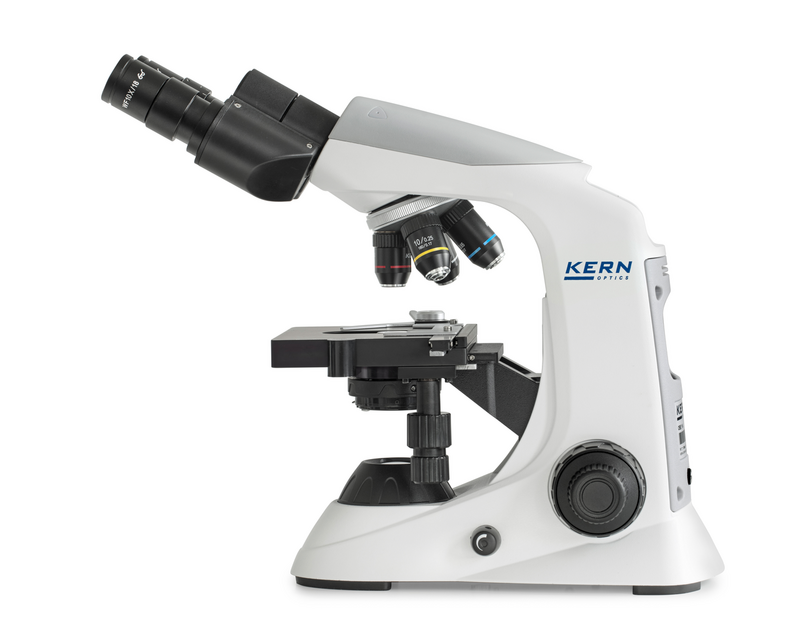

- The KERN OBE 132 stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank
- The impressive, infinitely dimmable 3W LED guarantees bright illumination of your sample

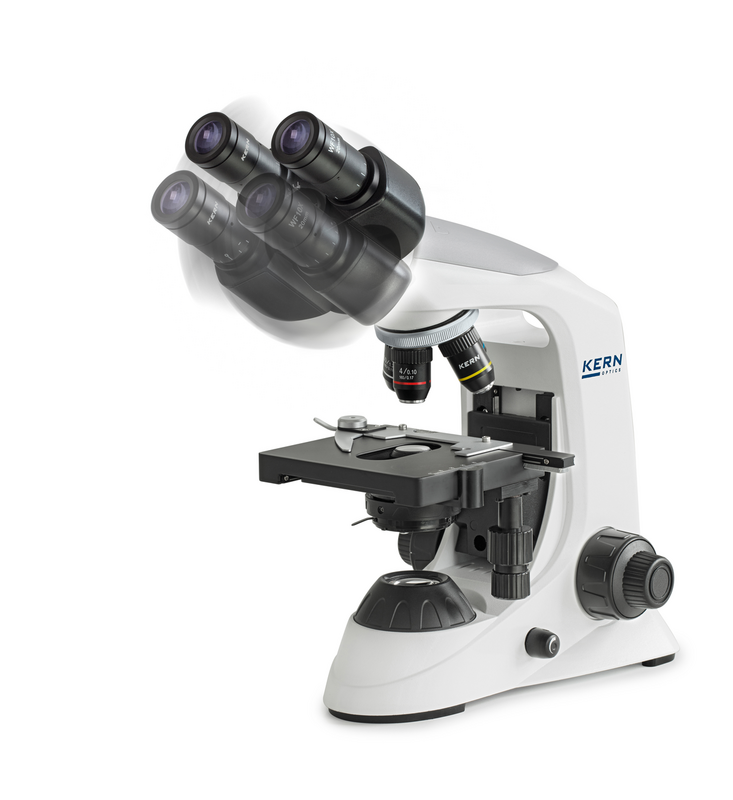

- A further highlight is the butterfly lens barrel which enables you to achieve the ideal viewing angle and is integrated as standard on all binocular and trinocular models. The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
- Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on bothsides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
- A large selection of different eyepieces and objectives are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Technical Data
| Optical system | Finite |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 18 mm |
| Standard objectives | 4×, 10×, 40×, 100× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 4 |
| Illuminance | Transmitted light |
| Illumination intensity transmitted light | 3 W |
| Illumination type transmitted light | LED |
| Illumination type incident light | none |
| Condensor type | Abbe |
| Kondensor-Apertur | 1,25 |
| Kondensor-Montage | fixed |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,002 mm |
| Dimension (W×D×H) | 360×150×320 mm |
| GTIN/EAN number | 4045761236004 |
Data sheet OBE 132
