Description

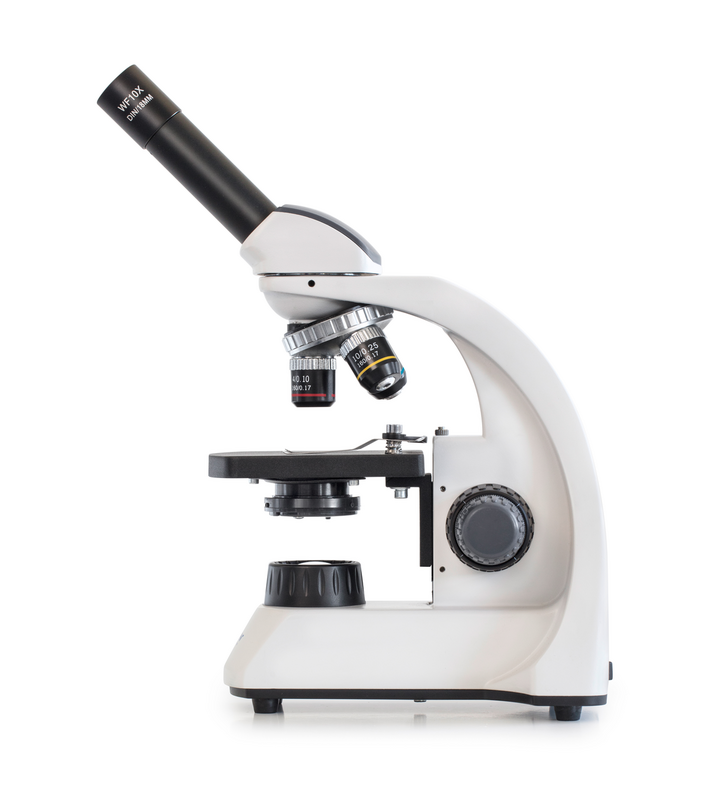

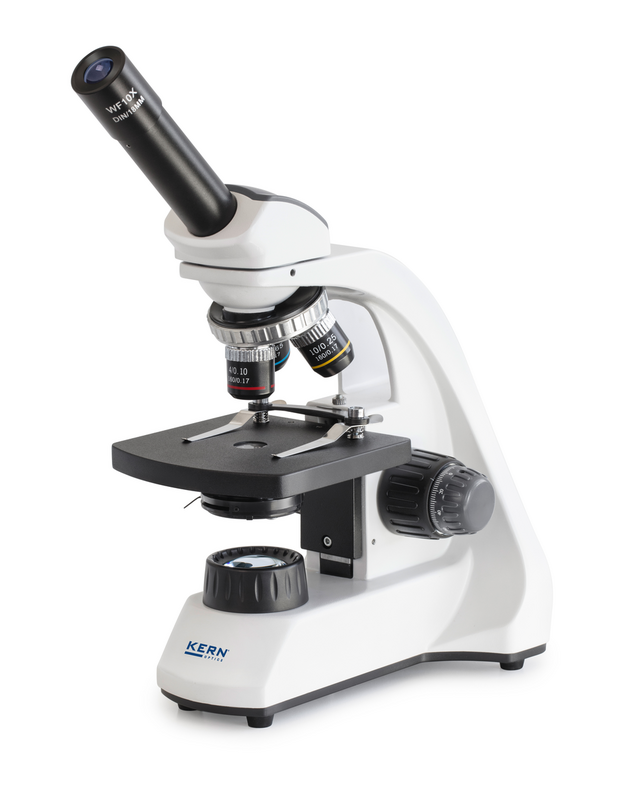

- The KERN OBT range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design.
- The infinitely dimmable 1W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through optional battery operation
- The simple condenser lens ensures the very best concentration of light and illumination of the sample
- To focus the object accurately, the model has a coarse and fine focusing knob on both sides
- A large selection of different eyepieces and objectives is also available
- A dust cover as well as user instructions are included with the delivery
Technical Data
| Optical system | Finite |
| Tube type | Monocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 18 mm |

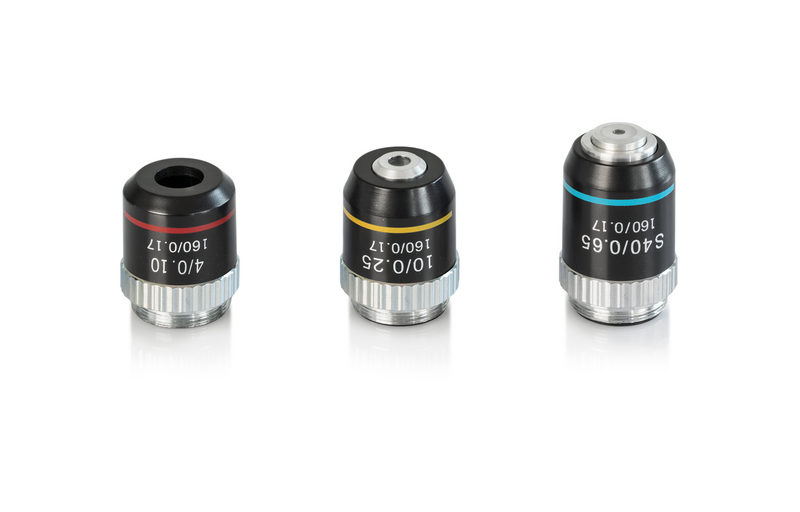

| Standard objectives | 4×, 10×, 40× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 3 |
| Illuminance | Transmitted light |
| Illumination intensity transmitted light | 1 W |
| Illumination type transmitted light | LED |
| Condensor type | Simple condenser |
| Kondensor-Apertur | 0,65 |
| Kondensor-Montage | fixed |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,0025 mm |
| Dimension (W×D×H) | 195×147×325 mm |
| GTIN/EAN number | 4045761228948 |
Data sheet OBT 101
