Description

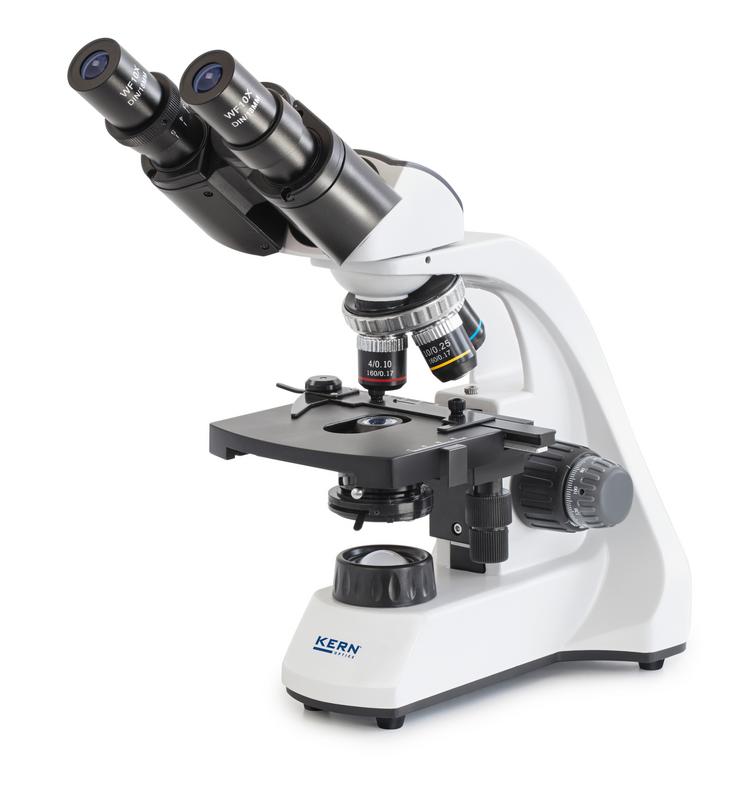

- The KERN OBT range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design.
- The infinitely dimmable 1W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through optional battery operation
- This model has a 1,25 Abbe condenser which is height-adjustable and can therefore be focussed and has an aperture diaphragm, which ensures the very best concentration of light
- To focus the object accurately, the model has a coarse and fine focusing knob on both sides. The mechanical stage enables you to work with the samples and move them rapidly
- A large selection of different eyepieces and objectives is also available
- A dust cover as well as user instructions are included with the delivery
Technical Data
| Optical system | Finite |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 18 mm |

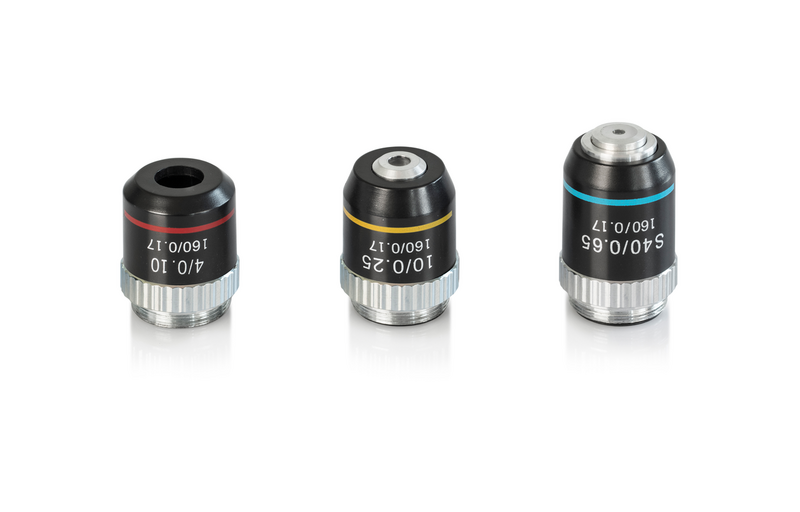

| Standard objectives | 4×, 10×, 40× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 4 |
| Illuminance | Transmitted light |
| Illumination intensity transmitted light | 1 W |
| Illumination type transmitted light | LED |
| Condensor type | Abbe |
| Kondensor-Apertur | 1,25 |
| Kondensor-Montage | fixed |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,0025 mm |
| Dimension (W×D×H) | 195×147×325 mm |
| GTIN/EAN number | 4045761228979 |
Data sheet OBT 104
