Description

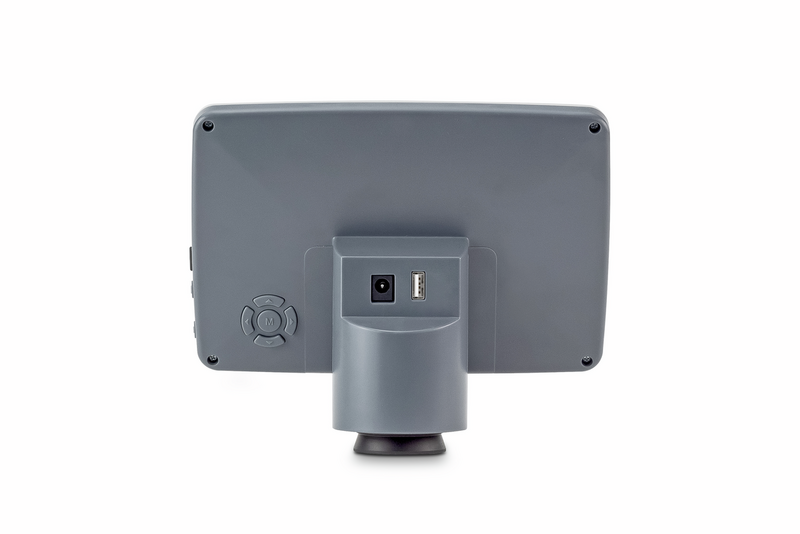

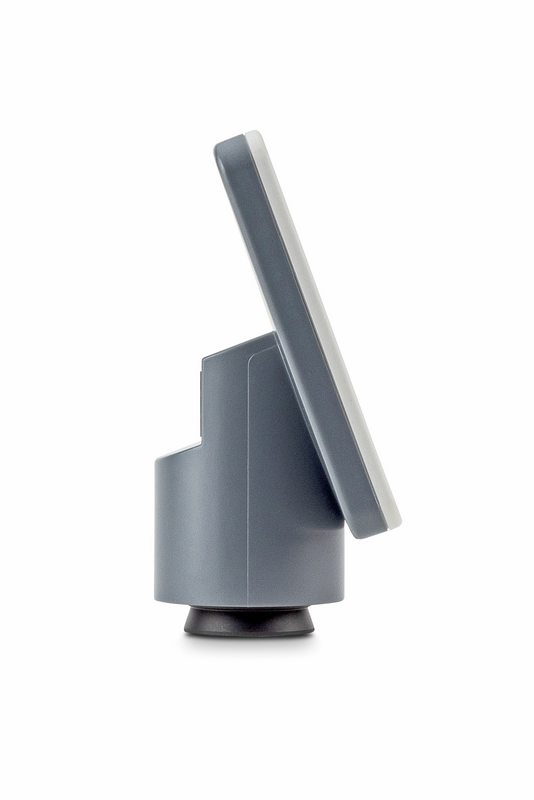

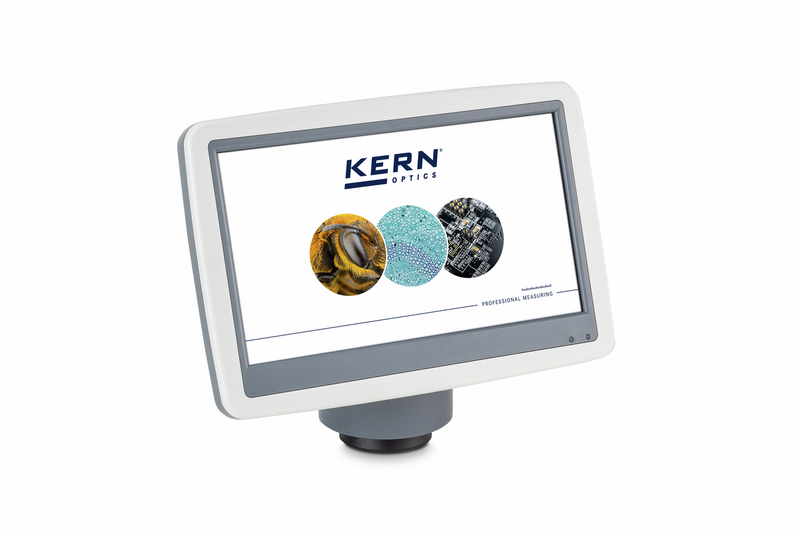

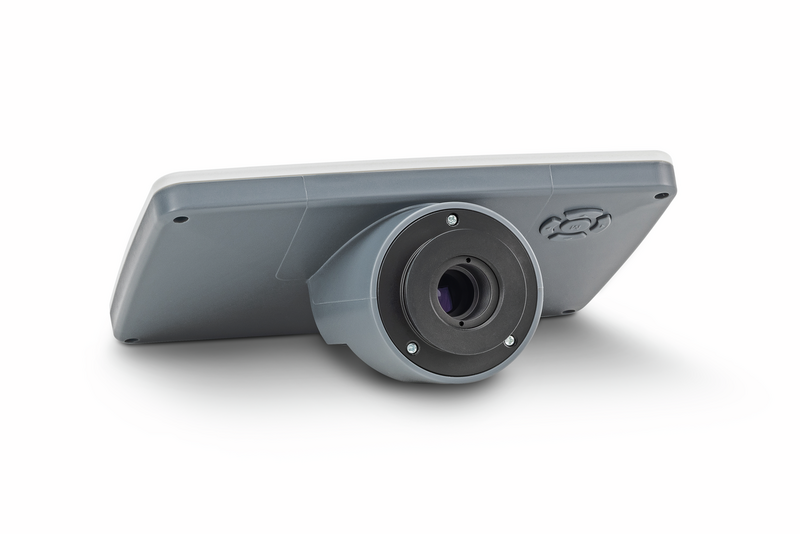

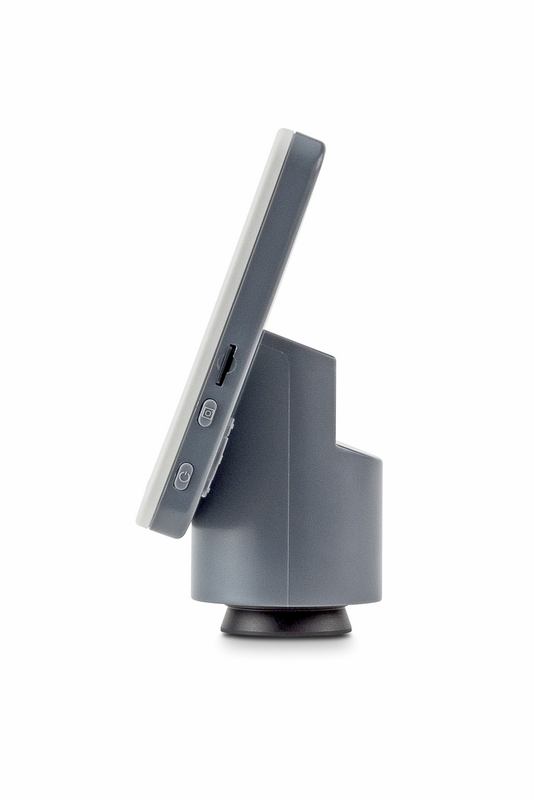

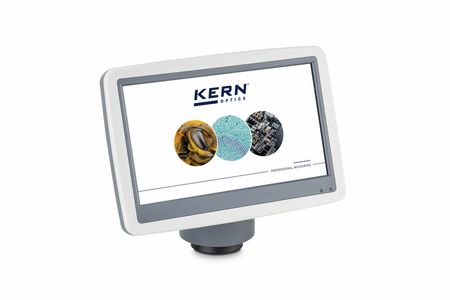

- Digital kit with LCD display for viewing samples, USB dual power supply for microscopes and displays, software for measurements as well as a USB interface and micro SD card slot for documenting recordings

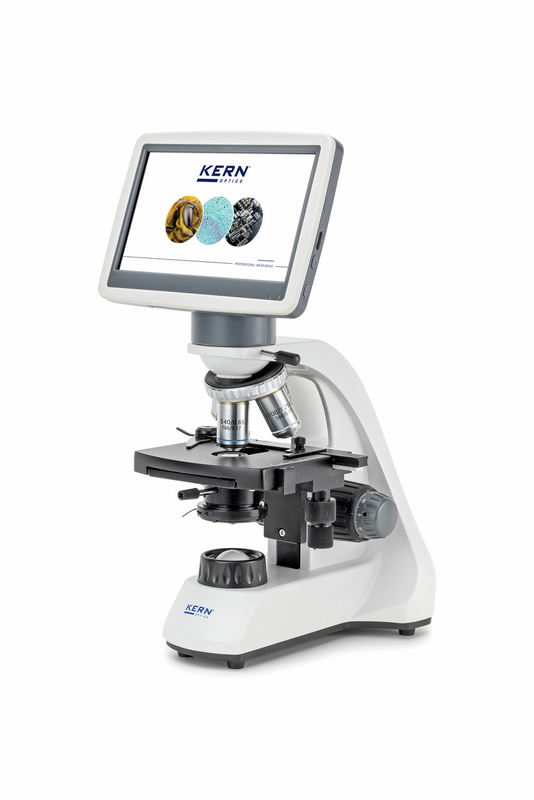

- The KERN OBT range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design.
- The infinitely dimmable 1W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through optional battery operation
- This model has a 1,25 Abbe condenser which is height-adjustable and can therefore be focussed and has an aperture diaphragm, which ensures the very best concentration of light
- To focus the object accurately, the model has a coarse and fine focusing knob on both sides
- The mechanical stage enables you to work with the samples and move them rapidly
- A dust cover as well as user instructions are included with the delivery
Technical Data
| Optical system | Finite |
| Standard objectives | 4×, 10×, 40×, 100× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 4 |
| Illuminance | Transmitted light |
| Illumination intensity transmitted light | 1 W |
| Illumination type transmitted light | LED |
| Condensor type | Abbe |
| Kondensor-Apertur | 1,25 |
| Kondensor-Montage | fixed |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,0025 mm |
| Display type | LCD |
| Display screen size | 7" |
| Display resolution | 1844×1080 |
| Camera - Sensor type | CMOS |
| Camera - Sensor size | 1/2,8" |
| Camera - Resolution | 2 MP |
| Camera - Framerate | 60 fps |
| Interfaces | USB 2.0, MicroSD card slot |
| Dimension (W×D×H) | 182×195×360 mm |
| GTIN/EAN number | 4045761484894 |
Data sheet OBT 231
