Sauermann

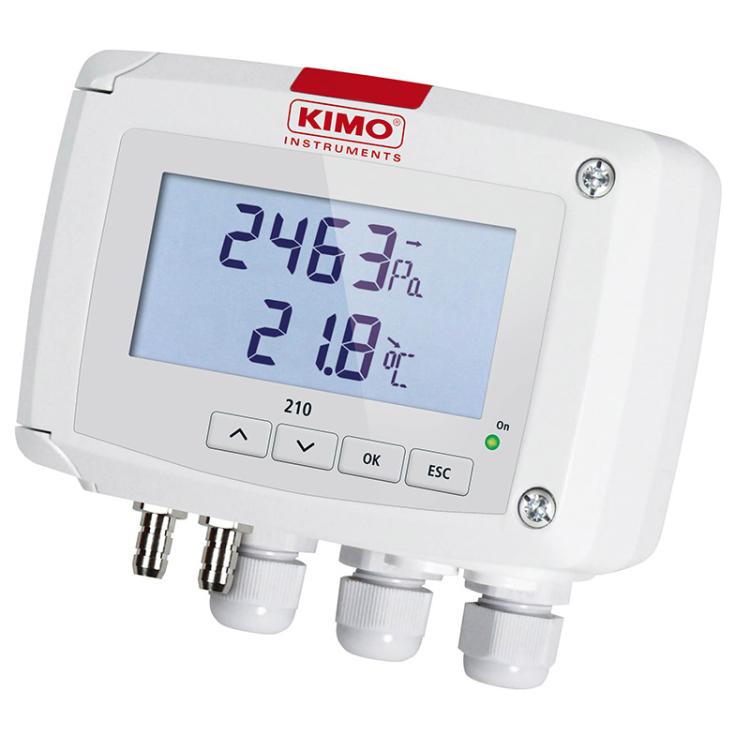

CP 210-R Differential pressure and temperature sensor

SKU: 25632 CP211-BN-R
452.89 € (ex VAT)
Measuring Range
Power Supply
Display

Differential pressure and temperature sensor

Differential pressure transmitter. Configurable range from -100 / +100 Pa up to -10 000 Pa / +10 000 Pa. Permanent and automatic autozero by solenoid valve (on 100 & 1000 Pa models). 2x analogue outputs, 4-wire technology, 0-5/10 V or 0/4-20 mA, 2x relays. Configuration via keypad (on models with a display) or via software (on all models). 24 Vdc/Vac or 100/240 Vac power supply with galvanic isolation. With or without 19-digit 2-line display, with backlight and trend indicator. ABS V0 housing, IP65. Supplied with adjustment certificate. Coming in option: SQR3 air velocity and airflow calculation function, PT100 probe (/!\ CAUTION ! no temperature compensation), LCC-S configuration software, calibration certificate.



The CP 210-R measures the differential pressure of air (and neutral gases), and is ideal for use in industrial and pharmaceutical applications.

Measure details

  • Units
    °F, °C, Pa, kPa, mbar, hPa, inWg, mmH₂O, mmHg, daPa
shadow



Technical details

  • Parameters
    Differential pressure
    Temperature
  • Displays
    No
    2-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc ou 100-240 Vac
  • Outputs
    2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 fils)
  • Relay
    2 RCR relay 3A/230 Vac
  • Ethernet communication
    No
  • ModBus network
    No
shadow

Instrument Dimensions

  • Length
    125 mm
  • Width
    59.2 mm
  • Height
    115 mm
  • Weight
    340 g
shadow



Operating temperature

  • Min
    -10.00 °C
  • Max
    50.00 °C
shadow

Storage temperature

  • Min
    -10.00 °C
  • Max
    70.00 °C
