Sauermann

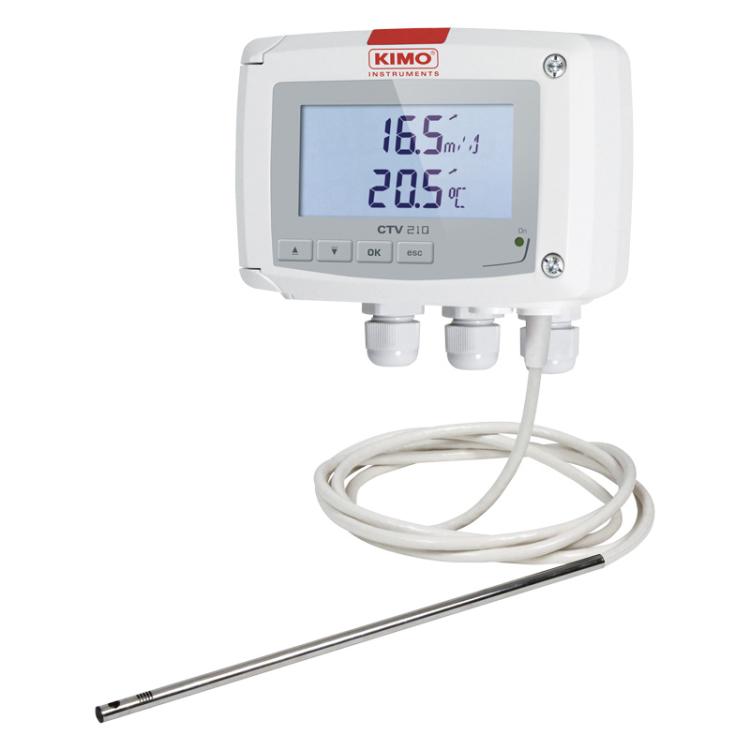

CTV 210-R Air velocity and temperature sensor

SKU: 25661 CTV210-BOS-R
401.29 € (ex VAT)
Power Supply
Display
Cable

Air velocity and temperature sensor



Kimo’s CTV 210-R is a transmitter with hotwire probe measuring air velocity from 0 to 30 m/s and temperature from 0 to +50°C.

Measure details

  • Units
    °F, °C, m/s, km/h, fpm
shadow


Technical details

  • Parameters
    Air velocity
    Temperature
  • Displays
    No
    2-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc or 100-240 Vac
  • Outputs
    2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
  • Relay
    2 changeover relays 3 A / 230 V
  • Ethernet communication
    No
  • ModBus network
    No
shadow

Instrument Dimensions

  • Length
    125 mm
  • Width
    59.2 mm
  • Height
    115 mm
  • Weight
    340 g
shadow



Operating temperature

  • Min
    -10.00 °C
  • Max
    50.00 °C
shadow

Storage temperature

  • Min
    -10.00 °C
  • Max
    70.00 °C



Datasheet CVT 210-R

User Manual CVT 210-R

Quick Start Guide
