Sauter

Data transmission software AFH FD

SKU: AFH FD
710.00 € (ex VAT)

Description

  • AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
  • The program simultaneously requests the measurements from a force measuring device, e.g. SAUTER FH, as well as a length measuring device, e.g. SAUTER LB or SAUTER LD

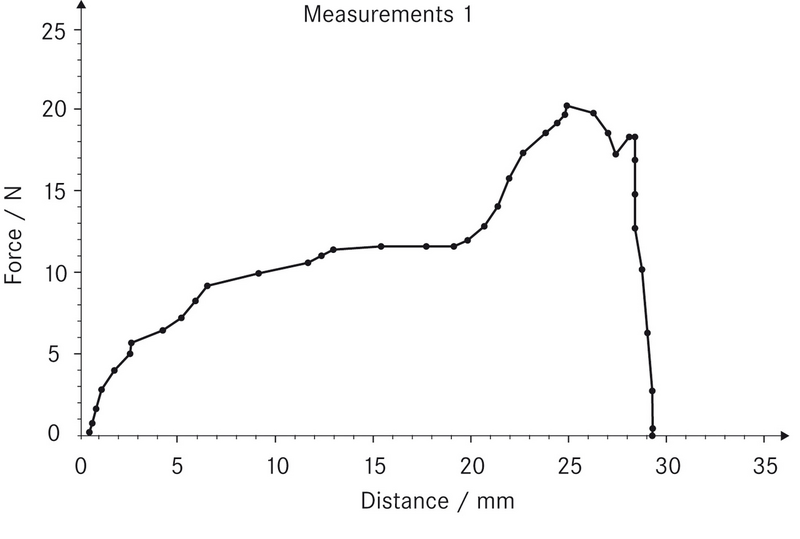

  • The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH FD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel®
  • The software AFH FD is compatible with all instruments of series SAUTER FC, FH, FL

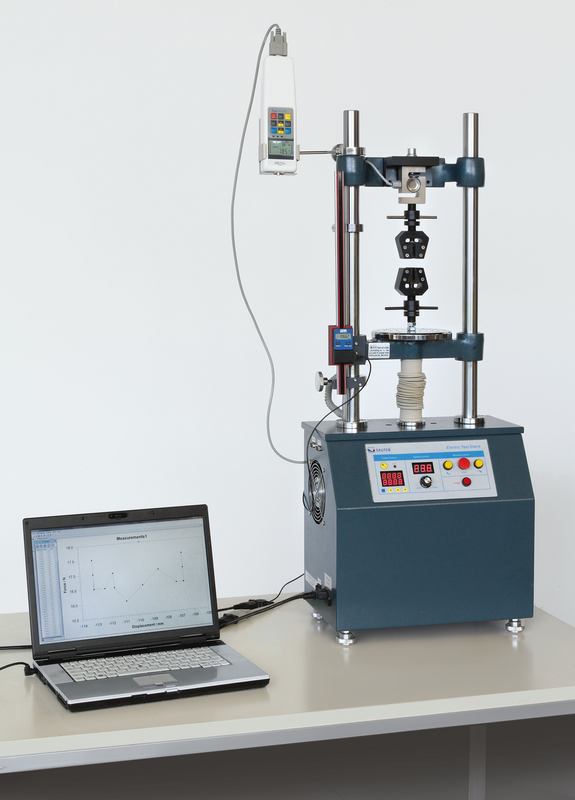

  • These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N and TVS range. However, it is also possible to use them with mechanical testing machines
  • Further analysis functions:
    - Extension of the test object
    - Tensile and compressive force
    - Endurance testing
    - Archiving the recorded data
  • Scope of delivery for SAUTER AFH FD:
    - Software AFH FD as downloadlink
    - RS-232 interface cable for LB (LB-A01)
    - User manual
  • Compatible with the following operating system: Microsoft Windows 10, 11®
