Overview

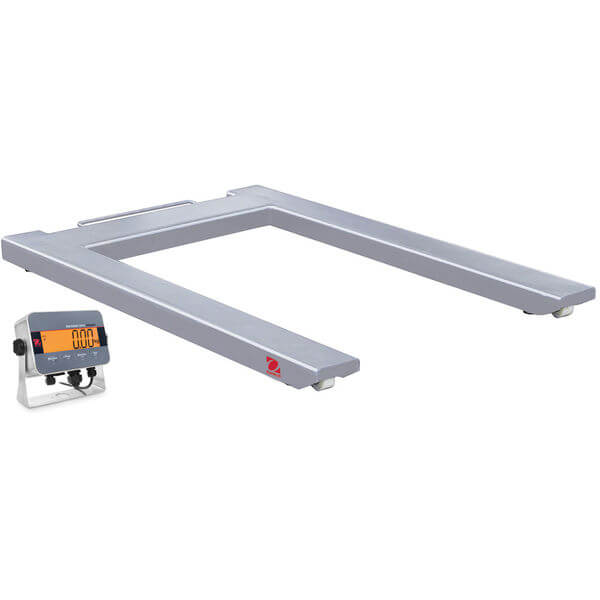

The Defender 3000 Series U-Frame Pallet Scale is the value solution for your washdown weighing needs in industrial and commercial applications. Their high-quality material and construction are designed for years of trouble-free service. Together with mobility features such as lifting handle and front-mounted rollers, the Defender 3000 U-Frame Pallet Scales offer a unique combination of convenience, value & quality that you can depend on.
Applications
Weighing, Checkweighing, Counting, Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included) or Rechargeable Battery
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
304-grade stainless steel IP66 indicator, stainless steel U-frame, IP65 stainless steel junction box, 4 IP67 OIML R60 stainless steel load cells, handle and front wheels, foot plate kit (accessories sold separately)
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
Specifications
| Maximum Capacity | 1,500 kg |
| Readability | 0.5 kg |
| Readability (Certified) | 0.5 kg |
| Platform Size | 1,260 mm x 840 mm |
| Battery Life | 30 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Dimensions | 1,260 mm x 90 mm x 840 mm (LxHxW) |
| Display | 7 Segment LCD with multicolor backlight |
| Legal for Trade | EC Type Approvable; OIML |
| Net Weight | 50 kg |
| Outputs | Not Applicable |
| Platform Construction | Stainless Steel |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Protection Rating | IP 65 |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
