Description
- Turnable display with backlight

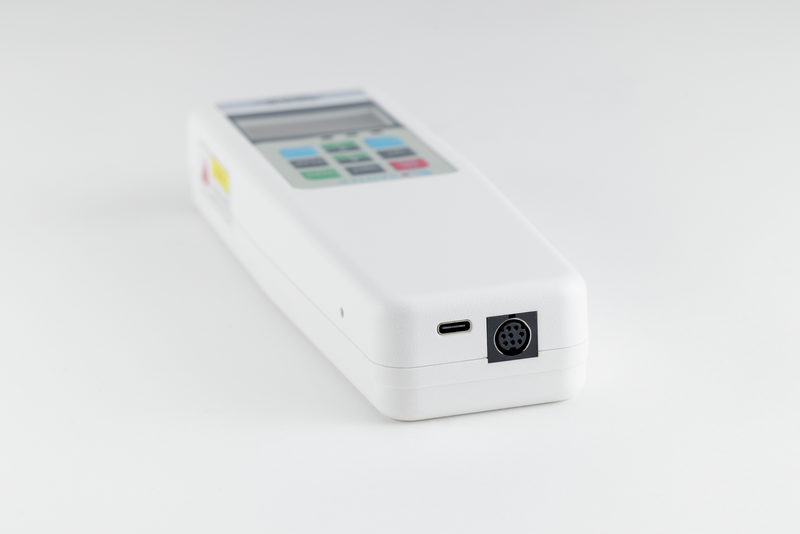

- NEW: USB interface for data transfer and power supply as standard
- Data interface RS-232 as standard
- Selectable measuring units: N, kN, kgf, tf
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
- Auto-Power-Off
- Internal memory for up to 10 measurement values
- Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n
- Tension loops and compression plates are included in delivery

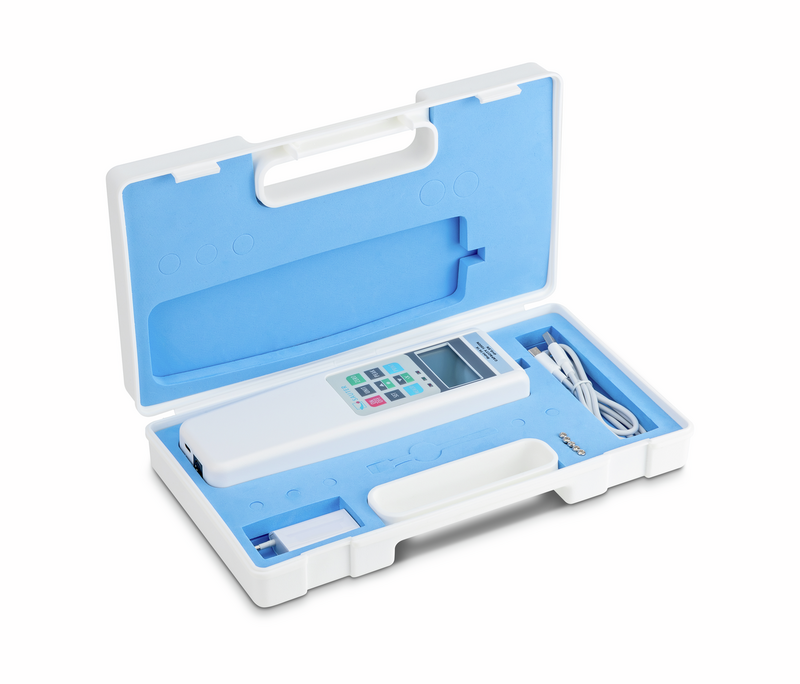

- Delivered in a robust carrying case
Technical Data
| Measuring range force [Max] (N) | 50 kN |
| Readability force [d] (N) | 10 N |
| Tolerance (% of [Max]) | 0,5% |
| Measuring head measuring frequency | 2 kHz |
| Supplied power supply | Accu & Power supply |
| Memory function | |
| Statistic function | |
| Limit-setting function | |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 250×80×30 mm |
| Net weight approx. | 2,6 kg |
| Interfaces | RS-232 standard, USB-Device |
| Cable length | 3 m |
| GTIN/EAN number | 4045761368620 |
