Description
- The stereo microscopes of the OZP-5-series are available to you as a comprehensive digital solution with an mounted C-mount camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted C-mount camera is available in different versions and can be used anywhere
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

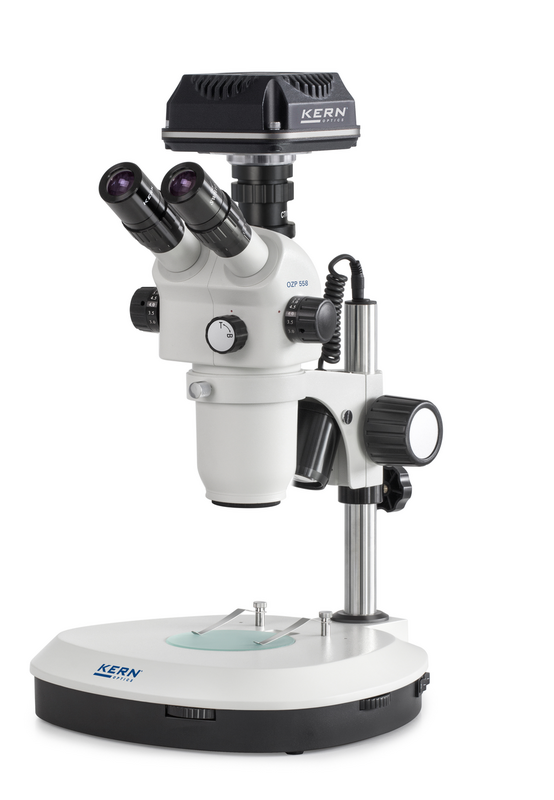

OZP 558
- The KERN OZP-5 stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
- The KERN OZP 558 is available as a strong, continuously adjustable 3 W LED reflected and transmitted light variant for the very best illumination of your sample
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZP 558 provides sharp, high-contrast, colour-true images.
- The extremely large, infinitely adjustable magnification range from 6 to 55 times magnification means that you can work quickly and effectively
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
ODC 832
- Through the proven CMOS technology, in connection with the USB 3.0 the images are shown quickly and clearly
- These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications
- Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
- The power supply is through the USB cable, which means that no additional power supply is required
- As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software
Technical Data
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 23 mm |
| Magnification ratio | 9,2:1 |
| Zoom [Min] | 0,6 x |
| Zoom [Max] | 5,5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 3 W |
| Illumination type transmitted light | LED |
| Illumination intensity incident light | 3 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Camera - Sensor type | CMOS |
| Camera - Colour depth | Colour |
| Camera - Sensor size | 1/2,5" |
| Camera - Resolution | 5,1 MP |
| Camera - Framerate | 14,2 - 101,2 fps |
| Interfaces | USB 3.0 |
| Working distance | 108 mm |
| Sample height [Max] | 110 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 330×285×540 mm |
| GTIN/EAN number | 4045761228740 |
