Description
- To measure the hardness of plastics through penetration measurement
- Shore A: Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather and similar material
- Different measuring modes: Average value, maximum value, chronological sequence
- Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits
- Entering the workpiece number is possible
- Setting the measuring time from 0 to 99 seconds
- Recommended for internal comparison measurement

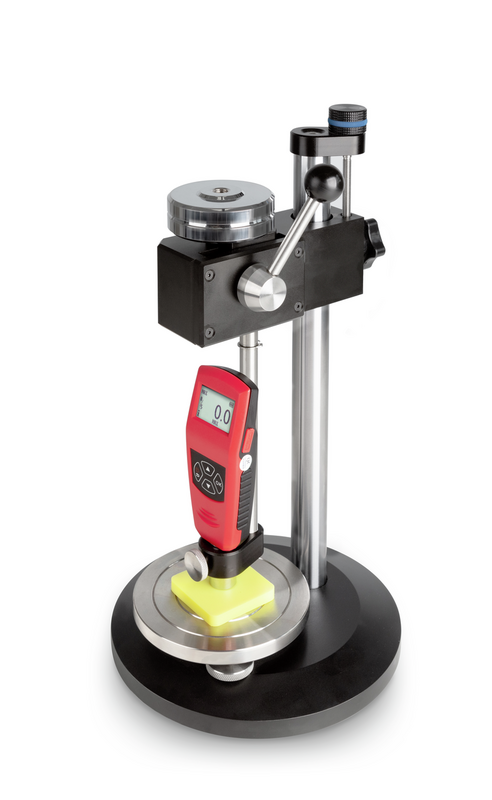

- Can be attached to the test stand SAUTER TI-HEA to improve the measurement result

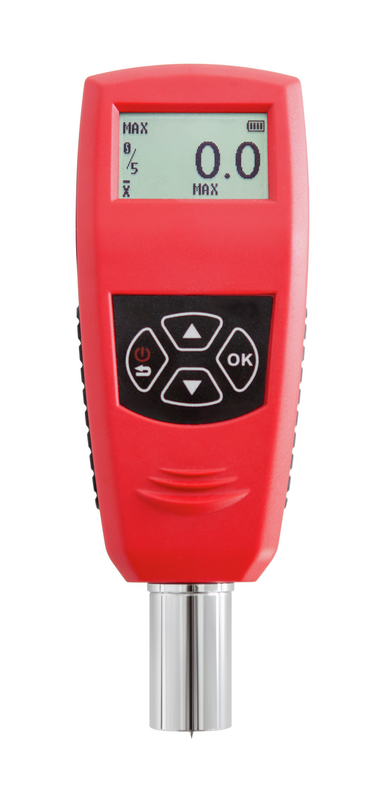

- Large display with backlight
- Battery status indicator
- USB data interface, as standard

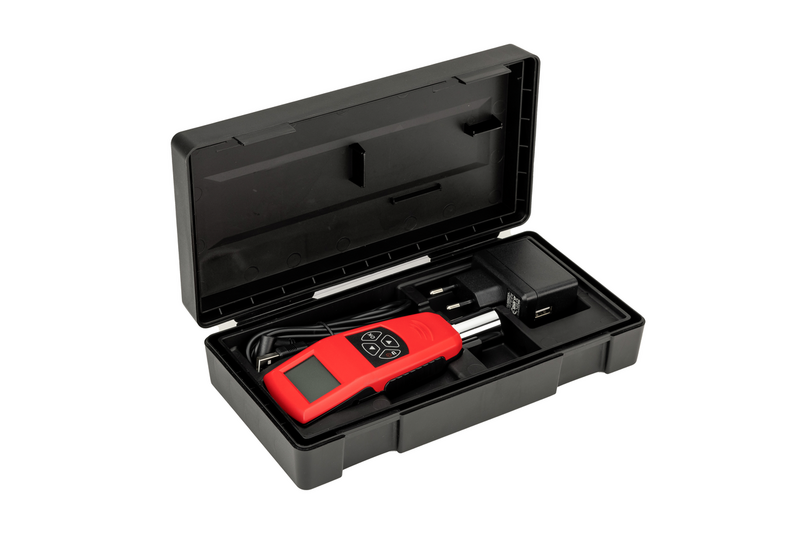

- Delivered in a robust carrying case
Technical Data
| Hardness scales | Shore A |
| Measuring range Shore [Max] | 100 HA |
| Readability Shore [d] | 0,1 HA |
| Tolerance (% of [Max]) | 1% |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | plastic |
| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 10 N |
| Product family | HE |
| GTIN/EAN number | 4045761274013 |
