Overview
- battery powered digital pressure gauge
- nominal pressure: 0...6 bar up to 0...600 bar
- stainless steel sensor
- 0,5 % BFSL (class 0,5)
- adjustable housing
- LC display, 4,5-digit display
- standard battery CR 2450 operating period > 1.500h
- min / max function with reset function
- auto-zero
- setting the pressure unit
- automatic switch-off cofiguration
- preferred areas of use: mechanical and plant engineering, hydraulics
Description

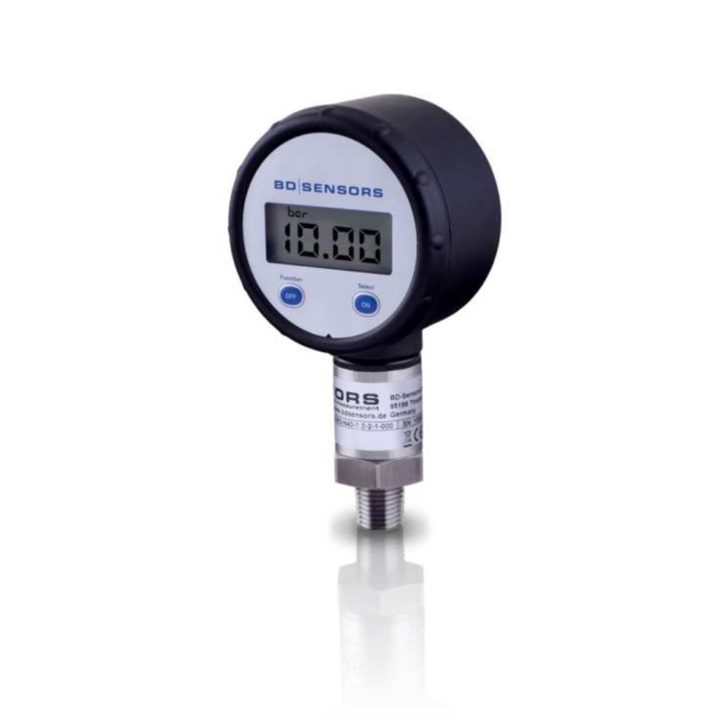

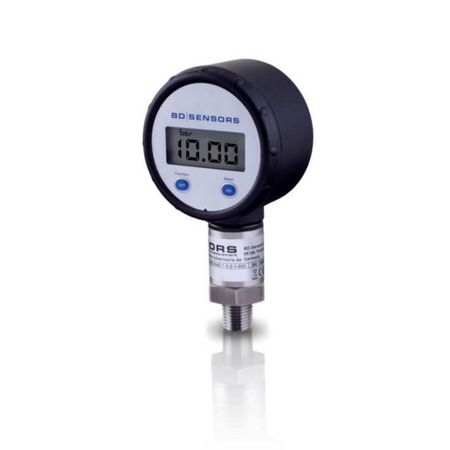

The compact digital pressure gauge DM 17 is characterized by its long-lasting battery supply as well as its adjustable housing. Thus, the DM 17 is ideal for mobile pressure monitoring. An unusual feature of the DM 17 is the welded pressure sensor. An absolute use in oxygen applications is given and strictest requirements on the particle liberty are fulfilled. The 4.5-digit LC-display indicates the battery status, the measurement value as well as the unit; this enables a fast and precise reading. Additional functions like setting of pressure unit, auto-zero, min / max values and an automatic switching-off function.
Specification
| Measurement range |
0...6 bar up to 0...600 bar
|
| Process connection |
G 1/2
G 1/4
1/4 NPT
|
| Case dimensions |
Ø63 mm
|
| Diaphragm |
stainless steel
|
| Power supply |
3V CR2450 lithium battery
|
| Display |
LCD, 4,5 x 8,5 mm
|
| Accuracy |
±0,5%
|
| Filling fluids |
no filling
|
| Operating temperature |
0...+70°C
|
| Medium temperature |
-25...+85°C
|
| Protection class |
IP 66
|
| Case material |
stainless steel
|
