BD Sensors

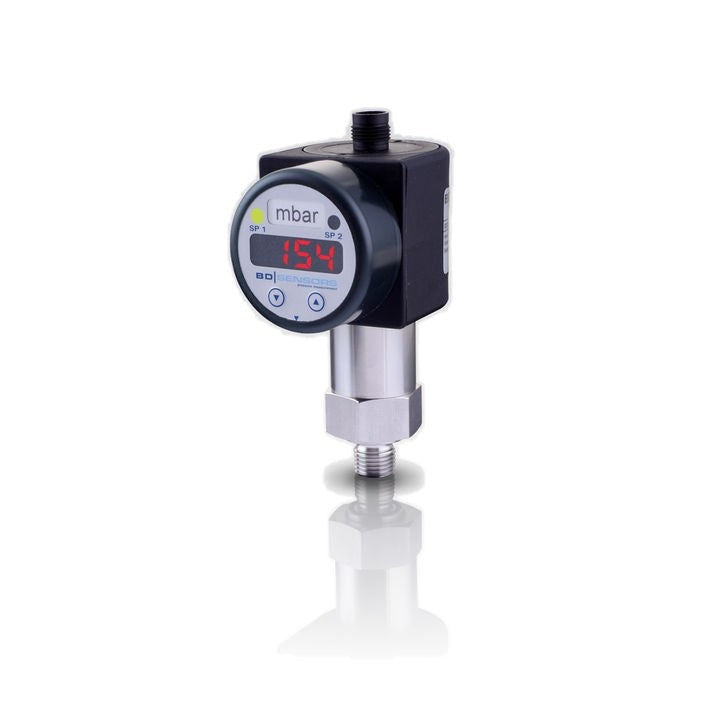

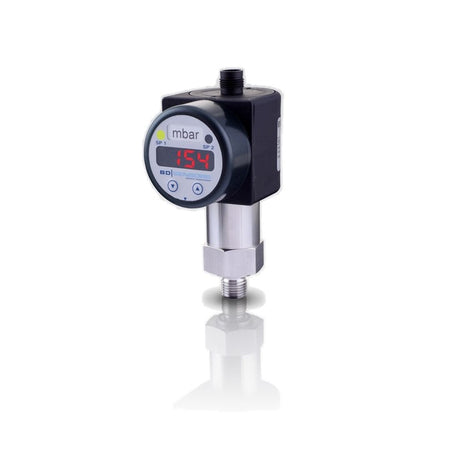

DS 217 - transmitter / switch / digital display

SKU: DS 217
0.00 € (ex VAT)

Overview

  • combination of pressure transmitter, intelligent pressure switch and digital display
  • nominal pressure: 0...6 bar up to 0...600 bar
  • output: 3-wire: 4 ... 20 mA
  • 1 or 2 independent PNP contacts
  • welded stainless steel sensor
  • accuracy: 0.5 % FSO
  • indication of measured values on a 4-digit LED display
  • rotatable and configurable display module
  • optionally: oxygen applications
  • areas of application: plant and machine engineering, energy industry, refrigeration engineering, medical technology, utility vehicles / mobile hydraulics



Description



The electronic pressure switch DS 217 is the successful combination of intelligent pressure switch and digital display. It has been specially designed for numerous applications in various industrial sectors. As standard the DS 217 offers a PNP contact and a rotatable display module with 4-digit LED display.



Specification

Measurement range
0...6 bar up to 0...600 bar
Output type
4...20 mA
PNP
Process connection
G 1/2
G 1/4
1/4 NPT
7/16 UNF
Electrical connection
connector M12x1
Accuracy
±0,5%
Display
LED, 4 x 7 mm, red
Diaphragm
stainless steel
welded
Operating temperature
-25...+85°C
Medium temperature
-25...+125°C
Protection class
IP 65
Case material
stainless steel
Mounting
any position
