Overview
- nominal pressure: 0...2 bar up to 0...400 bar
- 1 or 2 independent PNP contacts
- ceramic sensor
- accuracy: 1 % FSO
- configurable via PC or programming device P6
- optional: oil- and fat free version
- areas of application: mechanical engineering / hydraulics, measuring, control and process technology
Description

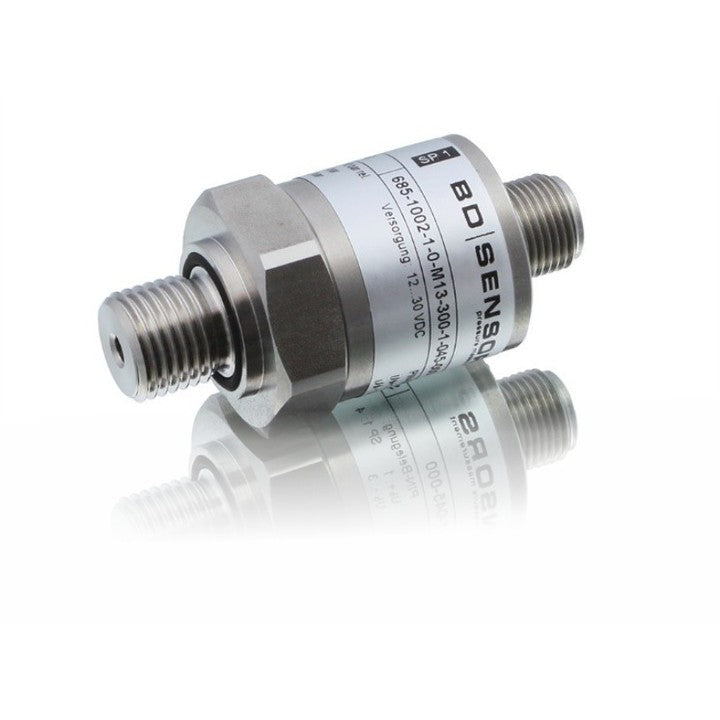

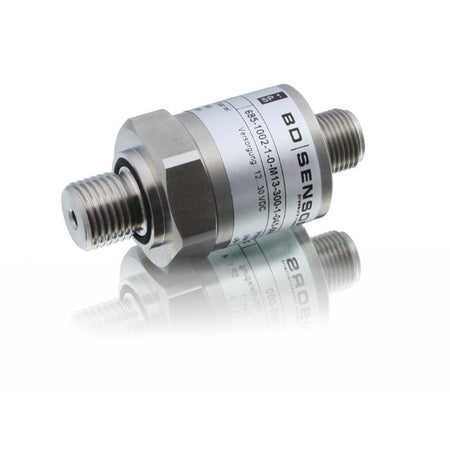

The electronic pressure switch DS 6 has been designed for universal applications. DS 6 is suitable, among others, for applications in plant and machine engineering, hydraulics, measurement and controls.
The one or two freely programmable contacts whose status is indicated by differently coloured LEDs can be quickly and comfortably configured either by means of the optionally available configuration kit or the programming device P6.
Specification
| Measurement range |
0...2 bar up to 0...400 bar
|
| Output type |
PNP
|
| Electrical connection |
connector M12x1
connector M8x1
|
| Process connection |
G 1/4
|
| Accuracy |
±1%
|
| Display |
no display
|
| Diaphragm |
ceramics Al2O3 (96 %)
|
| Operating temperature |
-25...+85°C
|
| Medium temperature |
-25...+85°C
|
| Protection class |
IP 67
|
| Case material |
stainless steel
|
| Mounting |
any position
|
Files
| Data sheet | |
| Manual | |
| Declaration of conformity |
