Kern

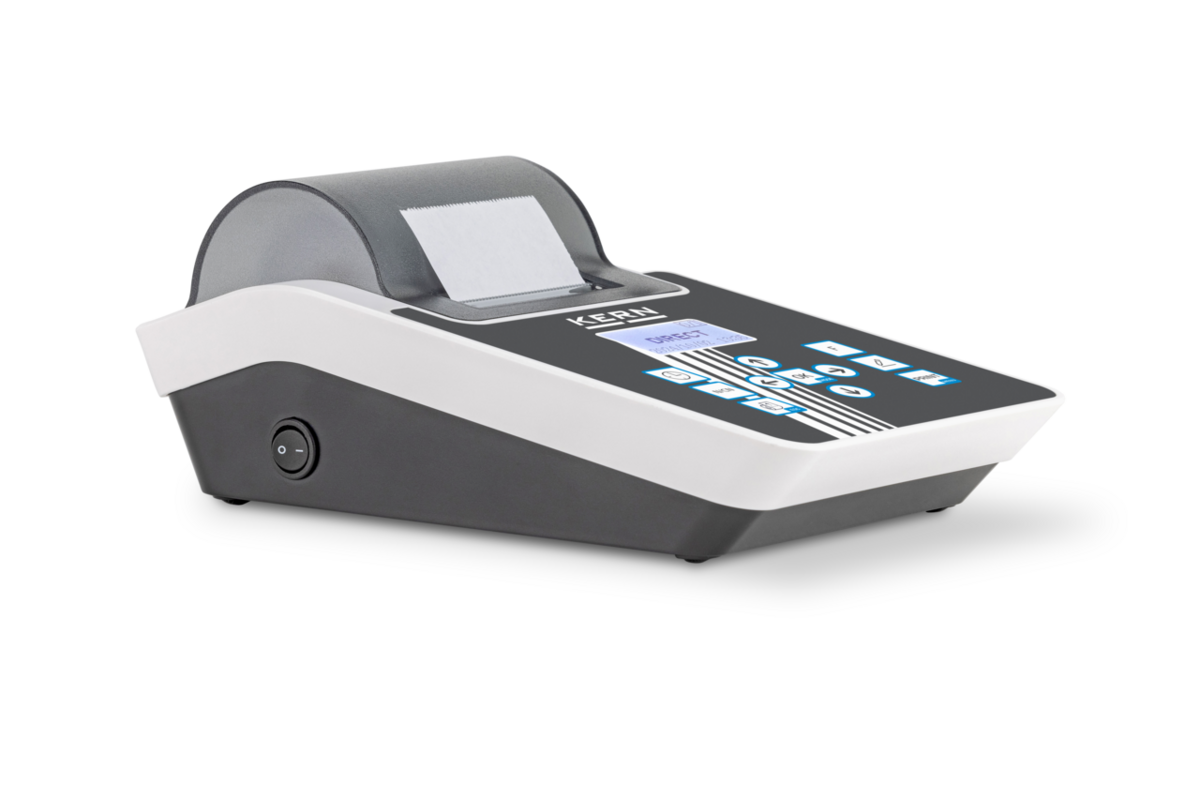

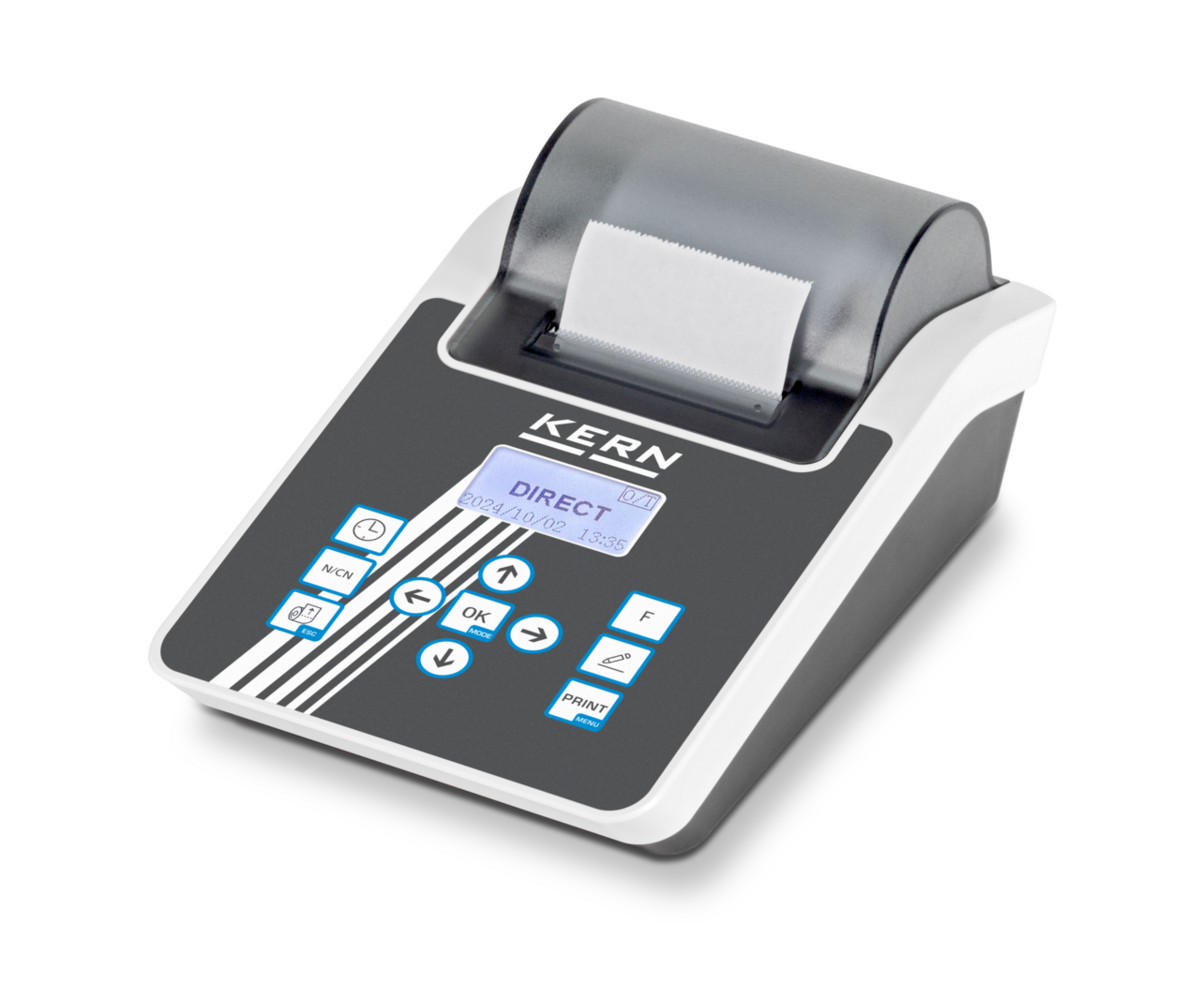

Needle printer YKT-01

SKU: YGR-01
580.00 € (ex VAT)

Description

  • -compliant printout thanks to durable paper and dot matrix printing process
  • Printout of date and time to document the weighings with a time stamp

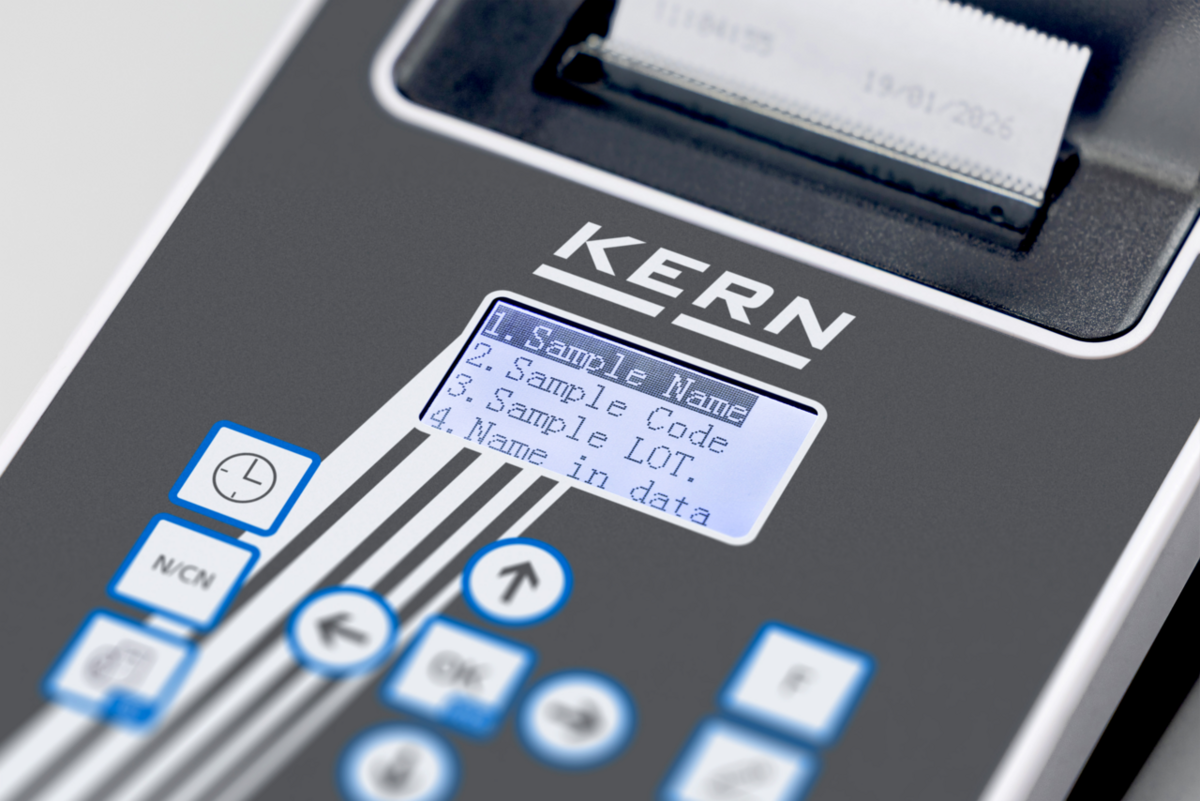

  • Specification of name, batch number and ID for printing user-defined information

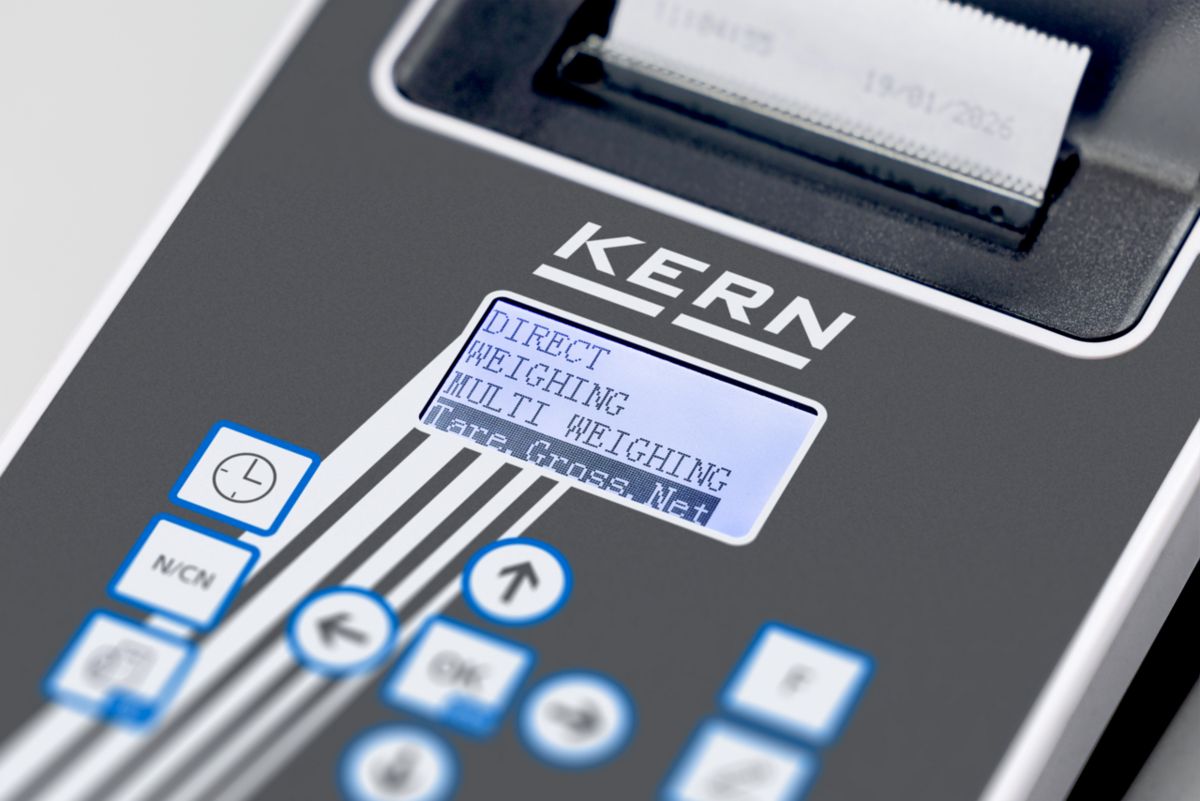

  • Display and printout of tare, gross and net weights for easy calculation and documentation
  • Multiple weighing for storing and processing multiple consecutive weighings
  • Recipe function for weighing and documenting various components
  • Totalizing function for calculating the total of multiple weighings
  • Statistical function for calculating and printing statistical values such as average value or
  • Label printing possible, only in combination with optional label rolls, see accessories (KERN YKT-A05S05)
  • Printing process: 8 print magnets with dot matrix
  • Speed: 1,7 line/s
  • Character size (ASCII characters): W×H 1.7×2.6 mm
  • Service life: 1 million lines
  • Ribbon cartridge: EPSON ERC-22 or ERC-09B
  • Operation via mains adapter 230 V/50 Hz (standard EU), as standard

Technical Data

Material plastic
Dimension (W×D×H) 114,6×188,2×86,6 mm
Statistic function

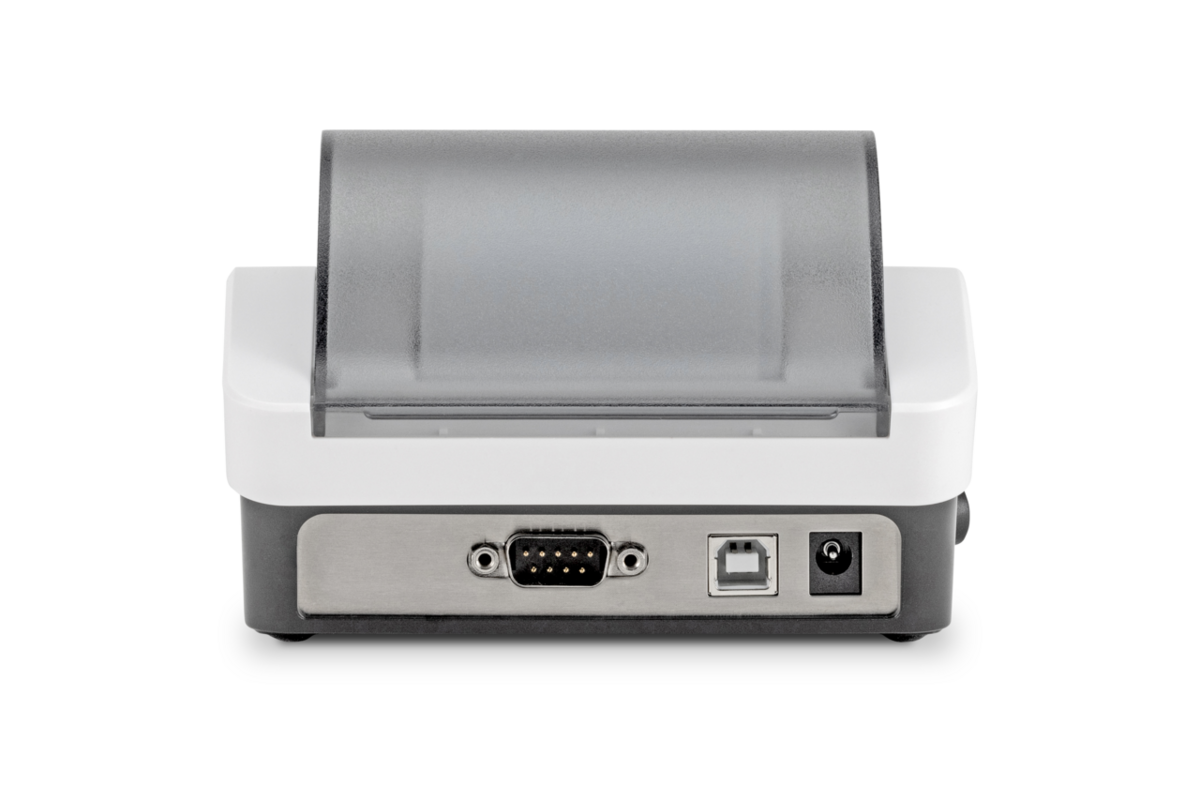

Interfaces RS-232 standard
Power supply type Power adapter
Input voltage power supply / power [Max] 100 V - 240 V AC, 50 / 60 Hz
Input voltage device / power [Max] 12 V, 2000 mA
Plug-in power supply / adapter for countries - included with the delivery EURO, AUS, UK, US, CH
Net weight approx. 0,65 kg
Pieces per sales unit 1
GTIN/EAN number 4045761484849



Data Sheet
