Overview

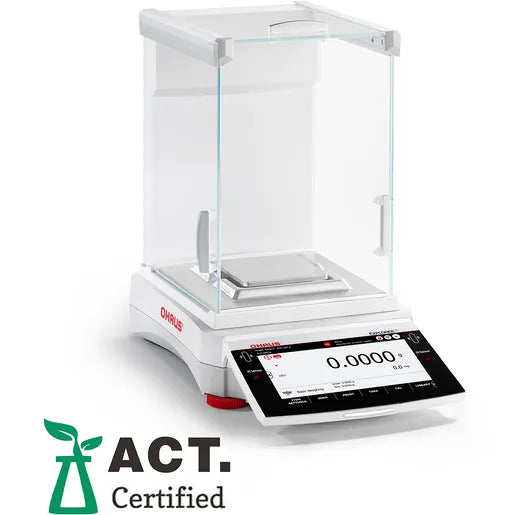

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status lights
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries
Product Specifications
| Maximum Capacity | 320 g |
| Readability | 0.1 mg |
| Pan Size (Length) | 90 mm |
| Pan Size (Width) | 90 mm |
| Internal Calibration | AutoCal™ - Automatic |
| Draft shield | Included |
| Dimensions (Length) | 393 mm |
| Dimensions (Width) | 230 mm |
| Dimensions (Height) | 370 mm |
| Battery Life | Not Applicable |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Built-in Ionizer | No |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (Available as an Accessory) |
| Display | 7" colour TFT touchscreen |
| Inuse cover | Included |
| Key Features | Quick and easy to configure; GLPGMP; Printer |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.2 mg |
| Main Purpose | Legal for Trade; Differential Weighing; Formulation; Percent Weighing; Check Weighing; Data Communication; Weigh Below; Counting; Density Determination |
| Market Worlds | Pharmacy; Laboratory |
| Minimum Weight | 10 mg |
| Minimum Weight (USP, 0.1%, typical) | 100 mg |
| Net Weight | 7.4 kg |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Product will be used | On a Table; WorkinIndustrial; Classroom |
| Repeatability, typical | 0.1 mg |
| Stabilization Time | 2 s |
| Tare Range | To capacity by subtraction |
| Test Weight | 300g, OIML E2 or ASTM CL 4 |
| Typical Areas | In a laboratory; In a pharmacy; In a light industrial enviroment; In a contract laboratory |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Tola; Mesghal; Carat; Ounce |
| Working Environment | 10°C – 30°C, 80%RH, non-condensing |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing |
