Overview

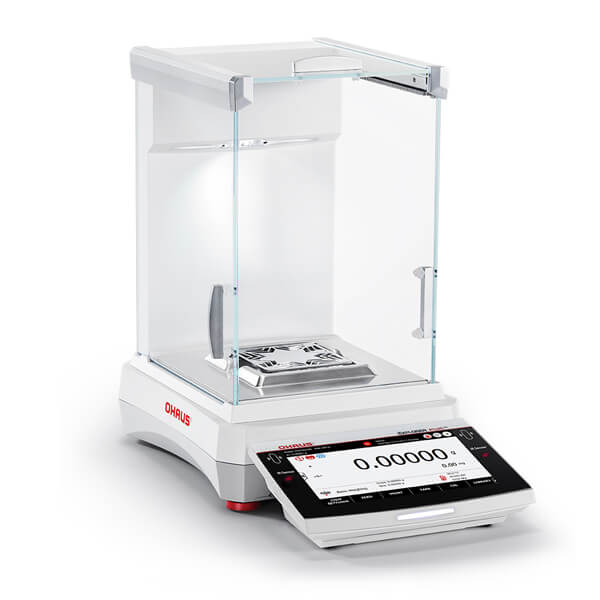

The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display

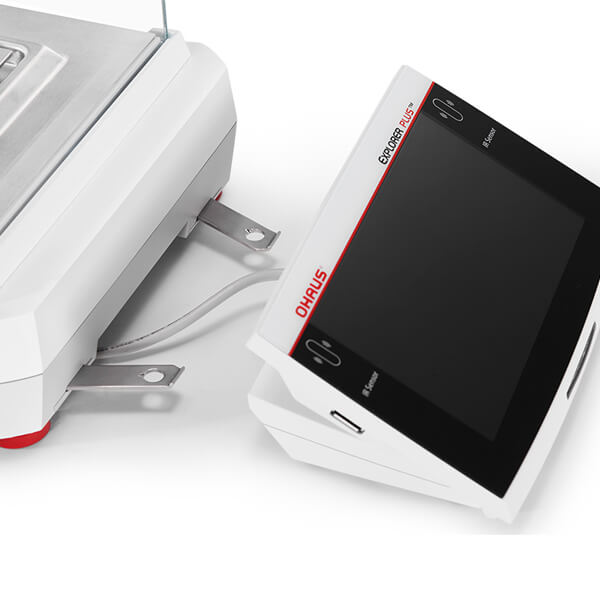

7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction

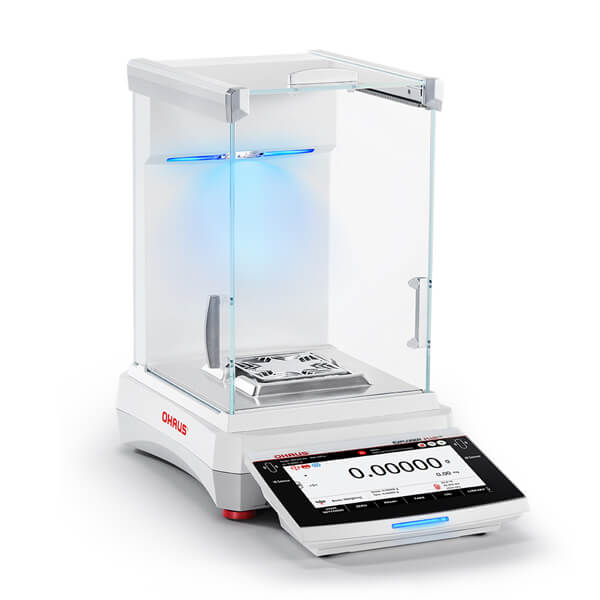

Modular Design, Metal base and housing, Zinc alloy areo weighing pan, Enhanced automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Motorized leveling, Built-in ionizer, 2 touchless sensors, Sample spotlight and status lights
Design Features

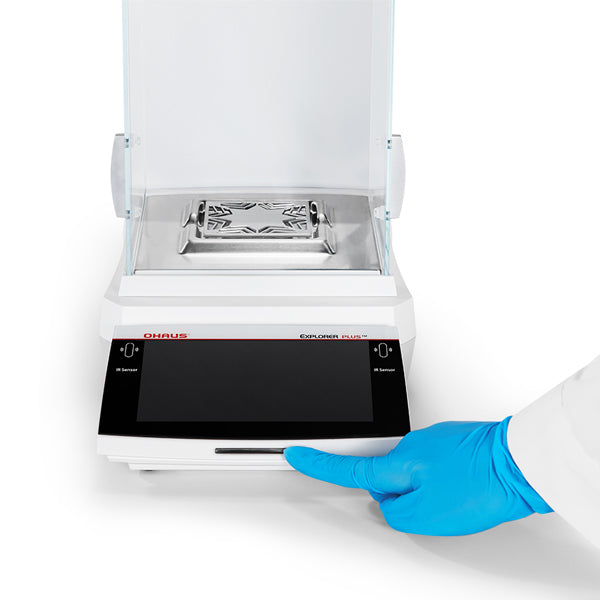

Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Specifications
| Maximum Capacity | 120 g |
| Readability | 0.01 mg |
| Pan Size | 80 mm x 80 mm |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | Included |
| Dimensions | 408 mm x 372 mm x 229 mm (LxHxW) |
| Battery Life | Not Applicable |
| Legal for Trade | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Auto Door | Anti-pinch autodoors |
| Tare Range | To capacity by subtraction |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| Net Weight | 7.8 kg |
| In-Use Cover | Included |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) |
| Power | AC Adapter (Included) |
| Units of Measurement | Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Momme; Newton; Baht; Gram; Tola; Mesghal; Carat; Ounce |
| Minimum Weight | 2 mg |
| Display | 7" colour TFT touchscreen |
| Pan Construction | Zinc Alloy |
| Built-in Ionizer | Yes |
| Stabilization Time | 5 s |
| Repeatability, typical | 0.02 mg |
| Minimum Weight (USP, 0.1%, typical) | 20 mg |
| Linearity ± | 0.2 mg |
