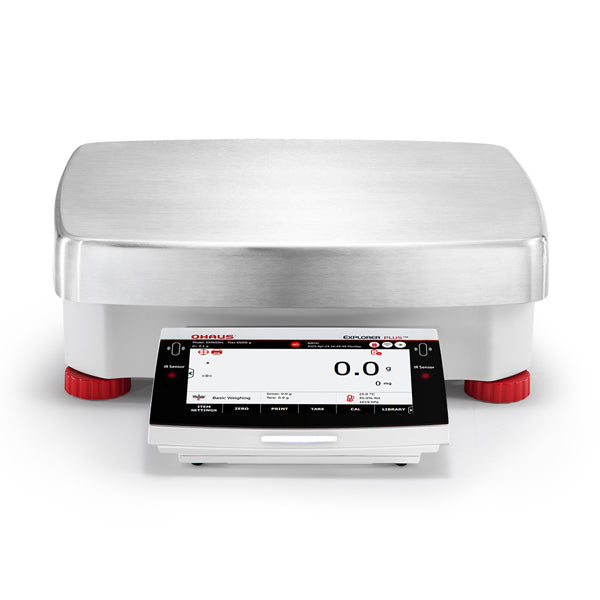

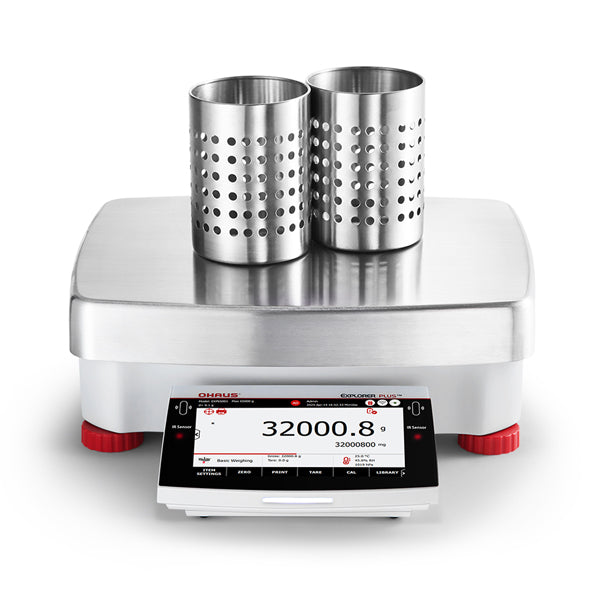

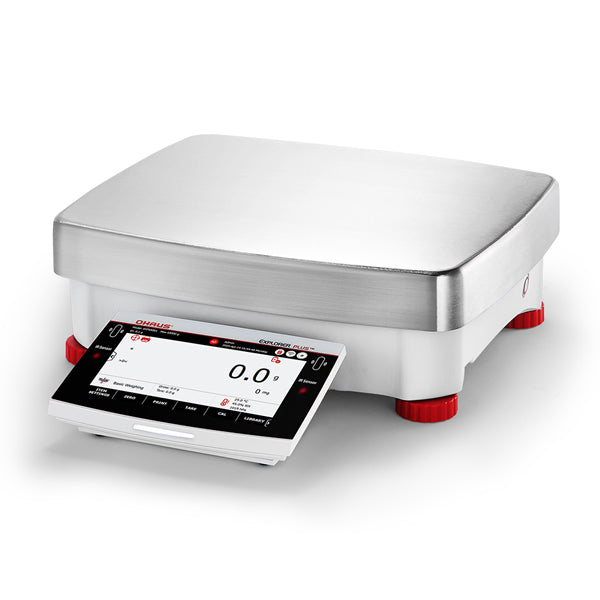

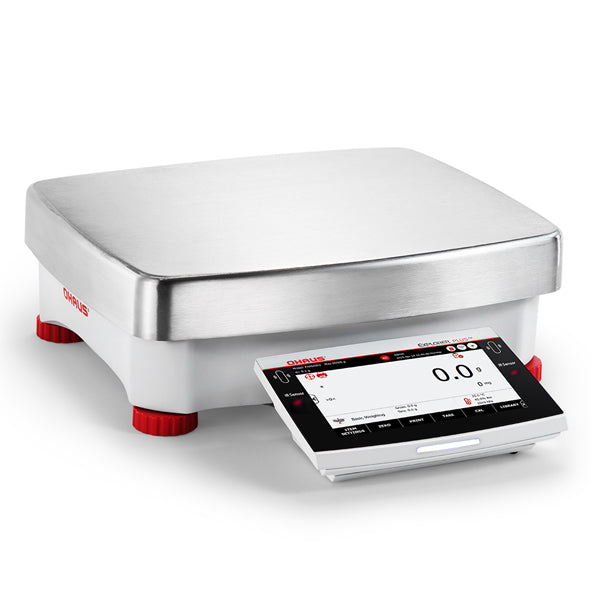

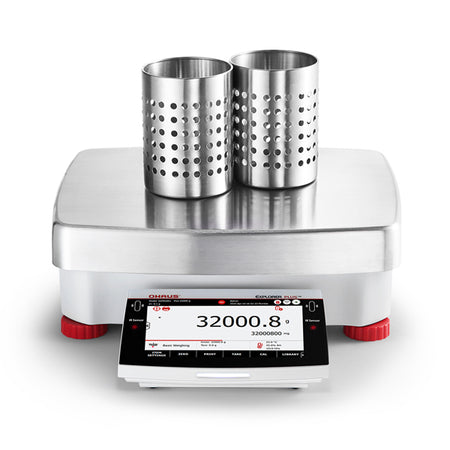

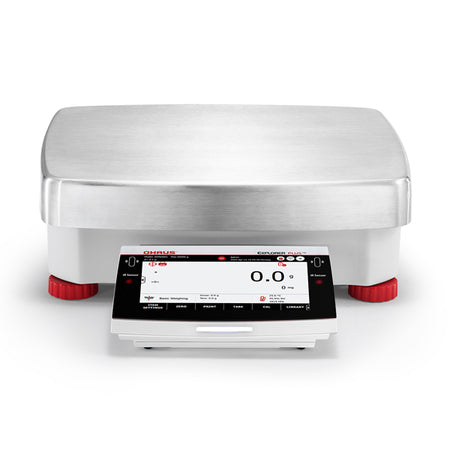

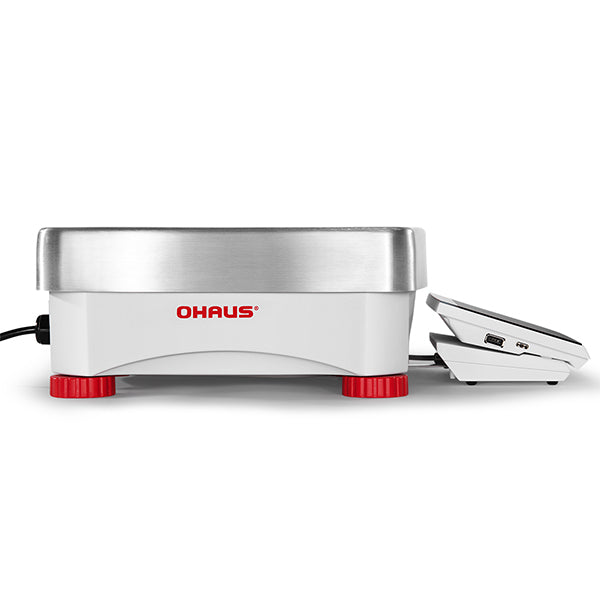

Explorer Plus™ High Capacity EXP Precision Balance - EXP24001M-EU
Regular price
5,920.00 € (ex VAT)
Overview
The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Input: 100-240 VAC 0.5A 50-60 Hz
Communication
USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular design, IP54 rated base, Metal base and housing, SST 304 weighing pan, Integral weigh below hook, 3 ambient sensors, 2 touchless sensors, Terminal status light
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Product Specifications
| Maximum Capacity | 24,000 g |
| Readability | 0.1 g |
| Readability (Certified) | 0.1 g |
| Pan Size (Width) | 377 mm |
| Pan Size (Length) | 311 mm |
| Internal Calibration | AutoCal™ - Automatic |
| Draft shield | — |
| Dimensions (Length) | 438 mm |
| Dimensions (Width) | 378 mm |
| Dimensions (Height) | 125 mm |
| Battery Life | 5 Hours with Rechargeable Battery |
| Accuracy (Class) | II |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Built-in Ionizer | No |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (Available as an Accessory) |
| Display | 7" colour TFT touchscreen |
| Inuse cover | Included |
| Key Features | Quick and easy to configure; GLPGMP; IndicatorPlatformSeperated; LFT; Printer |
| Legal for Trade | EC Type Approved |
| Linearity ± | 0.2 g |
| Main Purpose | Legal for Trade; Differential Weighing; Formulation; Filling; Percent Weighing; Check Weighing; Data Communication; Weigh Below; Counting; Density Determination; Statistics/SQC |
| Market Worlds | Pharmacy; Laboratory |
| Minimum Weight | 16 g |
| Minimum Weight (USP, 0.1%, typical) | 160 g |
| Net Weight | 13.8 kg |
| Pan Construction | Stainless Steel |
| Power | AC Power (Included) |
| Product will be used | On a Table; Industrial; Classroom |
| Repeatability, typical | 0.1 g |
| Stabilization Time | 1 s |
| Tare Range | To capacity by subtraction |
| Test Weight | 24kg, OIML F2 or ASTM CL 4 |
| Typical Areas | In a laboratory; In a pharmacy; In a light industrial environment; In a contract laboratory |
| Units of Measurement | Gram; Kilogram; Carat |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing |
| Working Environment | 10°C – 30°C, 80%RH, non-condensing |
