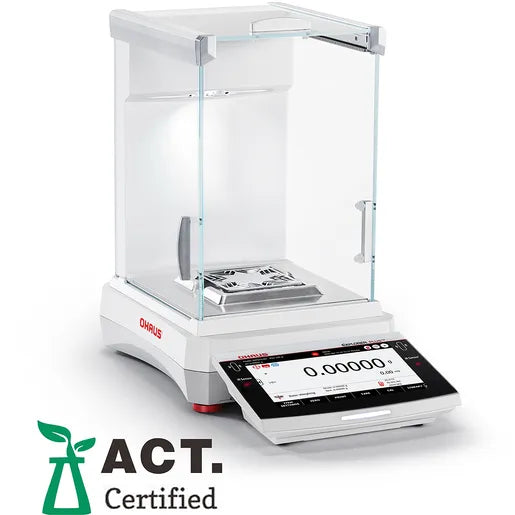

Overview
The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models).
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Product Specifications
| Maximum Capacity | 1,200 g |
| Readability | 1 mg |
| Pan Size (Length) | 130 mm |
| Pan Size (Width) | 130 mm |
| Internal Calibration | AutoCal™ - Automatic |
| Draft shield | Included |
| Dimensions (Length) | 408 mm |
| Dimensions (Width) | 229 mm |
| Dimensions (Height) | 372 mm |
| Battery Life | Not Applicable |
| Auto Door | Anti-pinch autodoors |
| Auxiliary Display Model | Available as an Accessory |
| Built-in Ionizer | Yes |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (Available as an Accessory) |
| Display | 7" colour TFT touchscreen |
| Inuse cover | Included |
| Key Features | Quick and easy to configure; GLPGMP; IndicatorPlatformSeperated; LFT; Printer |
| Legal for Trade | Not Applicable |
| Linearity ± | 2 mg |
| Main Purpose | Legal for Trade; Differential Weighing; Pipette Calibration; Formulation; Filling; Percent Weighing; Check Weighing; Data Communication; Weigh Below; Counting; Density Determination; Statistics/SQC |
| Market Worlds | Pharmacy; Laboratory |
| Minimum Weight | 0.14 g |
| Minimum Weight (USP, 0.1%, typical) | 1.4 g |
| Net Weight | 7.8 kg |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Product will be used | On a Table; WorkinIndustrial; Classroom |
| Repeatability, typical | 1 mg |
| Stabilization Time | 1.5 s |
| Tare Range | To capacity by subtraction |
| Test Weight | 1000g, OIML F1 or ASTM CL 4 |
| Typical Areas | In a laboratory; In a pharmacy; In a light industrial enviroment; In a contract laboratory |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Tola; Pound; Mesghal; Carat; Ounce |
| Working Environment | 10°C – 30°C, 80%RH, non-condensing |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing |
