Overview

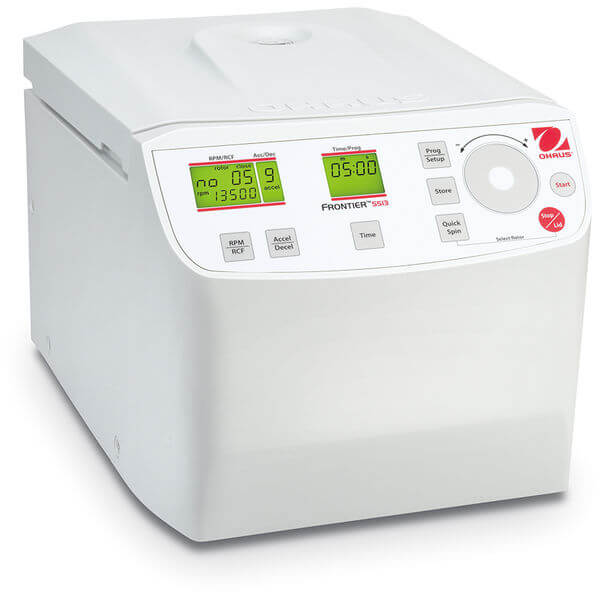

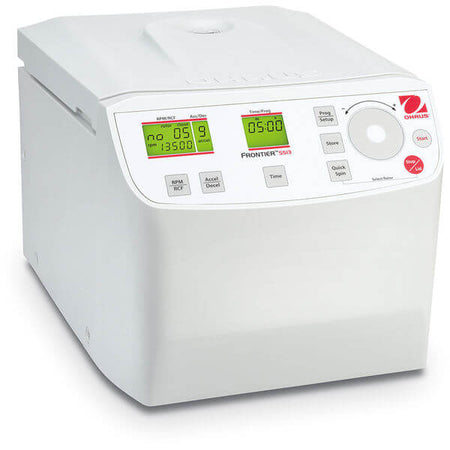

Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
High sample throughput,multi-safety control, personal program function
Specifications
| Speed Range | 200 rpm – 13,500 rpm |
| Maximum Relative Centrifuge Force (x g) | 17,317 g |
| Maximum Capacity(Rotor) | 24 x 1.5 / 2.0 ml |
| Program memories | 99 |
| Rotor In Package | 30472302 - Angle rotor 24 x 1.5/2.0 ml BIOSEALS |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions | 14 in x 9.3 in x 10.9 in (356 mm x 236 mm x 277 mm) (LxHxW) |
| Display | LCD with backlight |
| Lid lock | Mechanical |
| Net Weight | 28.9 lb (13.1 kg) |
| Noise Level | ≤60±2 dB(A) |
| Power | AC Power (Included) |
| Power Consumption | 170 W |
| Pre-cool time | Not applicable |
| Rotor Compatibility | Rotor Angle 24x1.5/2.0ml ID BIOSEALS V1; Hematocrit rotor, 24 × Capillaries |
| Rotor Recognition Method | Manual |
| Running Time | Continous; Quickspin; 10 sec to 99 h 59 min 59 sec |
| Safety Certification | CE; FCC |
| Working Environment | 41°F - 95 °F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing) |
