Overview

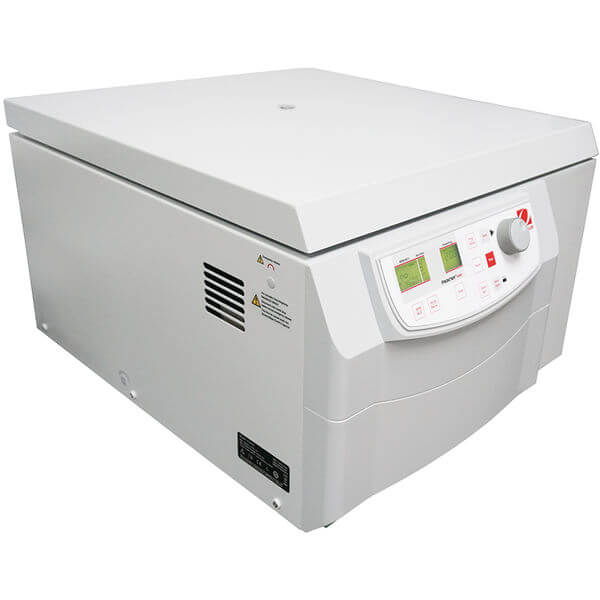

Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 11 models with capacities from 0.2 ml to 4 × 1000 ml - and feature high-speed performance at maximum volume, automatic rotor identification and safety features.
Applications
Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
Display
Backlit Liquid Crystal Display (LCD)
Operation
Designed to be used with a variety of rotors and accessories
Communication
N/A
Construction
Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid
Design Features
Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing
Specifications
| Speed Range | 200 rpm – 16,000 rpm |
| Maximum Relative Centrifuge Force (x g) | 24,325 g |
| Maximum Capacity(Rotor) | 4 x 750 ml |
| Program memories | 99 |
| Rotor In Package | Not applicable |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions | 26.4 in x 15.4 in x 21.3 in (670 mm x 390 mm x 540 mm) (LxHxW) |
| Display | 2-line, backlit LCD |
| Lid lock | Motor driven |
| Net Weight | 187 lb (85 kg) |
| Noise Level | ≤63±2 dB(A) |
| Power | AC Adapter (Included) |
| Power Consumption | 640 W |
| Pre-cool time | Not applicable |
| Rotor Compatibility | Angle 4 x 85ml RB ID Hi; Angle 6 x 250 ml FB ID; Angle 6 x 50 ml RB ID Hi; Rotor Angle 24x1.5/2.0ml ID BIOSEALS V1; Angle 30 x 1.5 / 2.0 ml ID Sealable; Angle 4 x 8-w PCR Strip ID; Angle 10 x 50 ml FA ID; Angle 20 x 10 ml RB ID Hi; Swing out 4x750ml ID Sealable; Angle 6 x 85 ml RB ID; Rotor Angle 4x500ml ID; Swing out 2 x 3MTP ID |
| Rotor Recognition Method | Auto |
| Running Time | Continous; Quickspin; 10 sec to 99 h 59 min 59 sec |
| Safety Certification | CE; FCC |
| Working Environment | 41°F - 95 °F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing) |
