Overview

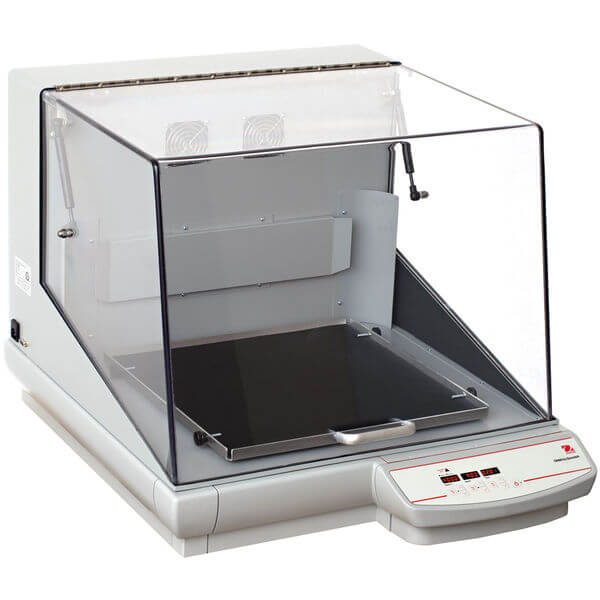

Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Specifications
| Motion | Orbital, 25 mm |
| Capacity | 50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm |
| Temp. Range | Ambient +5°C – 65°C |
| Uniformity | ± 0.5°C at 37°C |
| Speed Range | 15 rpm – 500 rpm |
| Tray Size | 18 in x 18 in (457 mm x 457 mm) (LxW) |
| Calibration | Temperature calibration |
| Communication | RS232 |
| Control | Digital |
| Dimensions | 32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW) |
| Drive System | Triple Eccentric; Brushless DC Motor |
| Inner Dimensions | 20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW) |
| Net Weight | 224.07 lb (101.6 kg) |
| Power | 230V, 8A, 50/60Hz |
| Power Consumption | 800 W |
| Safety Certification | TUV |
| Speed Accuracy | Above 100rpm +/- 1%, Below 100rpm /- 1 rpm |
| Speed Range | 15 rpm – 500 rpm |
| Timer | 1 second – 160 hours |
| Tray Construction | Aluminum |
| Working Environment | 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing) |
