KH 220 Data Logger Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure / Light

Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure / Light

OVERVIEW

• Software for configuration and data visualisation freely downloadable
• Software for configuration and data processing available as option
• Storage capacity of 1 000 000 points
• Fast data downloading (18 000 points/s)
• Up to 5 recordable parameters simultaneously
• 2 configurable setpoint alarms for each channel
• 2 lines LCD screen
• F Magnetic mounting

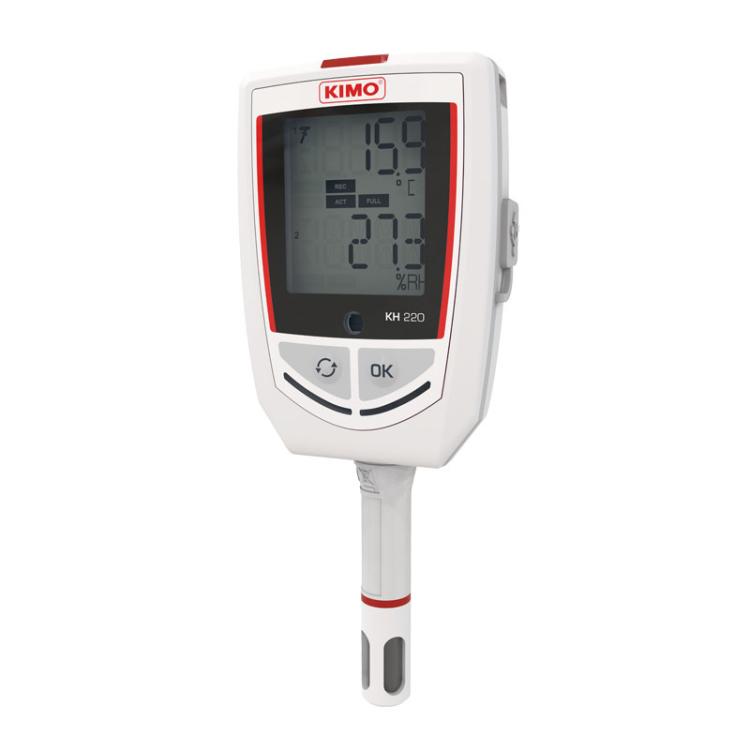

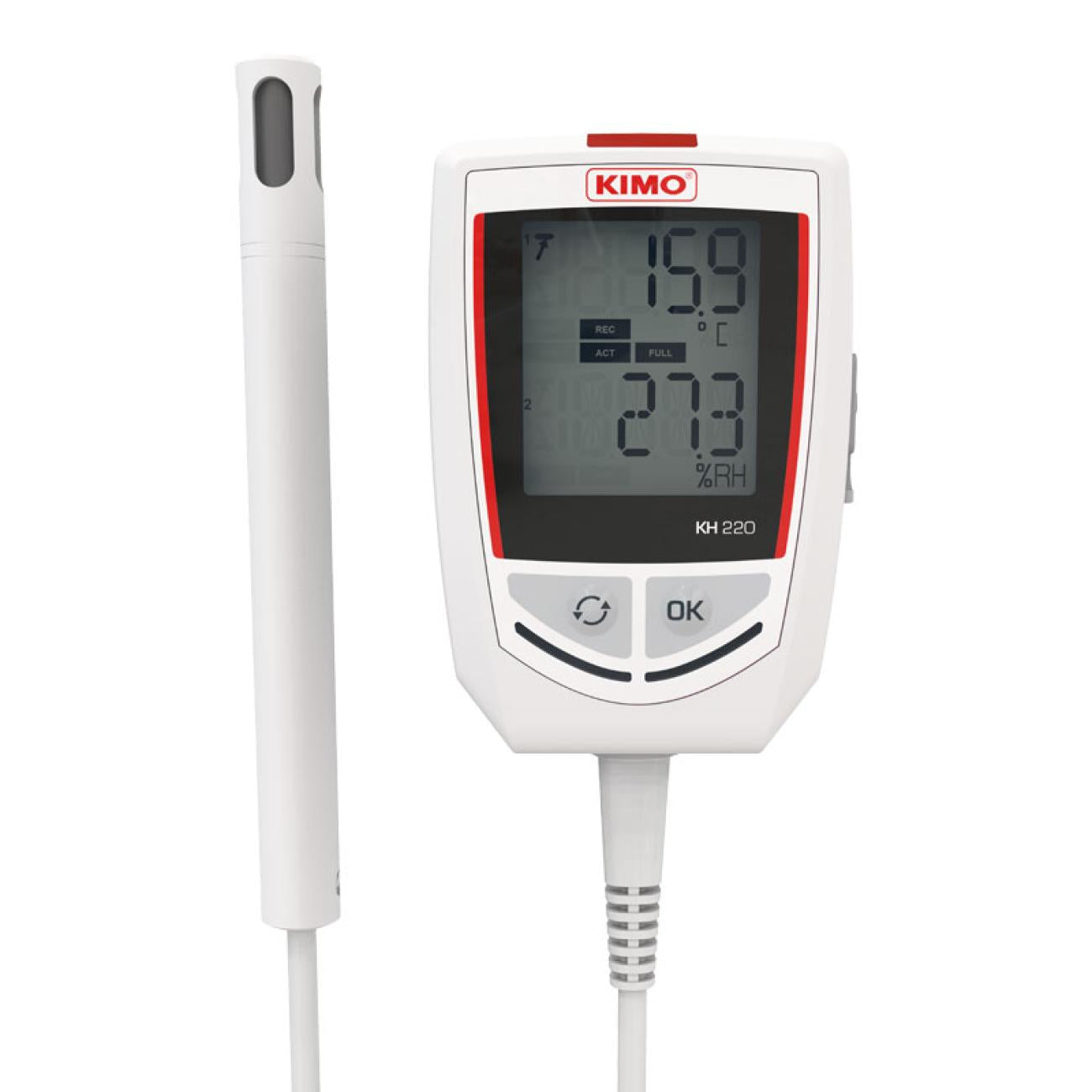

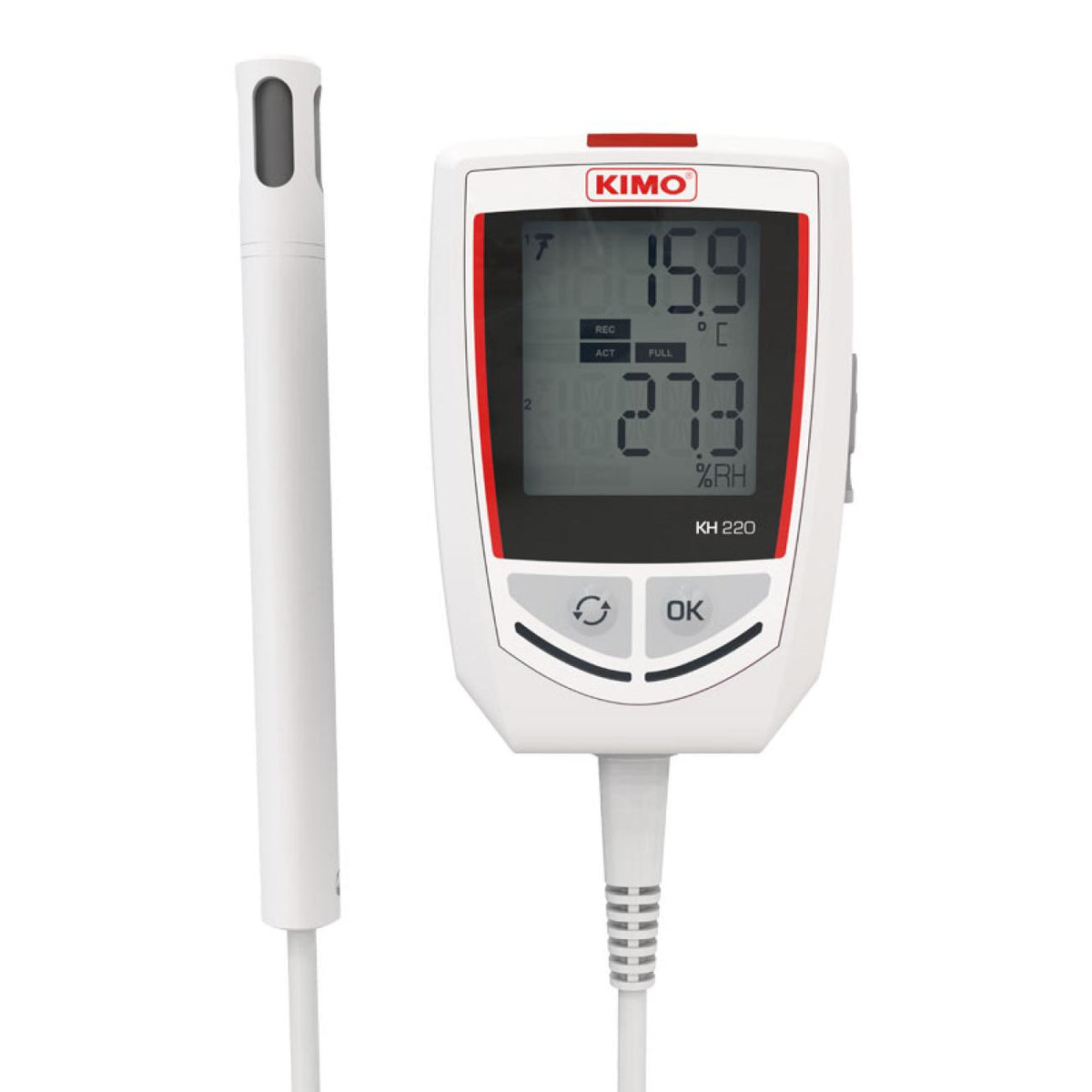

The KH 220 Multifunction Data Logger is the answer when up to five parameters need to be recorded simultaneously.

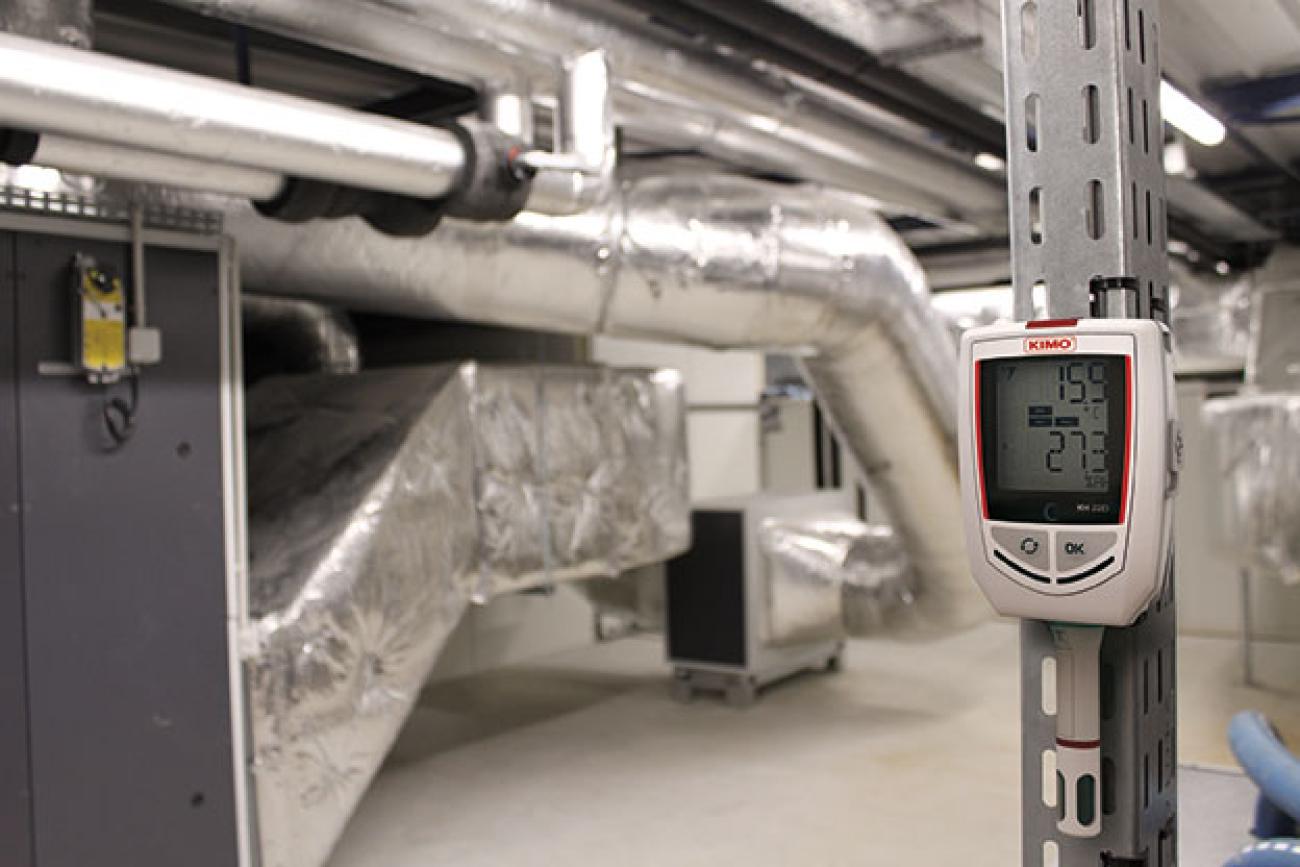

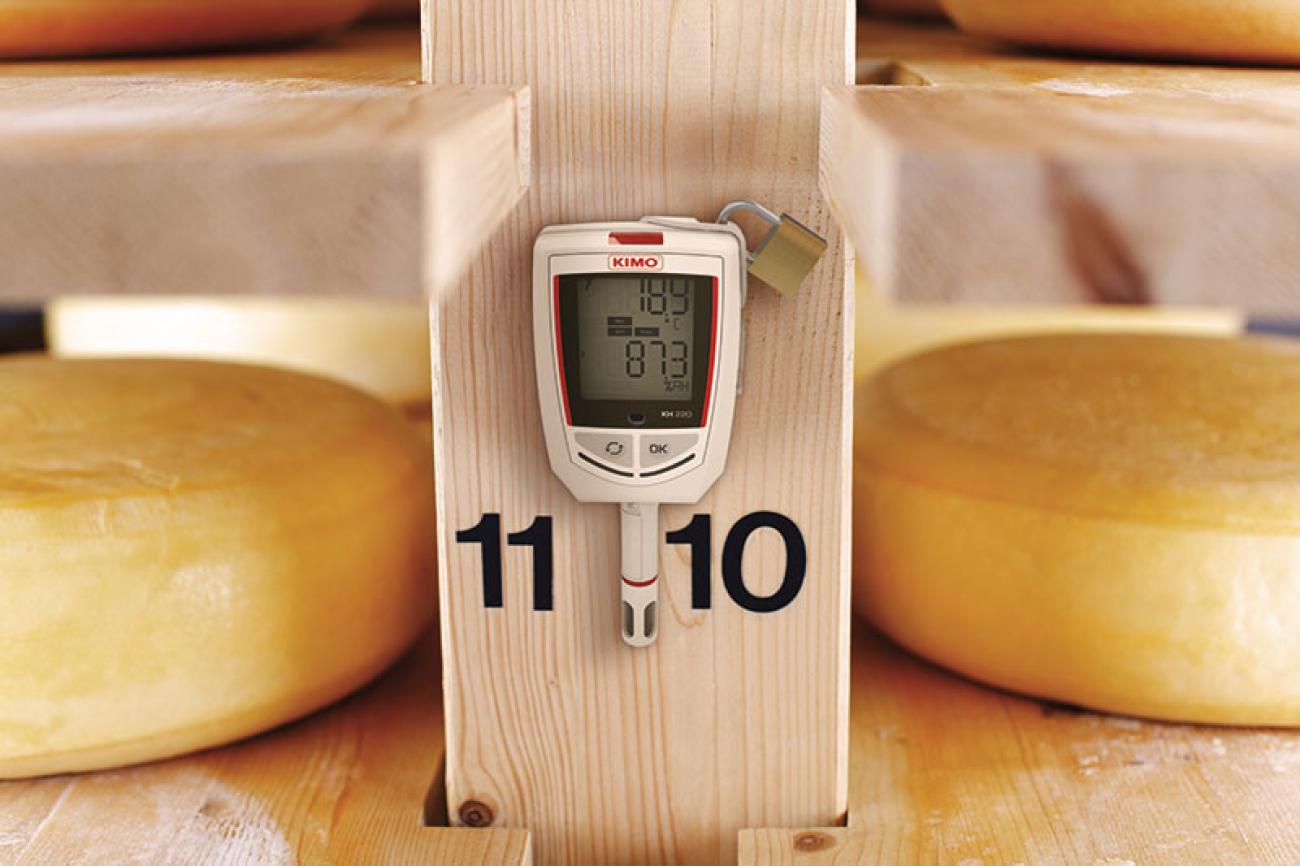

Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Measure details

• Frequency of measurements min
  1 seconds
• Frequency of measurements max
  24 hours
• Number of record points
  1 000 000
• Units
  °F, °C, % RH, A, bar, fc, lux, mA, mV, V, °Ftd
• Alarm
  2 configurable setpoint alarms

Technical details

• Parameters
  Current

  Humidity

  Impulsion

  Light

  Temperature

  Voltage

  Water pressure
• Displays
  2-line display
• IP Protection
  IP 20
• Battery life
  4 years
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  1AA lithium 3.6V battery
• Sensors
  External sensors

  Internal sensors
• Magnetise case
  Yes
• Securable mounting
  Yes, wall bracket & lock included

Instrument Dimensions

• Length
  93.2 mm
• Width
  65.2 mm
• Height
  30.5 mm
• Weight
  115 g



Operating temperature

• Min
  -20.00 °C
• Max
  70.00 °C

Storage temperature

• Min
  -20.00 °C
• Max
  50.00 °C

•
