KT 220-O Data Logger Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure
Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure
Reference: KT 220-O
Display: Yes
Internal sensor: 1: Temperature
External sensor: 1 input for universal probe
Parameters: Temperature, humidity, current, voltage, impulsion, water pressure
OVERVIEW
• Software for configuration and data visualisation freely downloadable
• Software for configuration and data processing available as option
• Storage capacity of 1 000 000 points
• Fast data downloading (18 000 points/s)
• Up to 5 recordable parameters simultaneously
• 2 configurable setpoint alarms for each channel
• 2 lines LCD screen
• F Magnetic mounting

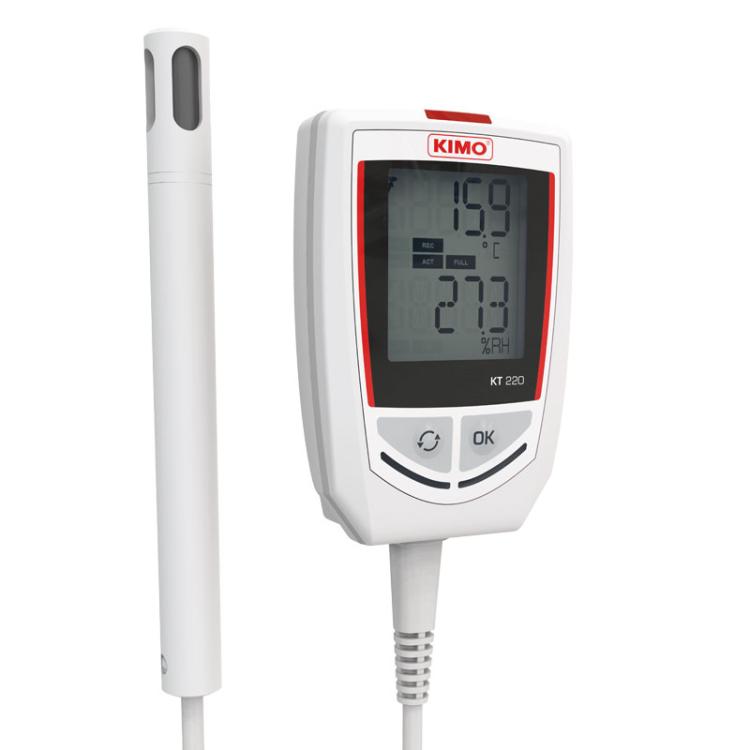

The KT 220 Multi-Function Data Logger is the answer when up to three parameters need to be recorded simultaneously.
Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.
-
Measure details
-
Frequency of measurements min1 seconds
-
Frequency of measurements max24 hours
-
Number of record points1 000 000
-
Units°F, °C, % RH, A, bar, mA, mV, V, °Ftd
-
Alarm2 configurable setpoint alarms
Technical details
-
ParametersCurrentHumidityImpulsionTemperatureVoltageWater pressure
-
Displays2-line display
-
IP ProtectionIP 65
-
Battery life4 years
-
StandardsUKCA2011/65/EU RoHS II2012/19/EU WEEE2014/30/EU EMC2014/35/EU Low Voltage
-
Power supply1 AA lithium 3.6V battery
-
SensorsExternal sensorsInternal sensors
-
Magnetise caseYes
-
Securable mountingYes, wall bracket & lock included
Instrument Dimensions
-
Length93.2 mm
-
Width65.2 mm
-
Height30.5 mm
-
Weight115 g
Operating temperature
-
Min-40.00 °C
-
Max70.00 °C
Storage temperature
-
Min-20.00 °C
-
Max50.00 °C
-
