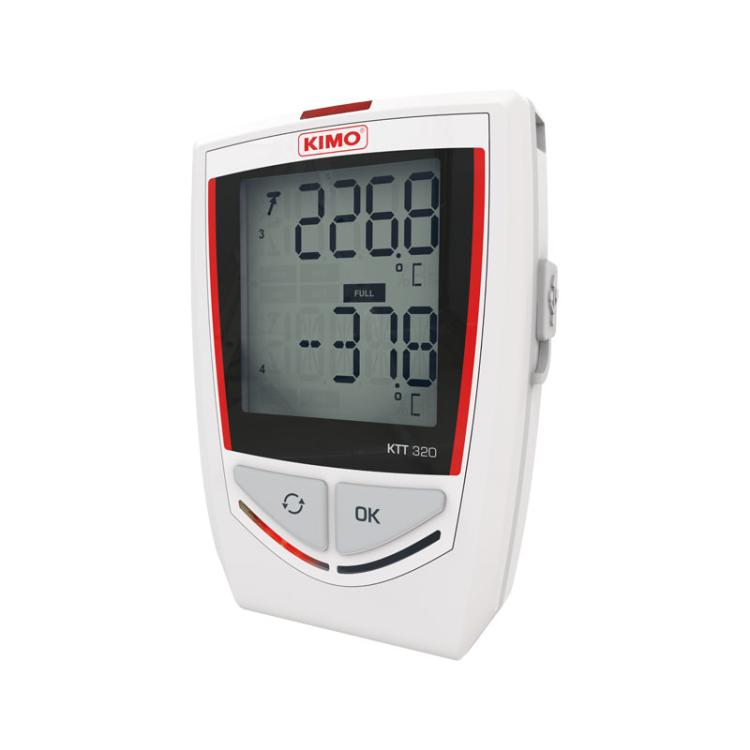

KTT 320 Data Logger Temperature

 Temperature

OVERVIEW

• Software for configuration and data visualisation freely downloadable
• Software for configuration and data processing available in option
• Safety lock wall mount with inviolability system
• Storage capacity of 2,000,000 points
• Fast data downloading: 18,000 points/s
• Up to 5 recordable parameters simultaneously
• 2 configurable setpoint alarms for each channel
• 2 lines LCD screen
• Wireless connection for smartphones and tablets (Android and iOS)
• Magnetic mounting

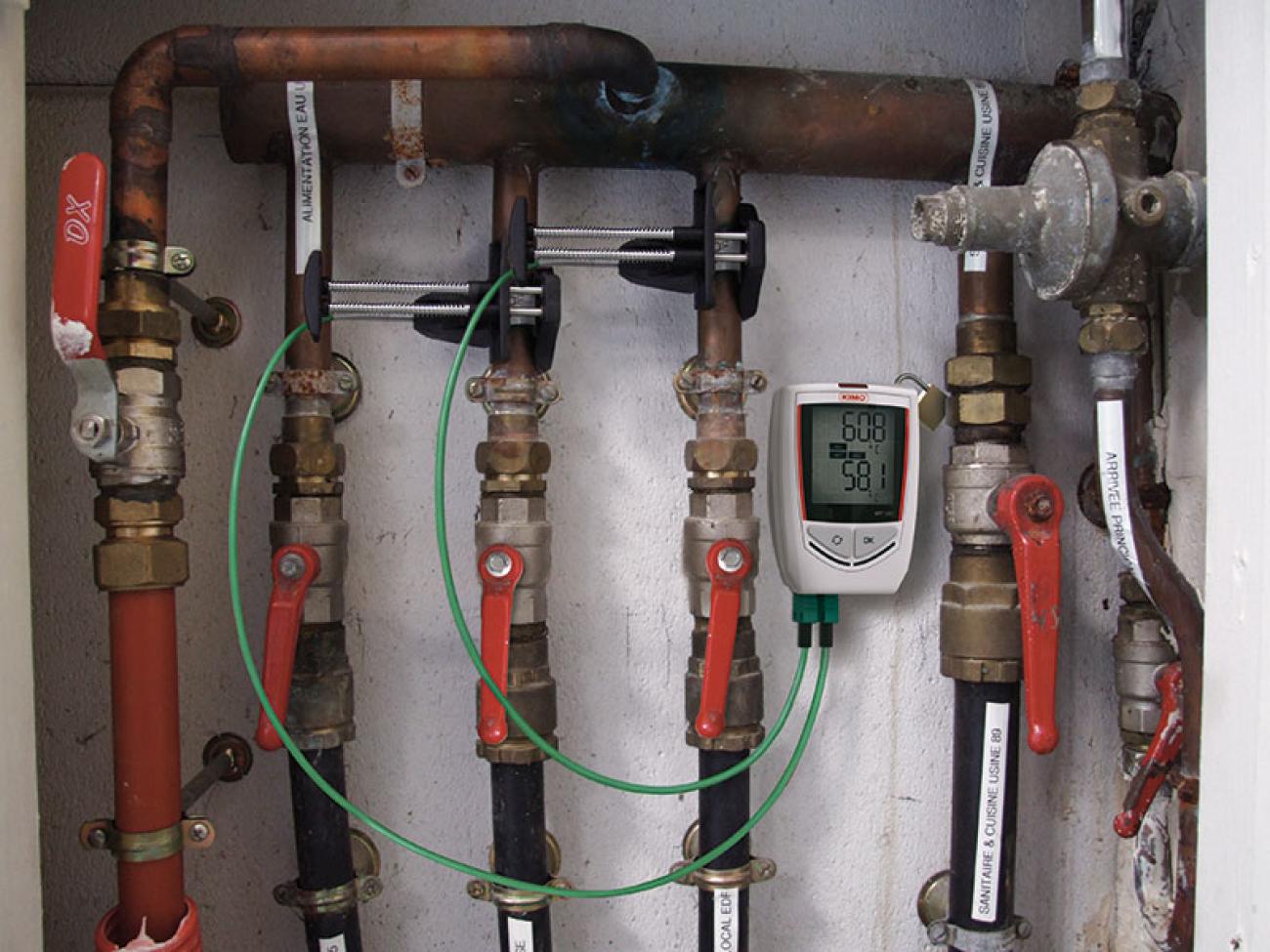

When easy wireless connection and a wide range of temperature readings are needed, the KTT 320 Thermocouple Data Logger is the key with its four thermocouple inputs.

Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Measure details

• Frequency of measurements min
  1 seconds
• Frequency of measurements max
  24 hours
• Number of record points
  2 000 000
• Units
  °C
• Alarm
  2 configurable setpoint alarms

Technical details

• Parameters
  Temperature
• Displays
  2-line display
• IP Protection
  IP 54
• Battery life
  5 years
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Wireless connection
  1
• Power supply
  2 lithium double AA 3.6 V batteries EN
• Sensors
  External sensors
• Magnetise case
  Yes
• Securable mounting
  Yes, wall bracket & lock included

Instrument Dimensions

• Length
  110.2 mm
• Width
  79 mm
• Height
  35.4 mm
• Weight
  200 g



Operating temperature

• Min
  -20.00 °C
• Max
  70.00 °C

Storage temperature

• Min
  -20.00 °C
• Max
  50.00 °C
