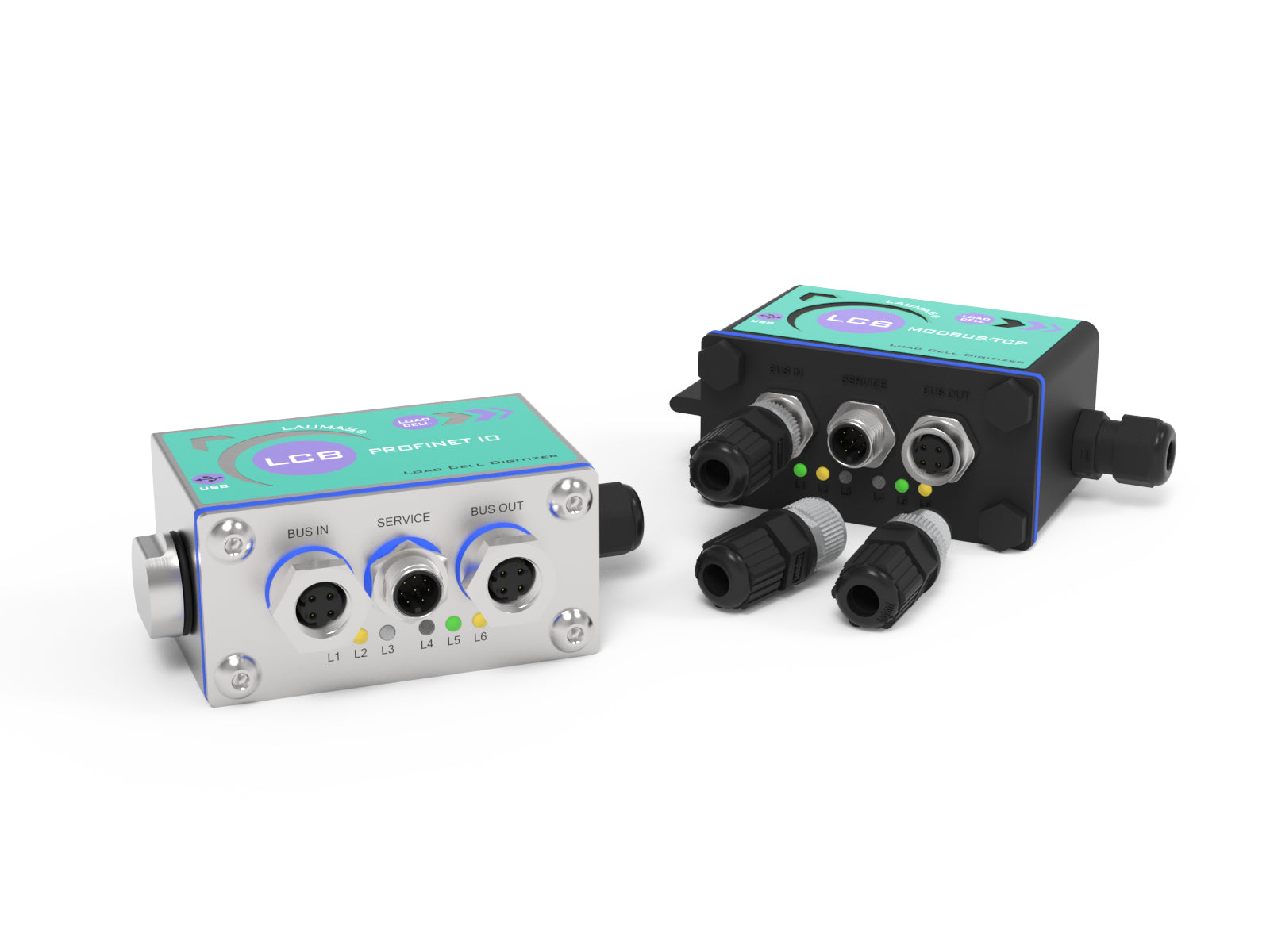

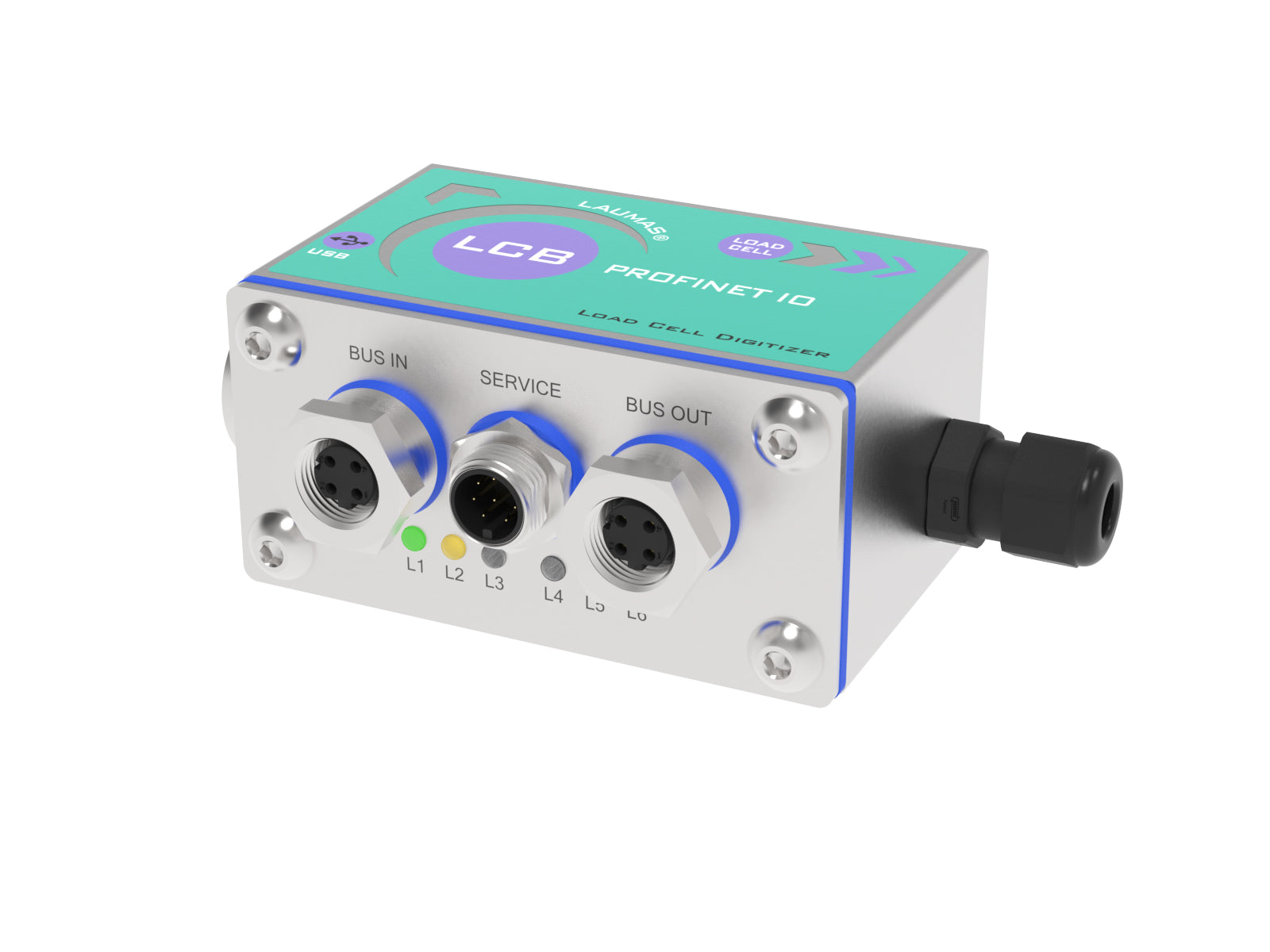

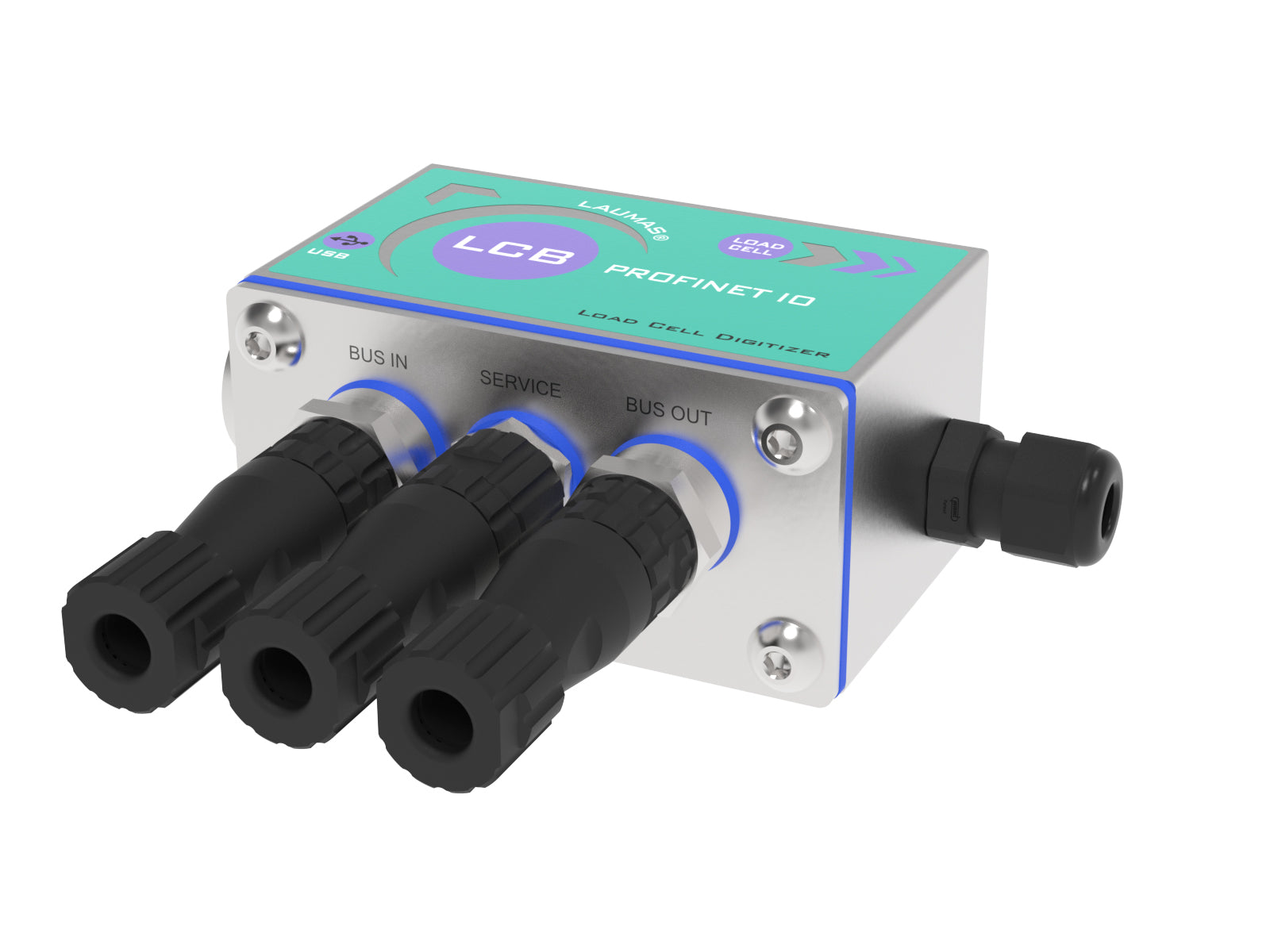

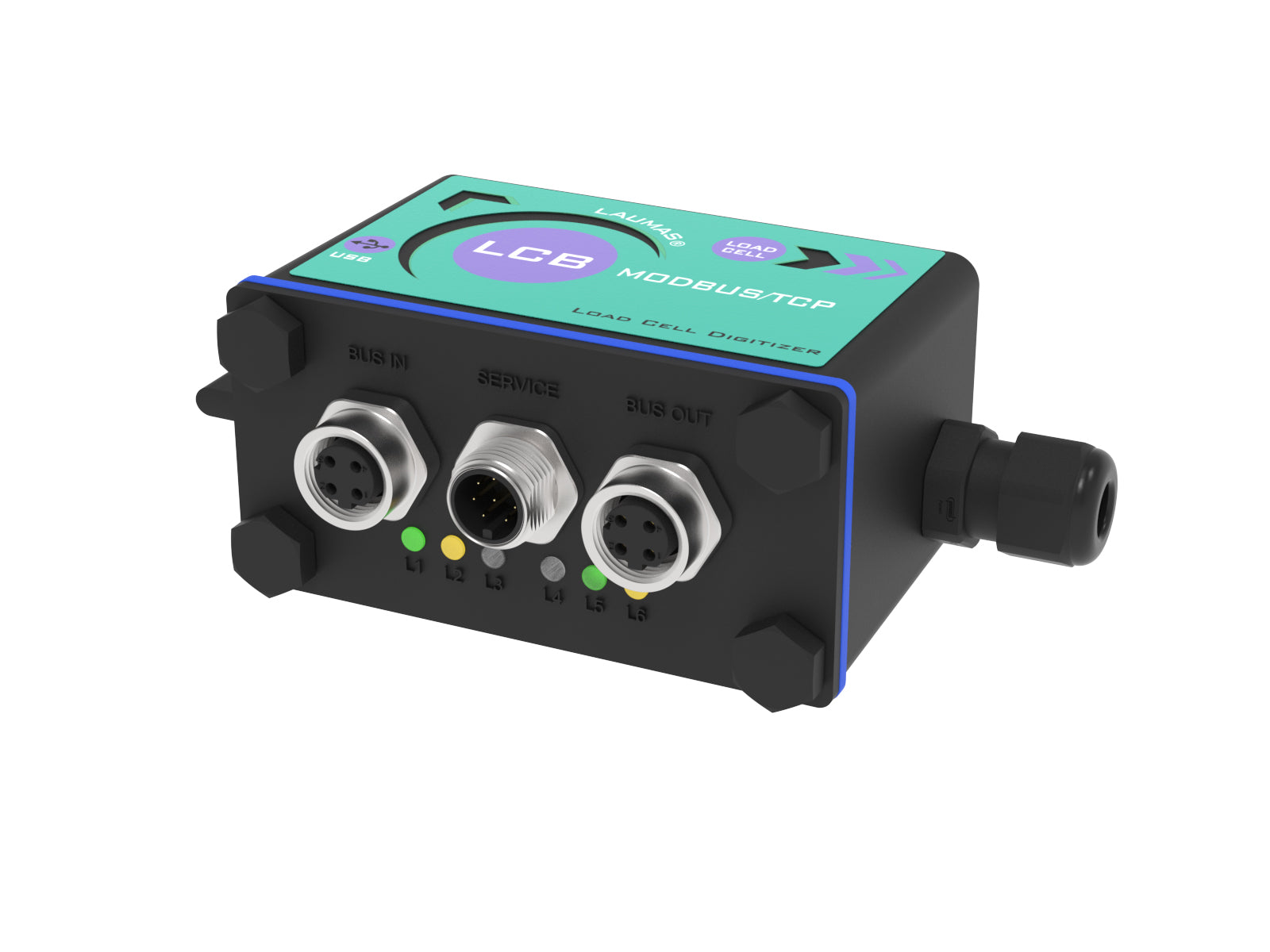

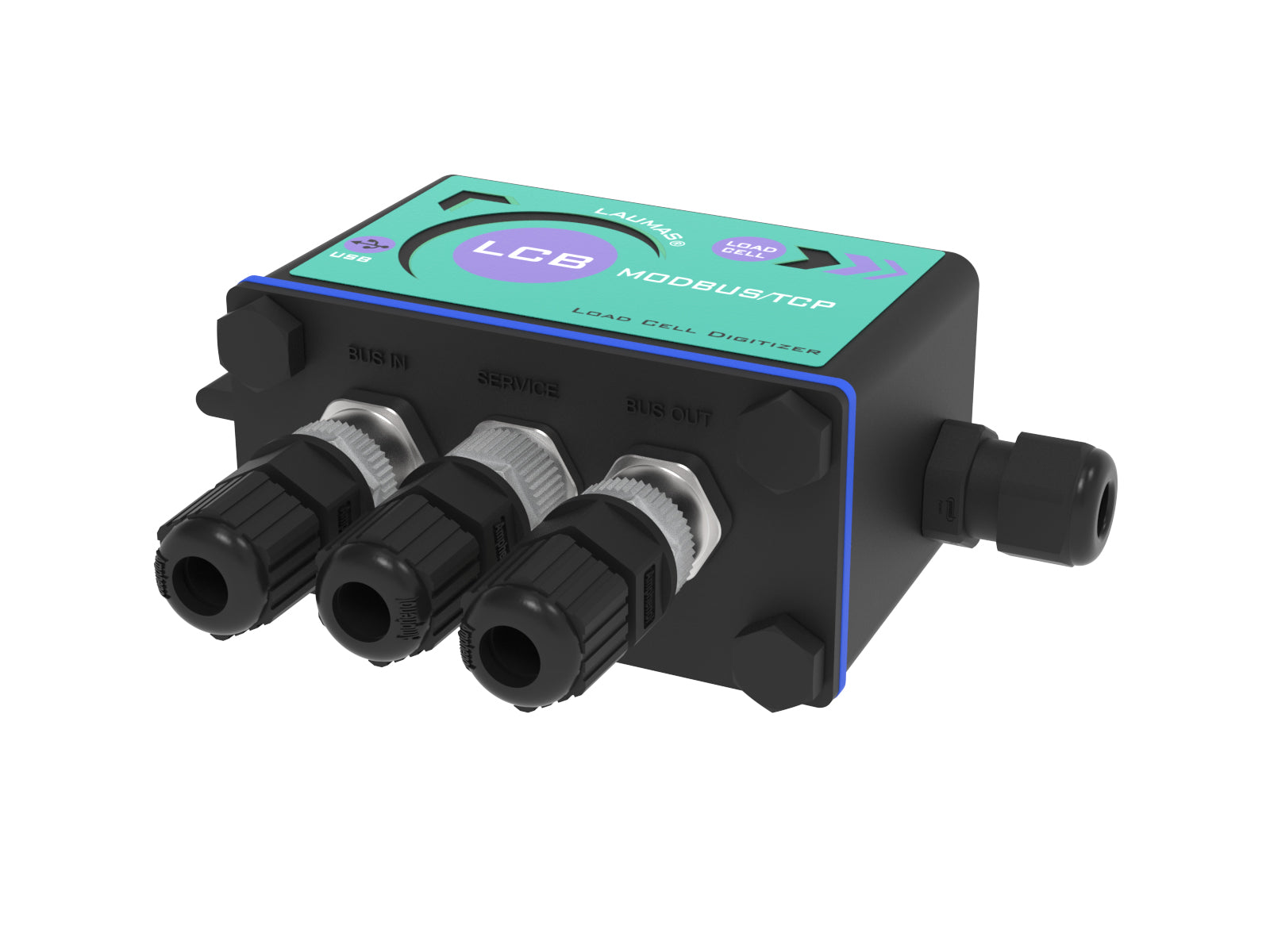

LCB Universal load cell digitizer

LCB Digitizer transforms an analog load cell (output mV/V) into digital and can also be used on existing load cells or strain gauge sensors. Designed for an assembly/wiring integral with the load cell body, it can be connected by fieldbus to PLCs of the most important international brands. The weight calculation frequency reaches up to 500 values a second and also the update frequency of the data on the fieldbus can reach the maximum speed of 500 updates a second, when using the PROFINET, EtherNet/IP and EtherCAT buses.

• Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE Field Basic, SERCOS III, IO-LINK.

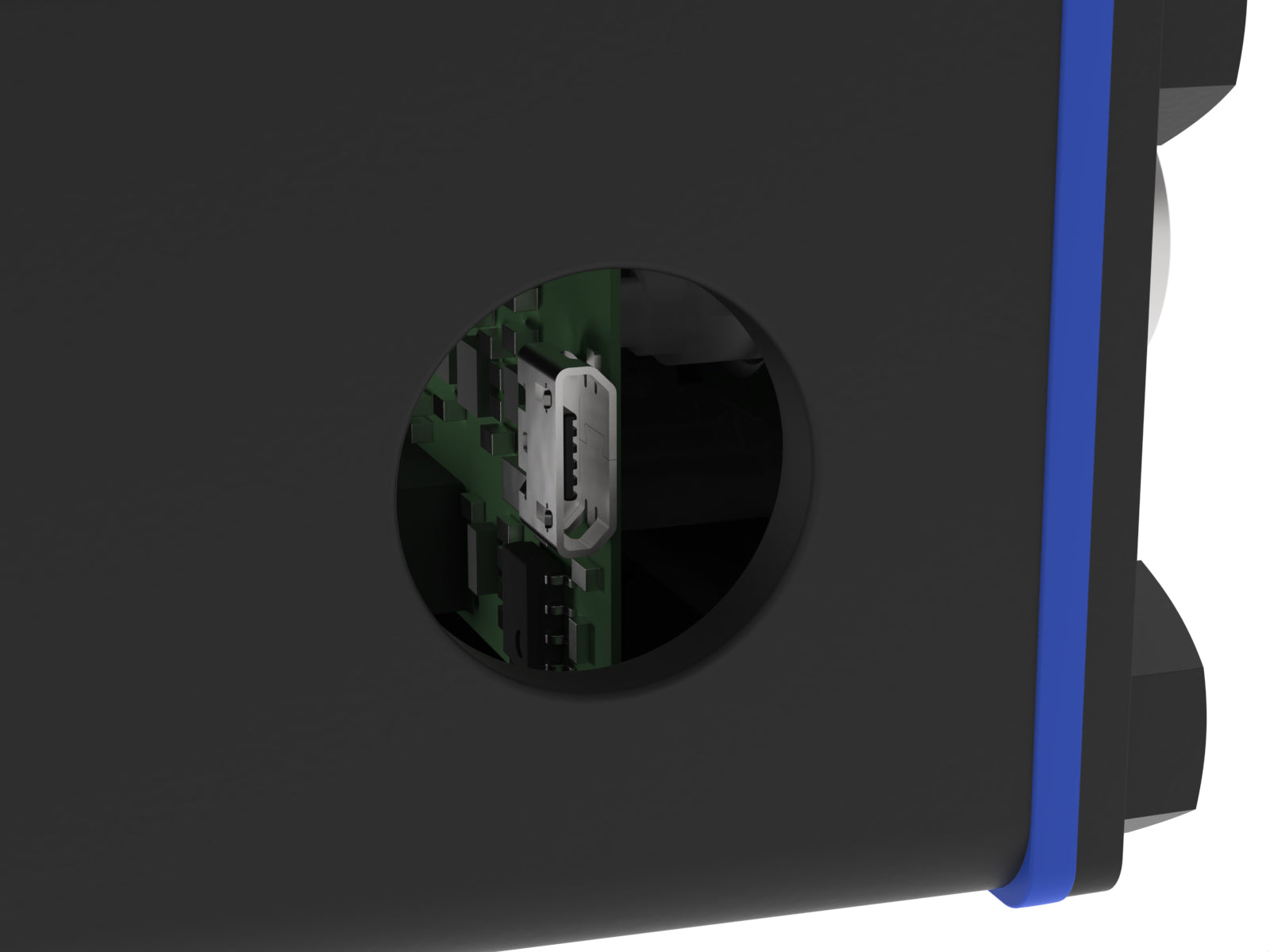

• Micro USB port
• 16-bit Analog output: 0/4-20 mA; 0-5/10 V (optional)
• RS485 port (optional)
• Direct connection between RS485 and RS232 without converter.
• 2 logic inputs, 3 relay outputs
• Single loading batchings, max 99 formulas

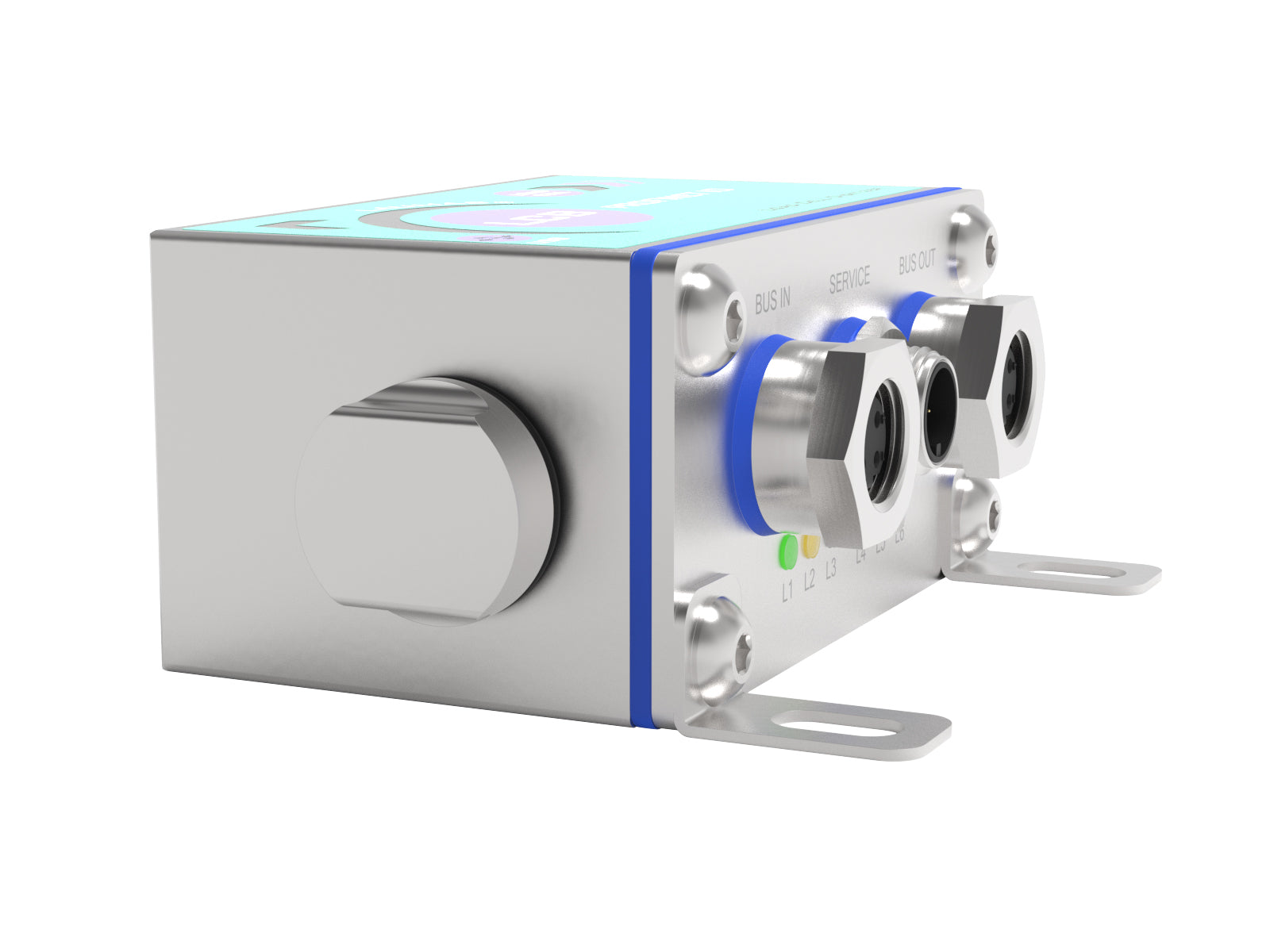

• Mounting: wired or integral to the load cell body via standard ¼ GAS fitting

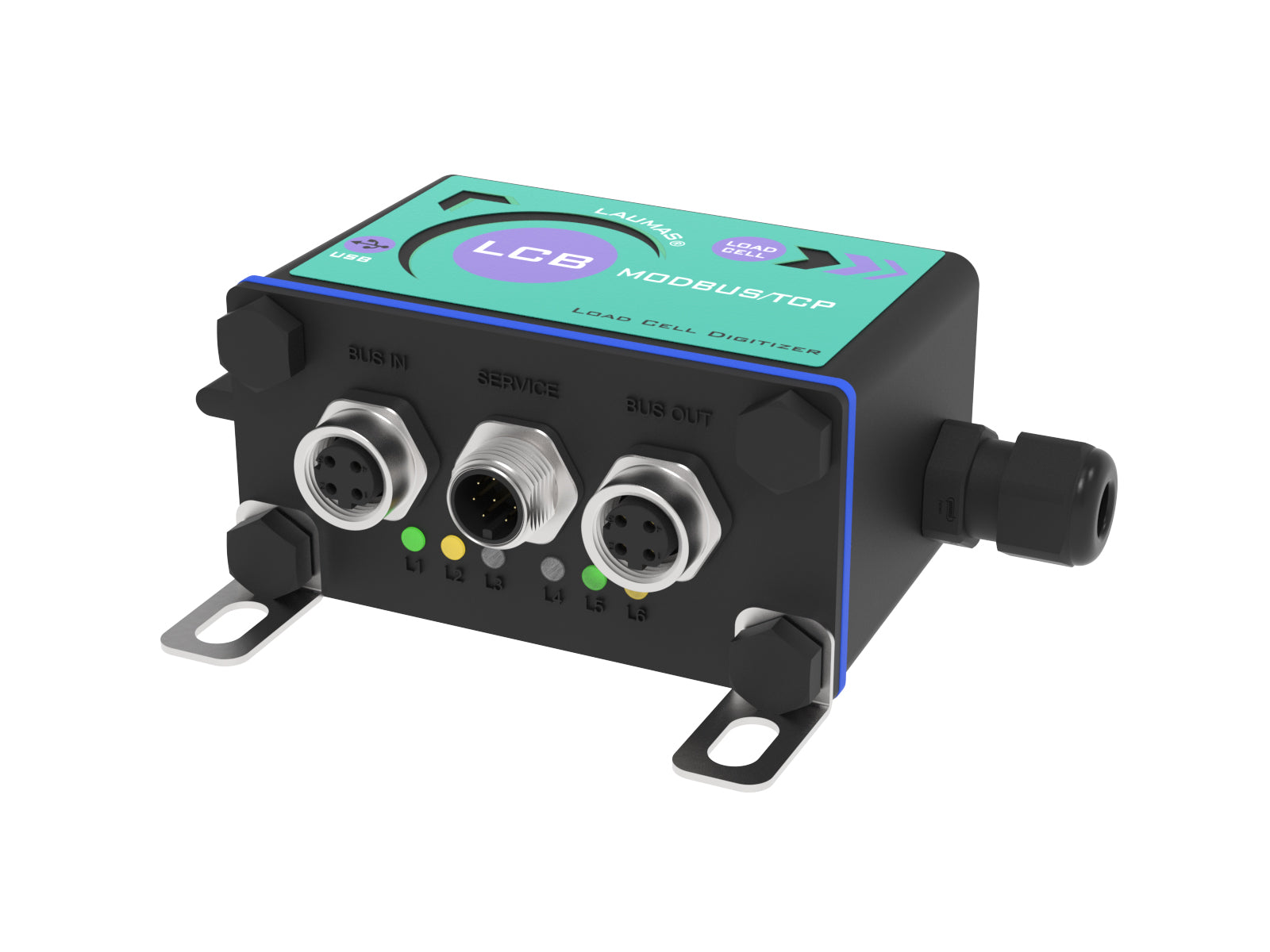

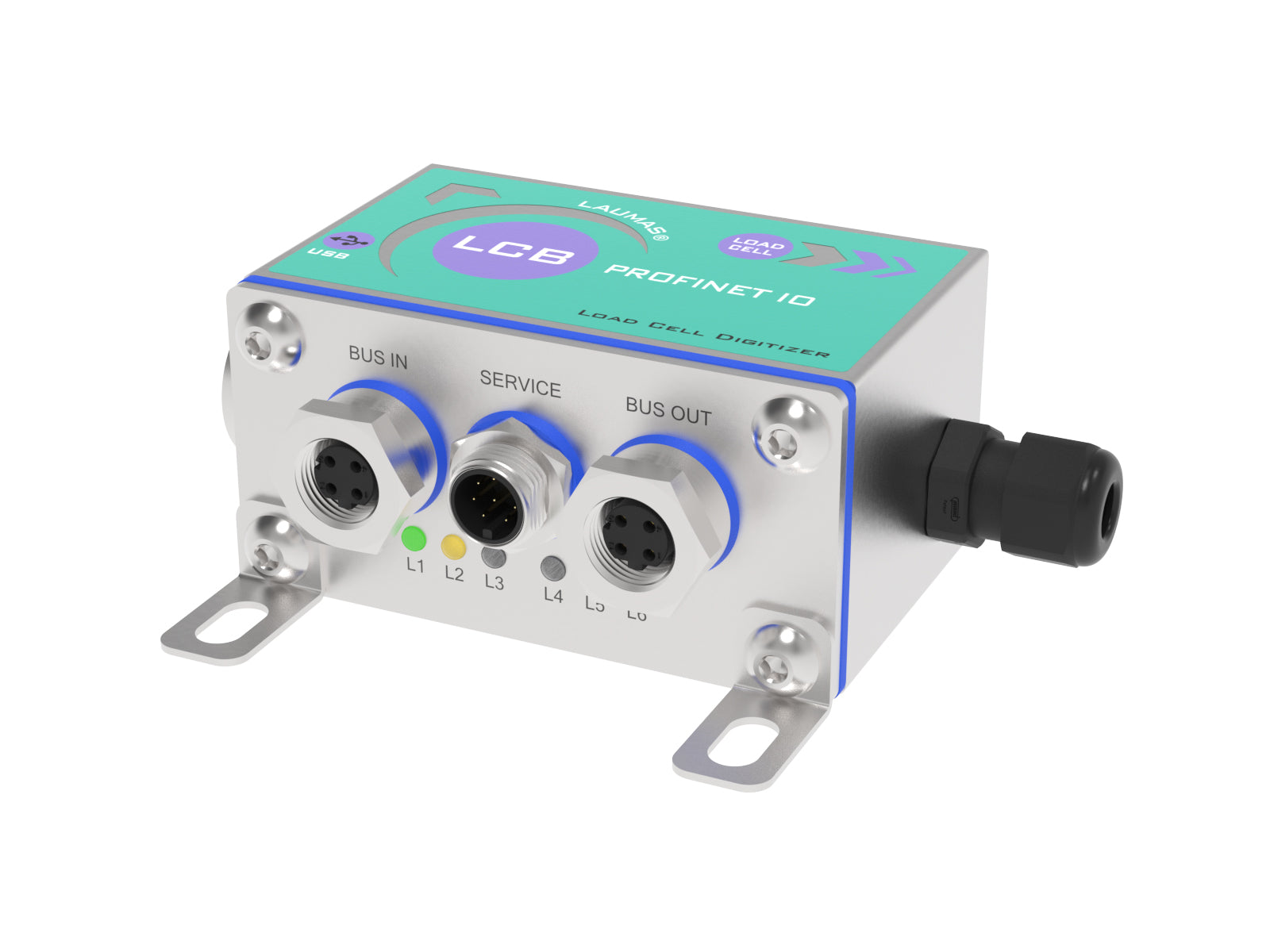

• Suitable for wall mounting
