Description
- External impact sensor standard (Type D)
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-DB offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function

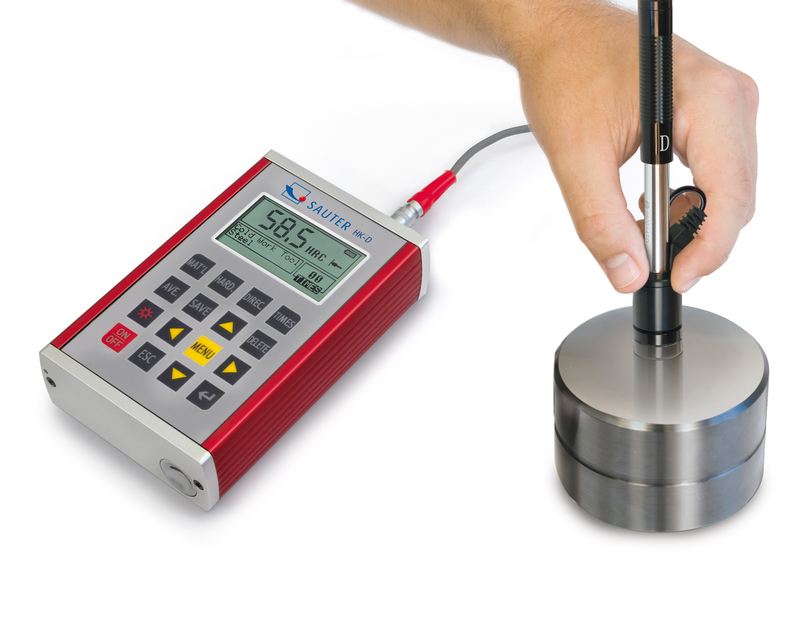

- Hardness comparison block, hardness approx. 800 HLD, included in delivery
- Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB
- Internal memory for up to 600 data groups, with up to 32 values per group forming the average value of the group
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- Matrix display: Backlit multi-function display for all relevant functions at a glance
- Robust metal housing

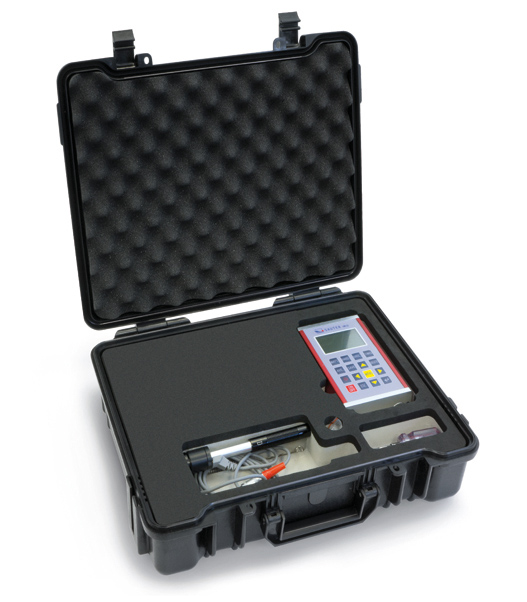

- Delivered in a robust carrying case
Technical Data
| Measuring range Leeb | 170 – 960 |
| Readability [d] hardness (Hlx) | 1 |
| Tolerance (% of [Max]) | 1% |
| Units | HL, HV, HB, HRB, HRC |
| Hardness scales | HLD |
| Test object thickness [Min] | 3 mm |
| Test object minimum weight [Min] | 2 kg |
| Battery | 2×1.5 V AA |
| Memory function | |
| Statistic function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | cast aluminium |
| Measuring probe diameter | 2 cm |
| Measuring probe length | 14,6 cm |
| Test block inclusive | |
| Product family | HK |
| GTIN/EAN number | 4045761190627 |
