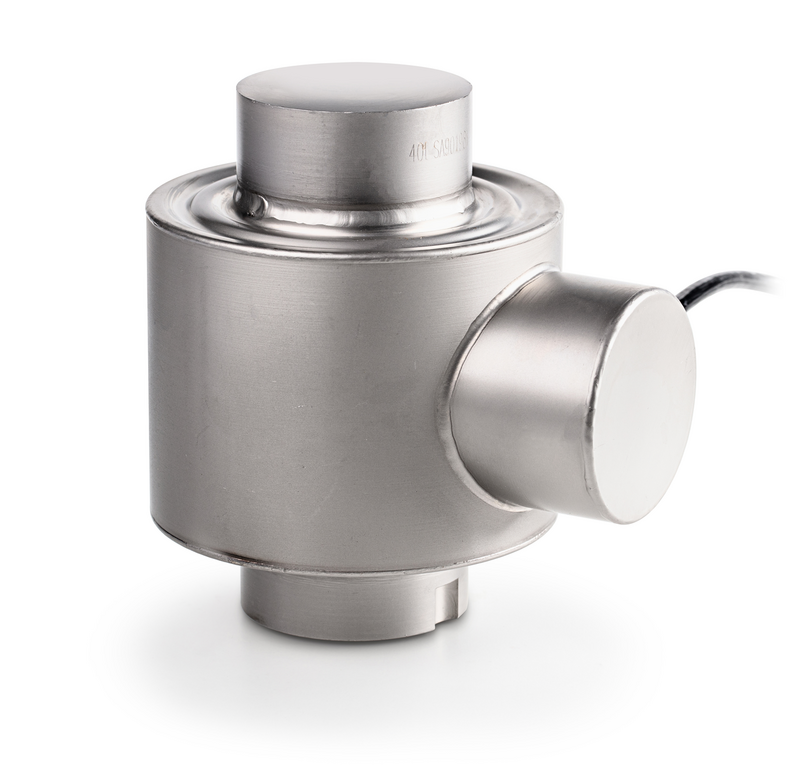

Load/force measuring cell CD 20-3P1, Nominal load 20000 kg / 200 kN
Regular price
460.00 € (ex VAT)
Description
- RoHS compliant
- Area of application: Measuring mass as well as compressive force
- Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test stands
Technical Data
| Weighing capacity [Max] | 20000 kg |
| Measuring range force [Max] (N) | 200 kN |
| Design | Load cell |
| Directions of force | compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,023% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | steel, stainless |
| Load cell connection | 4-wire |
| Cable length | 15 m |
| Mounting - force application | Pressure piece |
| Mounting - force dissipation | Pressure piece |
