Sauter

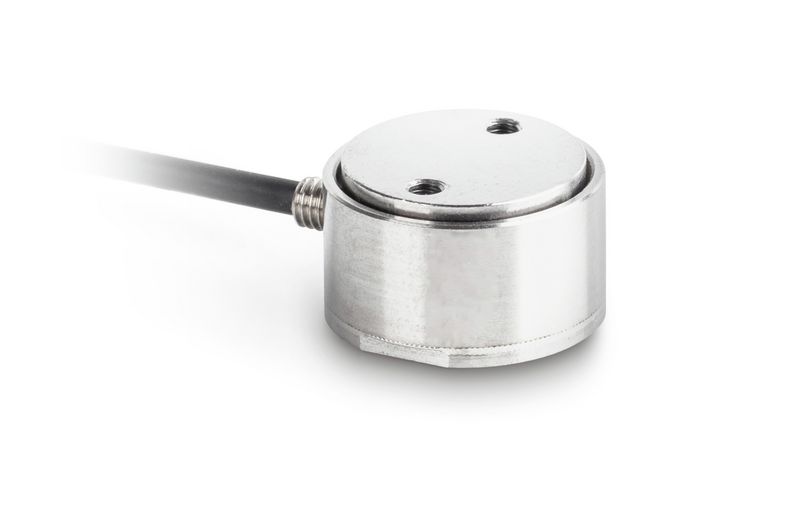

Load/force measuring cell CO 0.5-Y5, Nominal load 500 g / 5 N

SKU: CO 0.5-Y5
365.00 € (ex VAT)

Description

  • CE and RoHS compliant
  • Very low design
  • Suitable for test stands, force gauges, automation systems, etc.

Technical Data

Weighing capacity [Max] 500 g
Measuring range force [Max] (N) 5 N
Design round
Directions of force tension, compression
Measuring applications force, mass
Load cell - Combined error 0,1%
Load cell OIML class G1
Load cell - characteristic value - nominal 2 mV/V
IP protection - complete device IP66
Material steel, stainless
Load cell connection 4-wire
Cable length 2 m
Mounting - force application 2 × threaded hole M2
Mounting - force dissipation 2 × threaded hole M2
