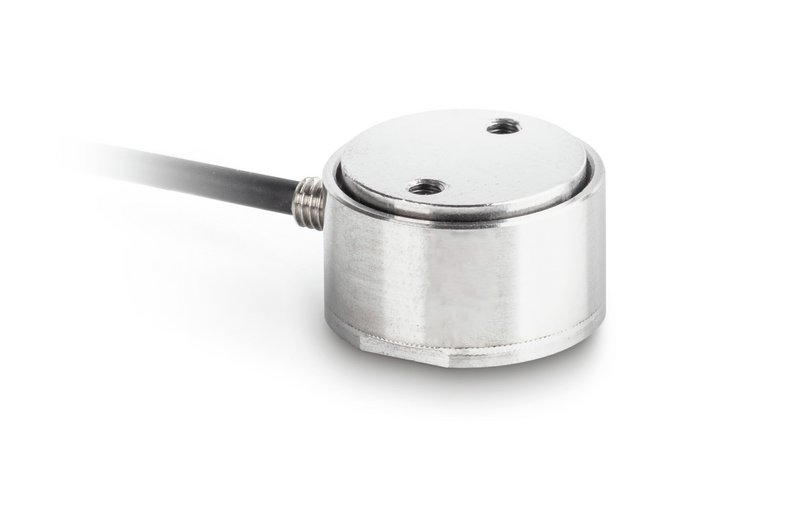

Description
- CE and RoHS compliant
- Very low design
- Suitable for test stands, force gauges, automation systems, etc.
Technical Data
Weighing capacity [Max] 1 kg Measuring range force [Max] (N) 10 N Design round Directions of force tension, compression Measuring applications force, mass Load cell - Combined error 0,1% Load cell OIML class G1 Load cell - characteristic value - nominal 2 mV/V IP protection - complete device IP66 Material steel, stainless Load cell connection 4-wire Cable length 2 m Mounting - force application 2 × threaded hole M2 Mounting - force dissipation 2 × threaded hole M2
