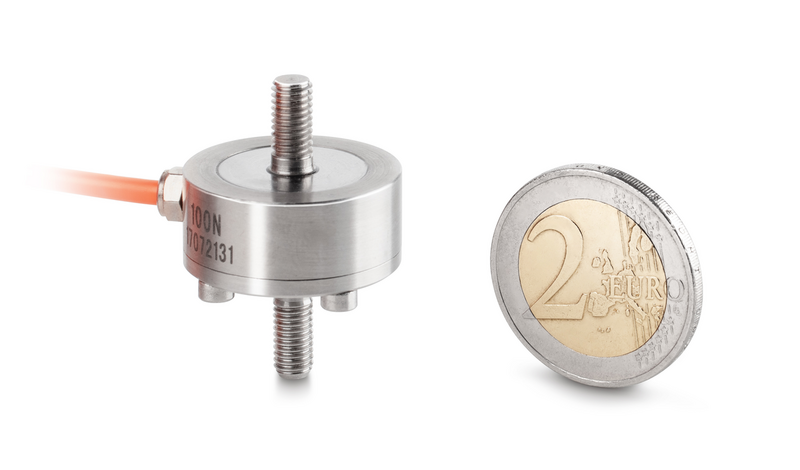

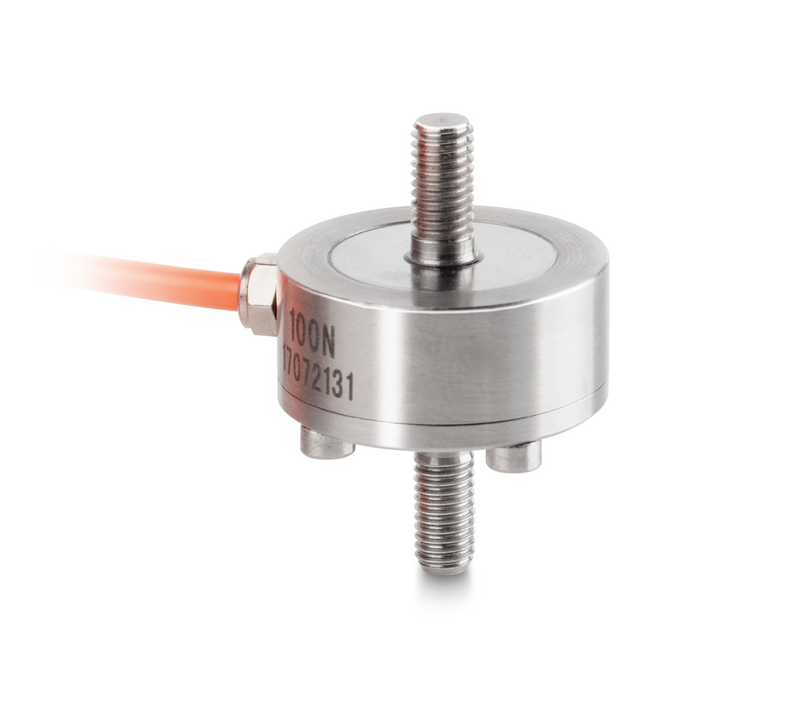

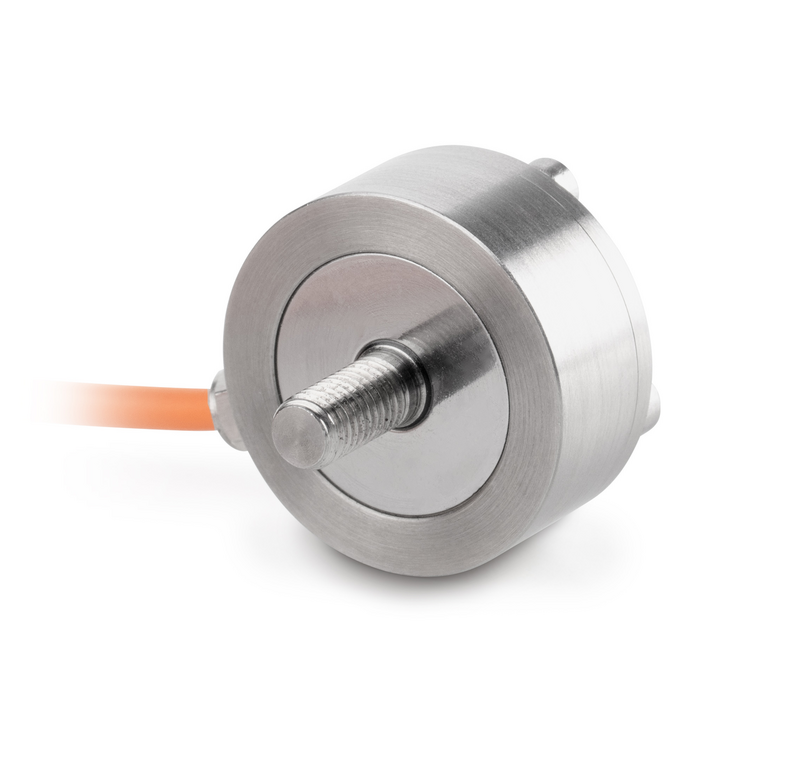

Load/force measuring cell CO 10-Y3, Nominal load 10 kg / 100 N
Regular price
380.00 € (ex VAT)
Description
- High precision (comprehensive error 0,1% F.S.)
- RoHS compliant
- Area of application: Tensile and compressive applications, mass and force measurement
- Suitable for weight measurement as well as force and force test stands
Technical Data
| Weighing capacity [Max] | 10 kg |
| Measuring range force [Max] (N) | 100 N |
| Design | Tension-/compression rod |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,1% |
| Load cell OIML class | G2 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP66 |
| Material | steel, stainless |
| Load cell connection | 4-wire |

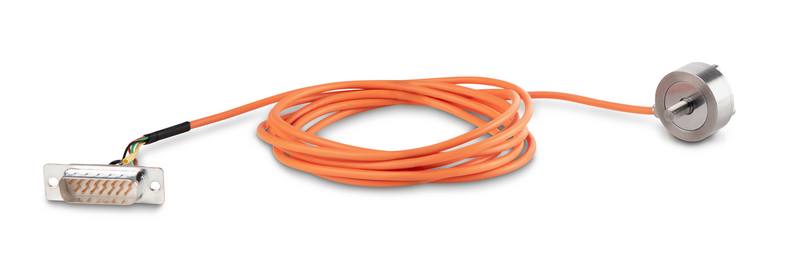

| Cable length | 2 m |
| Mounting - force application | External thread M5 |
| Mounting - force dissipation | External thread M5 |
