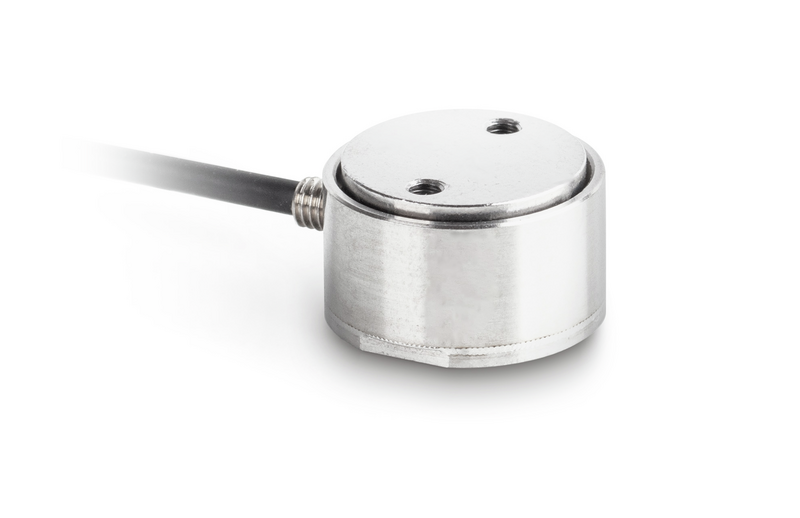

Load/force measuring cell CO 10-Y5, Nominal load 10 kg / 100 N
Regular price
365.00 € (ex VAT)
Description
- CE and RoHS compliant
- Very low design
- Suitable for test stands, force gauges, automation systems, etc.
Technical Data
| Weighing capacity [Max] | 10 kg |
| Measuring range force [Max] (N) | 100 N |
| Design | round |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,1% |
| Load cell OIML class | G1 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP66 |
| Material | steel, stainless |
| Load cell connection | 4-wire |
| Cable length | 2 m |
| Mounting - force application | 2 × threaded hole M2 |
| Mounting - force dissipation | 2 × threaded hole M2 |
