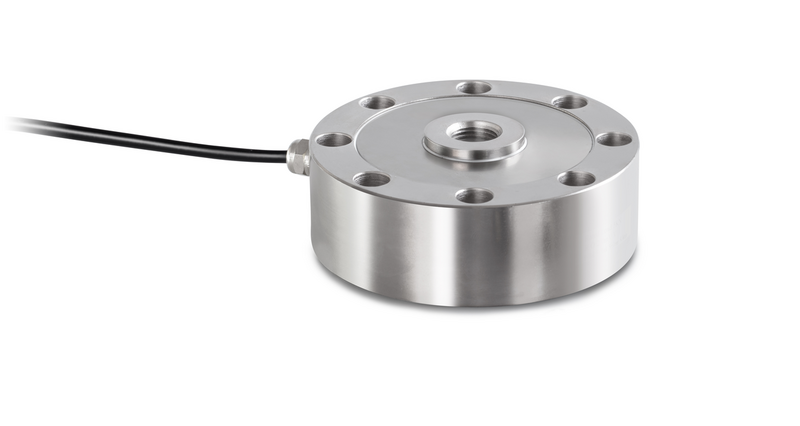

Load/force measuring cell CR 1000-1Y1, Nominal load 1000 kg / 10 kN
Regular price
270.00 € (ex VAT)
Description
- High precision (comprehensive error 0,05% F.S.)
- RoHS compliant
- Area of application: for weight, tensile and compressive force measurement
- Suitable for weight measurement as well as force and force test stands
- Force transmission via pressure piece or threaded hole

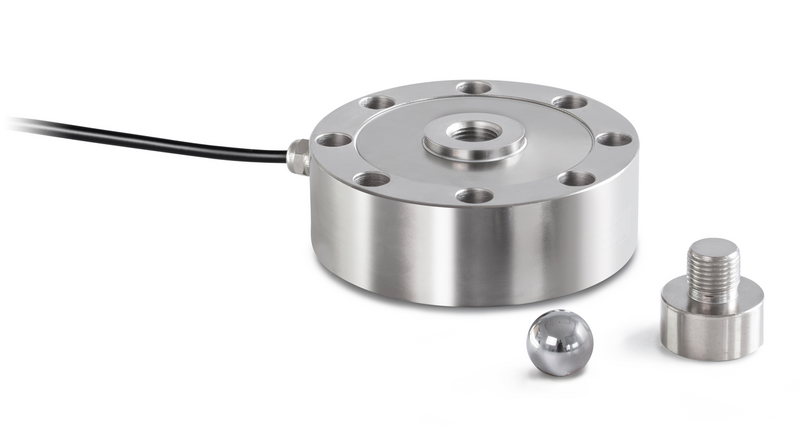

- Pressure piece included with delivery
Technical Data
| Weighing capacity [Max] | 1000 kg |
| Measuring range force [Max] (N) | 10 kN |
| Design | Load cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,05% |
| Load cell OIML class | C1 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | steel |
| Load cell connection | 4-wire |
| Cable length | 3 m |

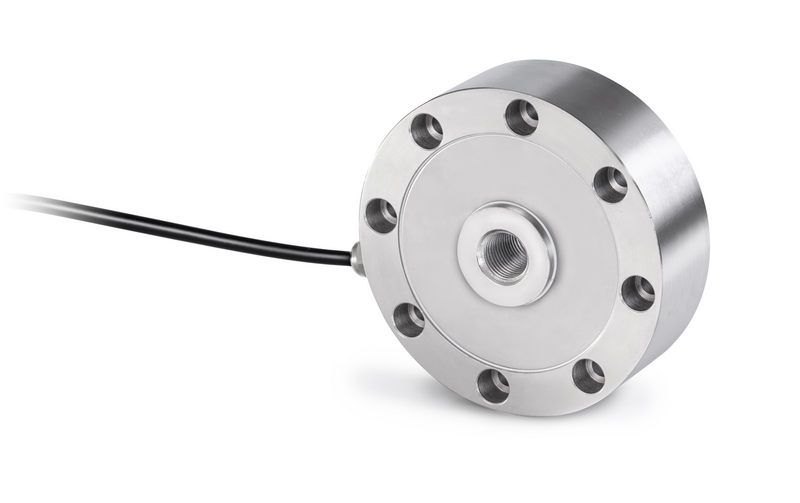

| Mounting - force application | Pressure piece, Threaded hole M16 × 1,5 |
| Mounting - force dissipation | 8 × through hole Ø 6,5 mm |
