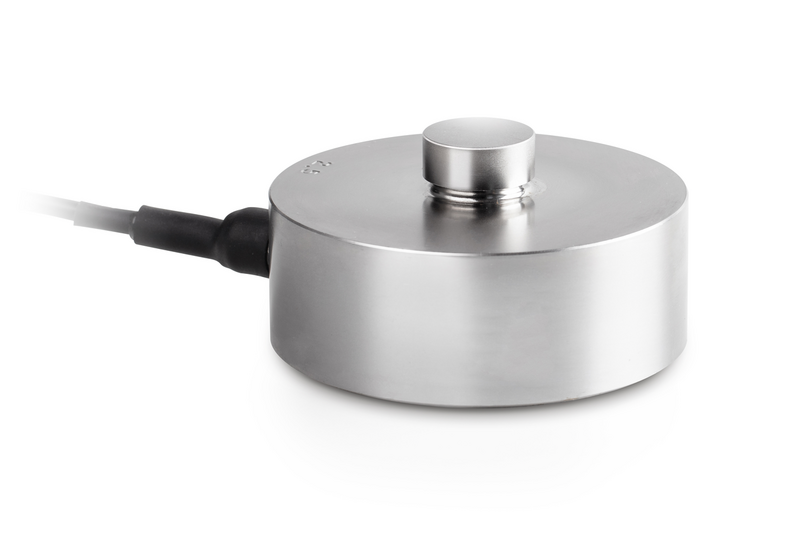

Load/force measuring cell CR 10000-1Q1, Nominal load 10000 kg / 100 kN
Regular price
285.00 € (ex VAT)
Description
- RoHS compliant
- Area of application: Measuring mass as well as compressive force
- Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test stands
Technical Data
| Weighing capacity [Max] | 10000 kg |
| Measuring range force [Max] (N) | 100 kN |
| Design | Bending ring |
| Directions of force | compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,05% |
| Load cell OIML class | C1 |
| Load cell - Resolution (verifiable) | 1000e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | steel, stainless |
| Load cell connection | 4-wire |
| Cable length | 10 m |
