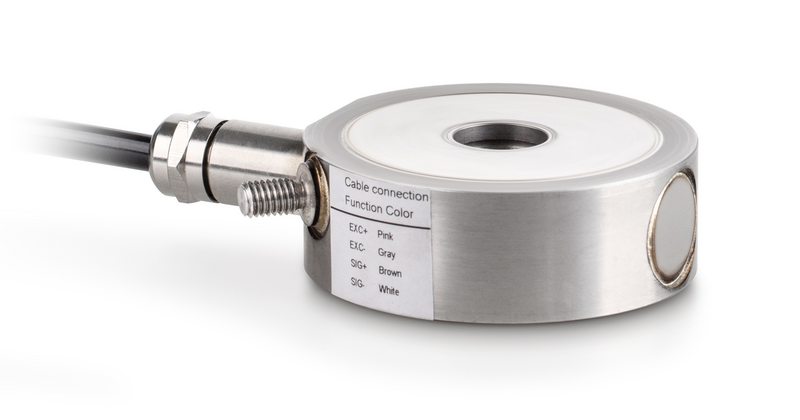

Load/force measuring cell CR 130-3P1, Nominal load 130 kg / 1,3 kN
Regular price
980.00 € (ex VAT)
Description
- RoHS compliant
- Area of application: Measuring mass as well as compressive force
- Suitable for weighbridges, handing scales, silo scales and other types of balances, test stands, etc.
Technical Data
| Weighing capacity [Max] | 130 kg |
| Measuring range force [Max] (N) | 1,3 kN |
| Design | Bending ring |
| Directions of force | compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,023% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 1 mV/V |
| IP protection - complete device | IP68 |
| Material | steel, stainless |
| Load cell connection | 4-wire |
| Cable length | 3 m |
| Mounting - force application | Thrust piece D=15 in bore (customer side) |
| Mounting - force dissipation | 3 × threaded hole M5 |
