Sauter

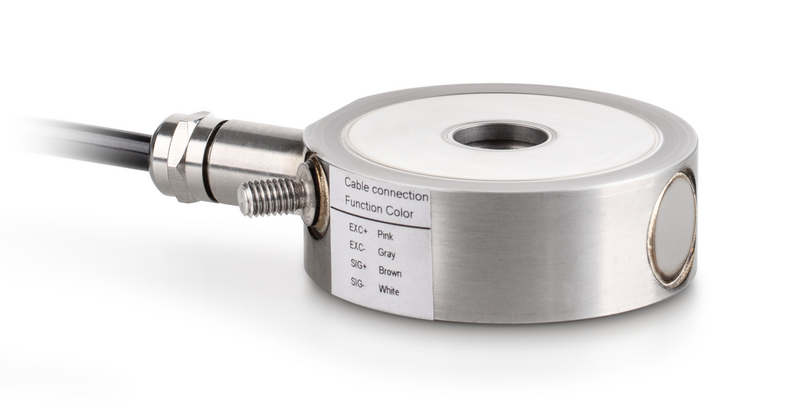

Load/force measuring cell CR 2000-3P1, Nominal load 2000 kg / 20 kN

SKU: CR 2000-3P1
860.00 € (ex VAT)

Description

  • RoHS compliant
  • Area of application: Measuring mass as well as compressive force
  • Suitable for weighbridges, handing scales, silo scales and other types of balances, test stands, etc.

    Technical Data

    Weighing capacity [Max] 2000 kg
    Measuring range force [Max] (N) 20 kN
    Design Bending ring
    Directions of force compression
    Measuring applications force, mass
    Load cell - Combined error 0,023%
    Load cell OIML class C3
    Load cell - Resolution (verifiable) 3000 e
    Load cell - Y-value 10000
    Load cell - characteristic value - nominal 2 mV/V
    IP protection - complete device IP68
    Material steel, stainless
    Load cell connection 4-wire
    Cable length 6 m
    Mounting - force application Pressure piece CE P244022 or load corner CE P244021
    Mounting - force dissipation 3 × threaded hole M6
