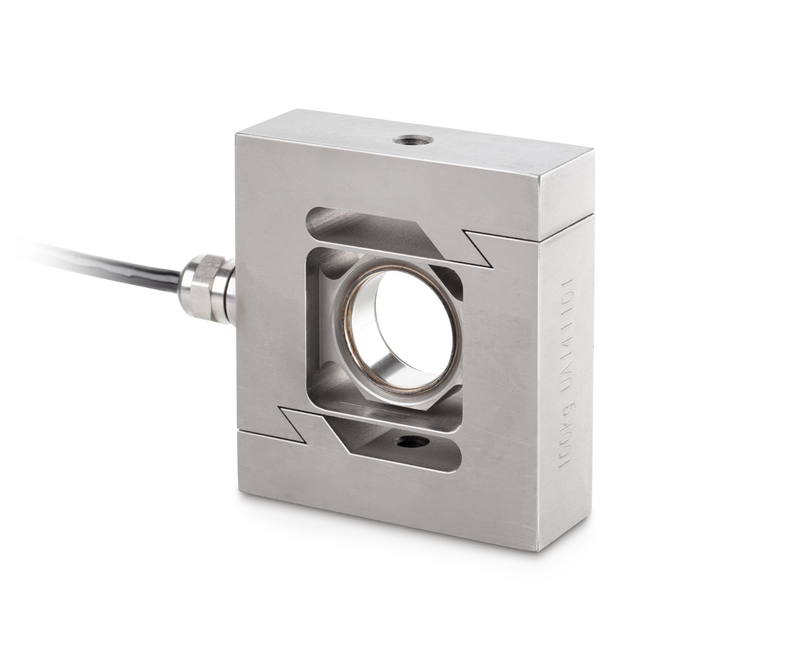

Load/force measuring cell CS 100-3P2, Nominal load 100 kg / 1 kN
Regular price
460.00 € (ex VAT)
-
Description
- RoHS compliant
- Area of application: Measuring mass as well as compressive force
- Suitable for hanging scales, silo scales, force test stands and various other balances
Technical Data
| Weighing capacity [Max] | 100 kg |
| Measuring range force [Max] (N) | 1 kN |
| Design | "S" shaped cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,023% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 12000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | steel, stainless |
| Load cell connection | 4-wire |

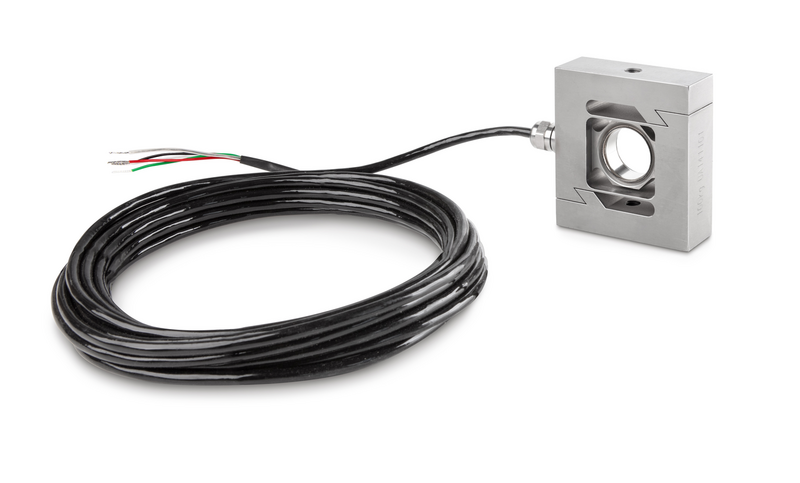

| Cable length | 6 m |
| Mounting - force application | Threaded hole M8 |
| Mounting - force dissipation | Threaded hole M8 |
