Description
- High precision (comprehensive error 0,05% F.S.)
- RoHS compliant
- Area of application: Tensile and compressive applications, mass and force measurement
- Suitable for force test stands, hanging scales, silo scales and various other balances
Technical Data
| Weighing capacity [Max] | 2 kg |
| Measuring range force [Max] (N) | 20 N |

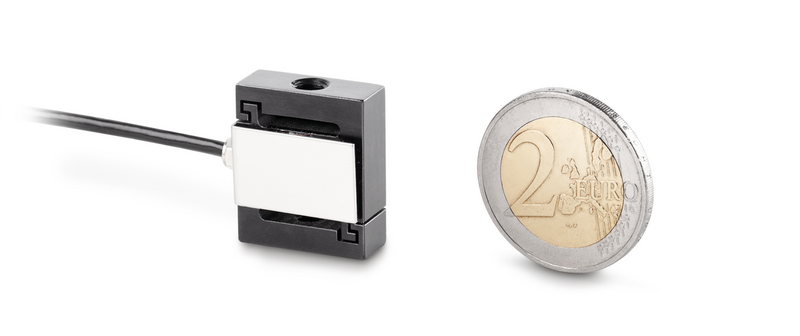

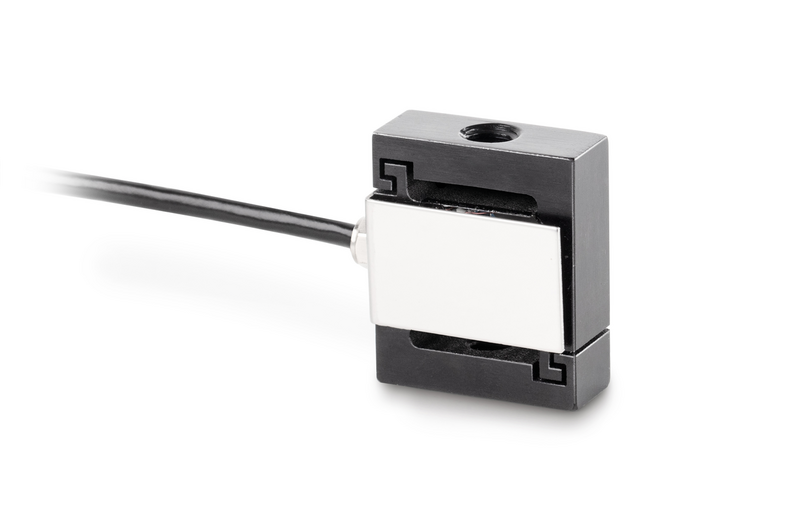

| Design | "S" shaped cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,05% |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP65 |
| Material | steel, stainless |

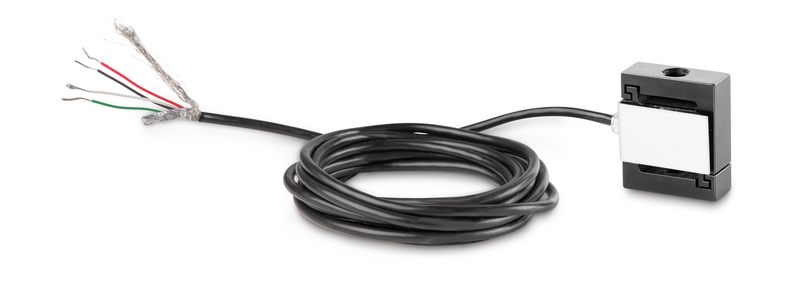

| Load cell connection | 4-wire |
| Cable length | 2 m |
| Mounting - force application | Threaded hole M3 |
| Mounting - force dissipation | Threaded hole M3 |
