Overview

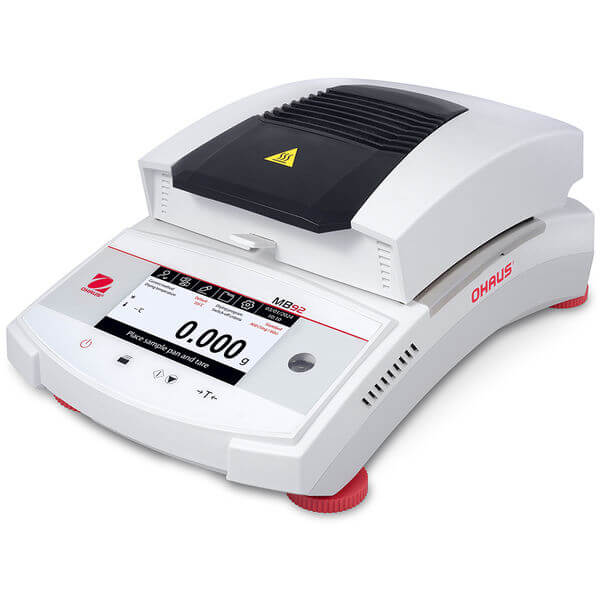

The new MB92 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. Ideal for users demanding a higher level of performance on both the laboratory and production floor, offering greater data security and integrity with password protection.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3" capacitive touch screen
Operation
Internal power supply with power cord (included)
Communication
RS232, USB device, USB host
Construction
Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
Design Features
Eight shut-off criteria (manual, timed, A10, A30, A60, A90, A160, free mg/s), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 200 results for all methods, 40-200℃ heating range, multiple operational languages
Specifications
| Maximum Capacity | 90 g |
| Readability Moisture Content | 1 mg/0.01% |
| Pan Size | 3.5 in (90 mm) |
| Heater Type | Carbon fiber |
| Communication | USB device; RS232; USB Host |
| Recommended Moisture Content MC% | 0.5 % - 100 % |
| Adjustment | Temperature Adjustment - Mechanical (100℃, 160℃); Weight Adjustment - External (50g) |
| Dimensions | 13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW) |
| Display | 4.3” capacitive touch screen |
| Display Results | RG%; Temperature; Drying Curve; DC%; Time; Method Name; Statistics; MC%; Weight |
| Heating Profiles | Ramp; Standard; Step; Fast |
| ID Management | Sample Name; Sample ID; Batch ID |
| In-Use Cover | Included |
| Moisture Range | 0.01 % – 100 % |
| Net Weight | 9.5 lb (4.3 kg) |
| Operating Range (Temp.) | 10 °C – 40 °C |
| Operation Instructions | Live Drying Curve; On-screen Instruction |
| Repeatability | 0.08% (3g sample); 0.015% (10g sample) |
| Shut-Off Criteria | Timed; 5 Auto; Manual; Custom - User Set Weight Loss/Time |
| Status Light | Multi-color status light |
| Stored Results | 200 |
| Temperature Range | 40 °C – 200 °C |
| Test Library | 20 |
