GENERAL FEATURES

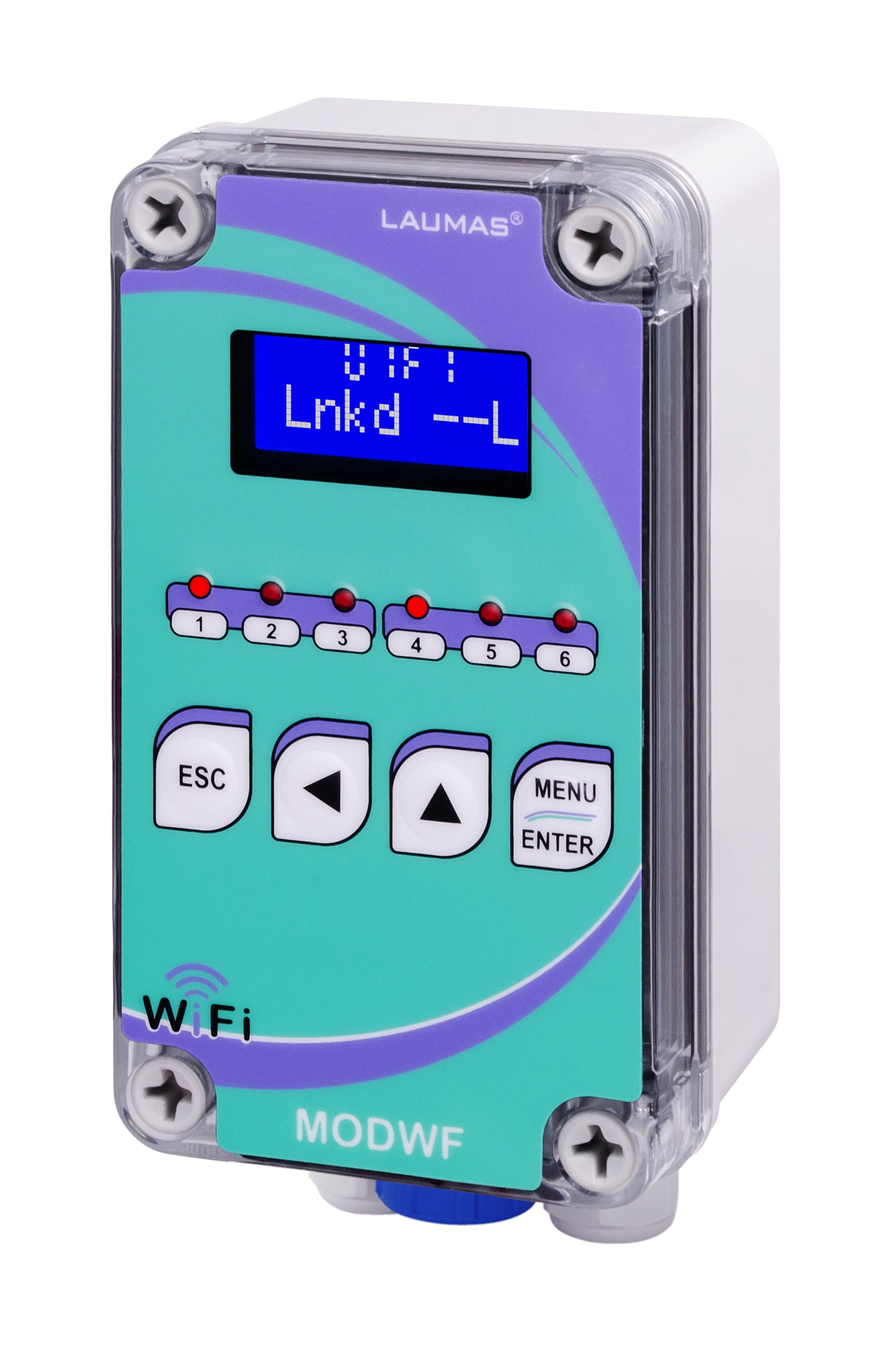

Transceiver into IP67 with backlit LCD display, 38x16 mm, two-line by eightdigit (5 mm height). Four-key keypad for the system calibration. Six indicator LED. 3 M16x1.5 cable glands. Dimensions: 80 x 170 x 65 mm mm (centre distance 120x60 mm).
WiFi communication interface device between two serial devices.- Wifi module for wireless connection via Modbus RTU, Laumas ASCII protocol
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- Connectable to others MODWF devices devices and W series Laumas instruments with OPZW1RADIO optional
- Wall mounting
- A/D converter - 24bit (16000000 points) 4.8 kHz
- Display range 999999
Optional features:
- IP67 box version
- Rechargeable internal/external battery
